VD2.97IP1000RI - P2.976 Indoor Production

VD2.97IP1000RI - P2.976 Indoor Production

Regular price
Regular price Sale price
Sale Sold out

This product is discontinued



Module Information

  • Pixel Pitch (mm): 2.976
  • Pixel Density (Dots/m2): 112,896
  • LED: SMD1921 3-in-1
  • Size (W * H * D mm): 500 * 250 * 14.5
  • Resolution: 168 * 84

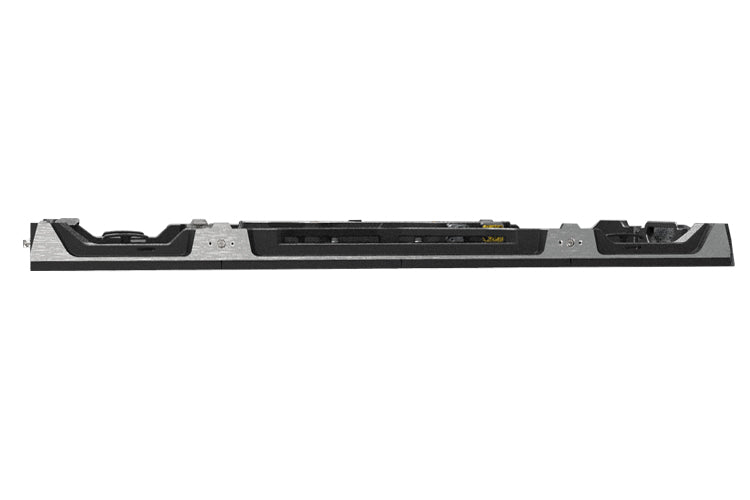

Cabinet Information

  • Size (W * H * D mm): 500 * 1,000  * 65
  • Resolution: 168 * 336
  • Area (m2):  0.5
  • Weight (Kg): 11
  • Planeness (mm): ≤ 1
  • Materials: Die-cast Aluminium
  • Protection Rating: IP20
  • Life Span (hrs): 80,000
  • Maintenance: LED Panel - Front / Rear Service, Cabinet - Rear Service

Optical Specification

  • Brightness (cd/m2): 800 - 1,200
  • Colour Temperature (K): 3,000 - 10,000 Adjustable
  • Horizontal Angle: 140°
  • Vertical Angel: 120°
  • Pixel Centre Offset: ≤ 3%
  • Brightness Uniformity: ≥ 97%
  • Chromaticity Uniformity: within +/- 0.003 Cx, Cy
  • Contrast Ratio: 3000:1

Electric Specification

  • Input Voltage: 100 - 240V AC 50/60 Hz
  • Average Power Consumption (W/m2) : ≤ 240
  • Max Power Consumption (W/m2) : ≤ 560
  • Power Connection: Seetronic powerKON® In/Out

Image Process

  • Scan Mode: 1/16
  • Refresh Rate (Hz): ≥ 2K
  • Data Connection: Seetronic etherKON®

Required Accessories

  • Video Controller
  • Hanging Beam
  • Road Case (optional)

Engineering and safe working for RI/RO free standing frame

Engineering and safe working for RI/RO hanging bars

Standing Installation
