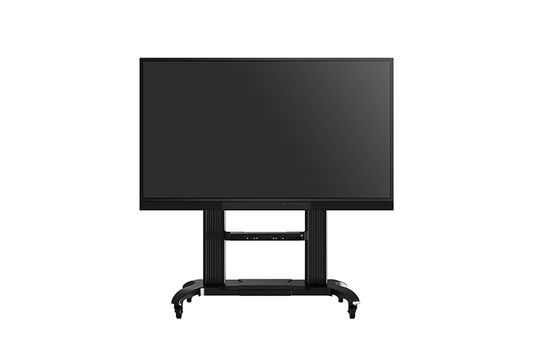

Small Pitch TV
Model VD0.9IIDXTV VD1.2IIDXSTV VD1.2IIDXTV VD1.5IIDXSTV VD1.5IIDXTV
Pixel Pitch (mm) 0.9375 1.25 1.25 1.5625 1.5625
Module Resolution 160x360 120x270 120x270 96x216 96x216
Module Size (mm) 150x337.5
Brightness (cd/m2) 600
Cabinet Size (mm) 600x337.5
Weight (kg) 6.4
Material Die-cast Aluminium
Refresh Rate (Hz) 3,840
Scan Mode 1/30
Power (W/m2) Avg./Max. 170/570 150/390 150/390 135/330 135/330
IP Rating IP20
Maintenance Front Service
