VD8OI - P8 Outdoor Installation

Event Pixels


Module Information

  • Pixel Pitch (mm): 8
  • Pixel Density (Dots/m2): 15,625
  • LED: SMD3535 3-in-1
  • Size (W * H * D mm): 256 * 128 * 25
  • Resolution: 32 * 16

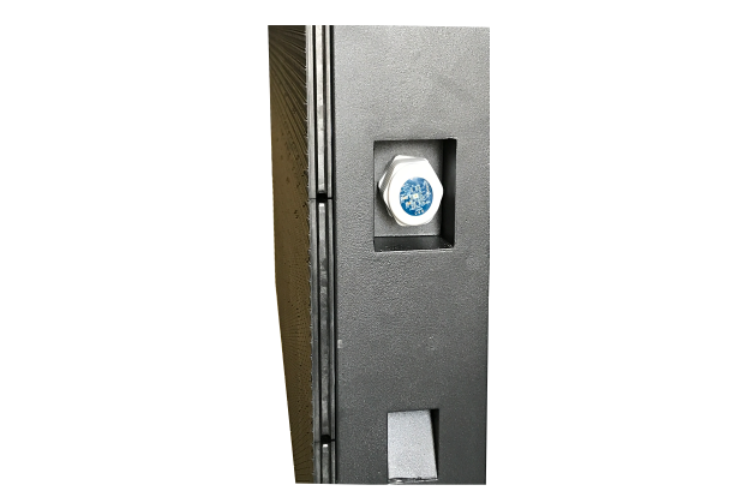

Cabinet Information

  • Size (W * H * D mm): 1024 * 1024 * 150 / Ratio of Module
  • Resolution: 128 * 128 / Ratio of Module
  • Area (m2):  1.048
  • Weight (Kg/m2): 55 (approx)
  • Planeness (mm): ≤ 1
  • Materials: Steel, Aluminium (optional)
  • Protection Rating: LED Panel - IP65, Cabinet - IP54
  • Life Span (hrs): 50,000
  • Maintenance: Rear Service

Optical Specification

  • Brightness (cd/m2): ≥ 5,000
  • Colour Temperature (K): 3,000 - 10,000 Adjustable
  • Horizontal Angle: 140°
  • Vertical Angel: 140°
  • Pixel Centre Offset: ≤ 3%
  • Brightness Uniformity: ≥ 97%
  • Chromaticity Uniformity: within +/- 0.003 Cx, Cy
  • Contrast Ratio: 3000:1

Electric Specification

  • Input Voltage: 100 - 240V AC 50/60 Hz
  • Average Power Consumption (W/m2) : ≤ 400
  • Max Power Consumption (W/m2) : ≤ 700

Image Process

  • Scan Mode: 1/4
  • Refresh Rate (Hz): ≥ 1,920

Required Accessories

  • Video Controller
  • Hanging Beam
  • Brightness Sensor (optional)
  • Seetronic PowerKON® IP65 In/Out (optional)
  • Seetronic EtherKON® IP65 In/Out (optional)
