| Model |
POSTERFLIP2.5
|
Physical
|
|
| Pixel Pitch |
2.5 mm |
| Display Size |
640mm x 1920mm |
| Pixels |
256 x 768 |
| Module Size |
320mm x 160mm (24 Per Cabinet) |
| Module Pixels |
128 x 316 |
| Cabinet Weight |
51kg (Including Base) |
| Unit Contents |
2 Displays in Roadcase |
| Combined |

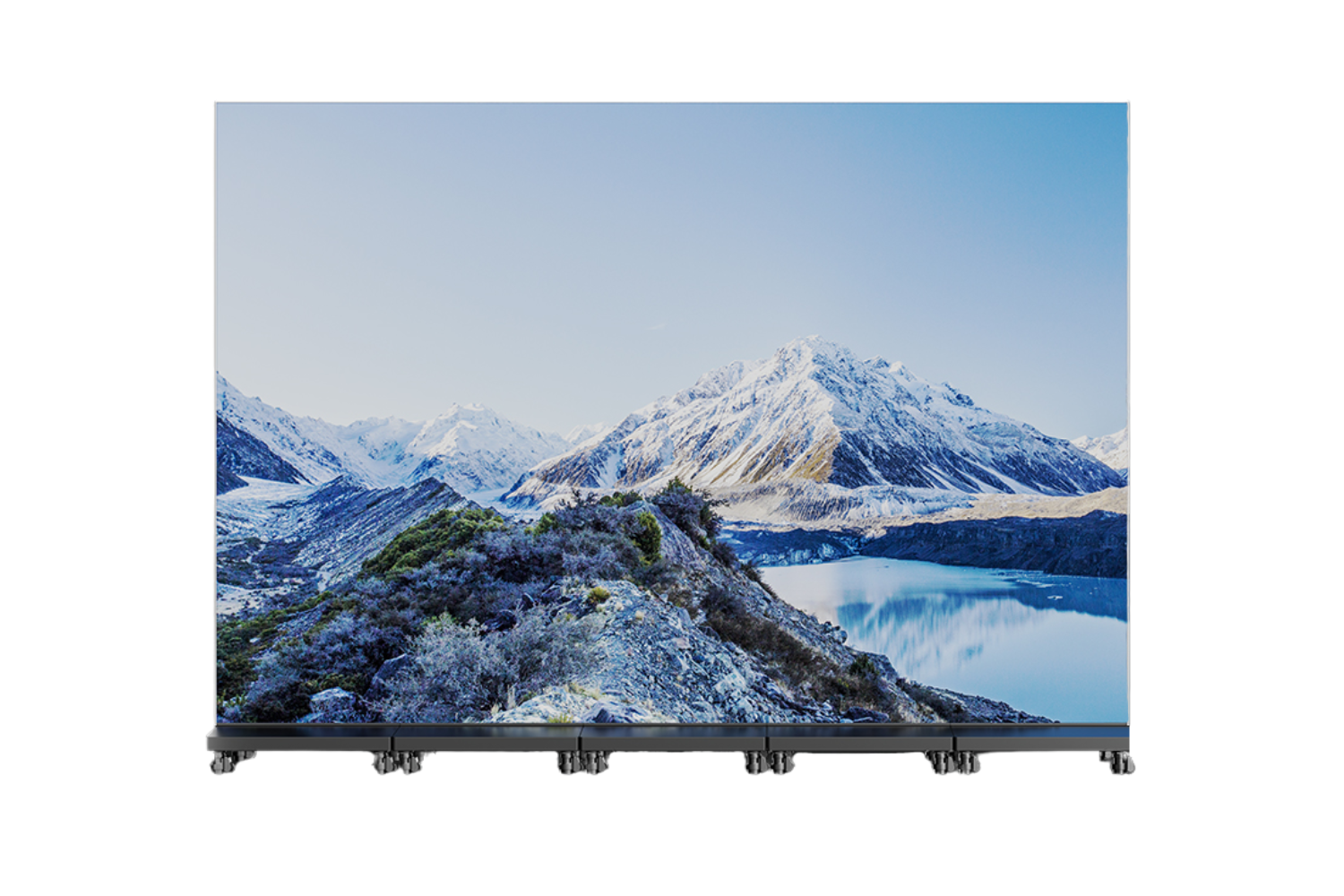

5 Displays Create 16:9 Ratio (5-in-1) |
| Combined Display Size |
3200mm x 1920mm |
| Combined Pixels |
1280 x 768 |
| Combined Weight |
255kg |
| Material |
Die-cast Aluminium |
| Maintenance |
Rear |
Optical
|
|
| Brightness (nit) |
0~550 |
| Greyscale (bit) |
14 |
| Refresh Rate (Hz) |
3840 |
| Contrast |
4000:1 |
| Colour Temperature |
8000K (Standard), 3200~12000K (Adjustable) |
Electrical
|
|
| Avg. Power Consumption |
165 W Per Display |
| Max. Power Consumption |
500 W Per Display |
| Cabinet Power Requirements |
AC176-240V, 50/60Hz |
| Power Connection |
PowerCon (Input) |
| Data Connections |
1 x USB 2.0, 1 x RJ45 ,
HDMI (Input + Output), 2.4 GHz Wifi |
Environmental
|
|
| Operating Temperature |
0~40˚ |
| Operating Humidity |
10~65% (non-condensing) |
| Storage Temperature |
-20~50˚ |
| Storage Humidity |
10~65% (non-condensing) |
| IP Protection |
IP30 |
