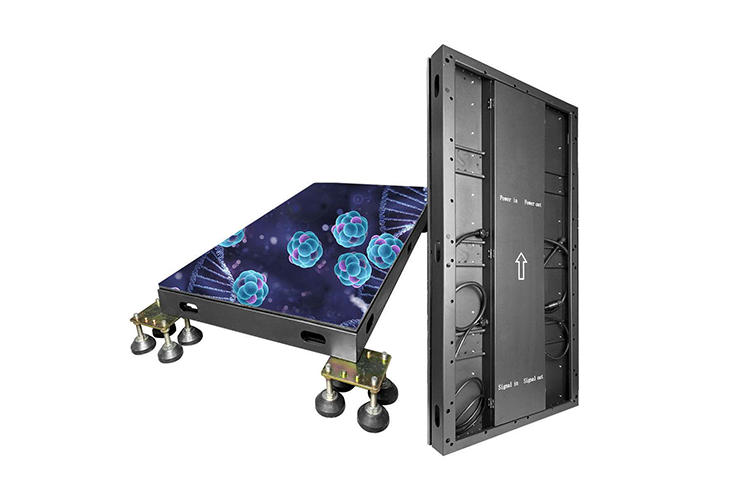

VD3.91LI1000 - P3.91 Dance Floor

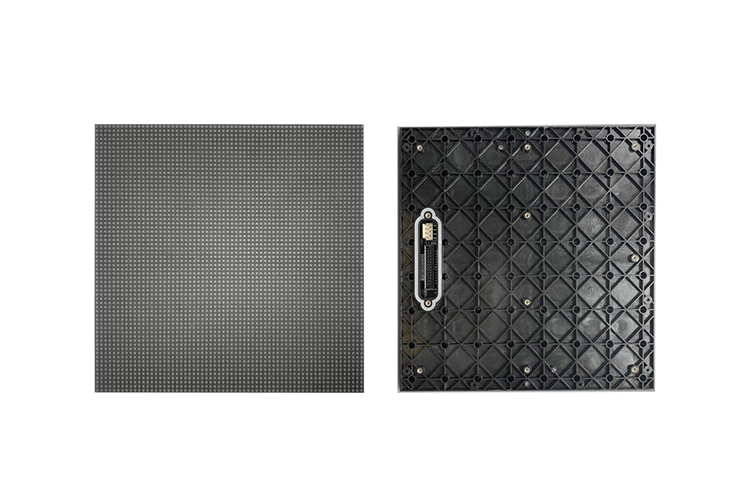

Module Specification

• Pixel pitch: 3.91mm
• LED: Anplight SMD1921
• Pixel density: 65536/m²
• Scan mode: 1/16

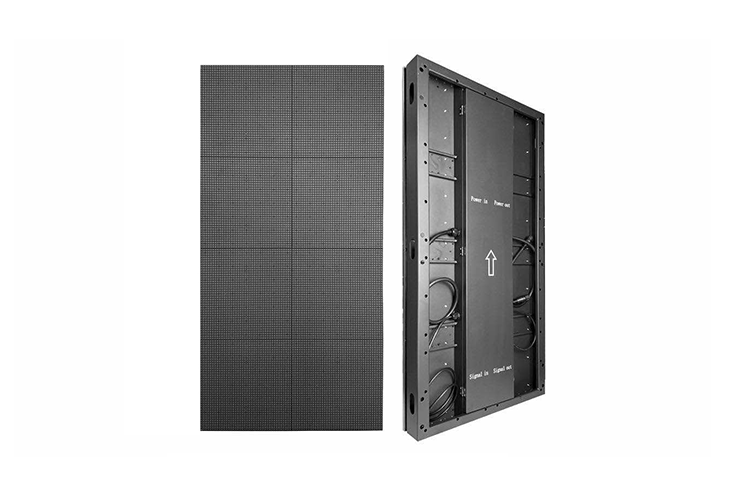

Cabinet Specification

• Resolution: 128*256

• Greyscale: >=16 bit
• Refresh rate: >= 3840Hz
• Viewing angle: 120° (horizontal), 120° (vertical)
• Module size: 250x250mm
• Weight: 23kg
• Brightness: 2200 cd/m²
• Driver IC: 2038S
• Power consumption: 800W (max), 350W (average)
• Frame rate: 60Hz
• Operating temperature: -10°C to 50°C
• Storage temperature: -40°C to 85°C
• Control mode: Synchronisation with PC
• Lifespan: > 100000 hours
• Voltage: 220-240V, 50-60Hz
• MTBF: 5000 hours
• IP rating: Front IP65, Rear IP54
