VD4.8IP1000RI - P4.81 Indoor Production

Module Information

• Pixel Pitch (mm): 4.81
• Pixel Density (Dots/m²): 43,264
• LED: SMD2020 3-in-1
• Size (W * H * D mm): 500 * 250 * 14.5
• Resolution: 104 * 52

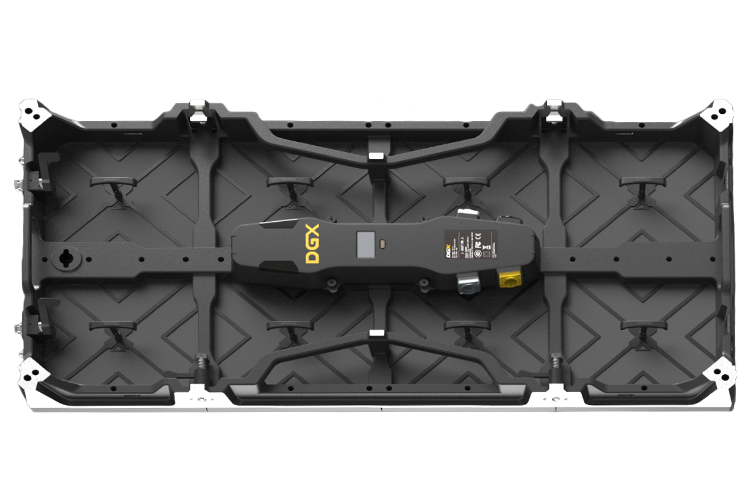

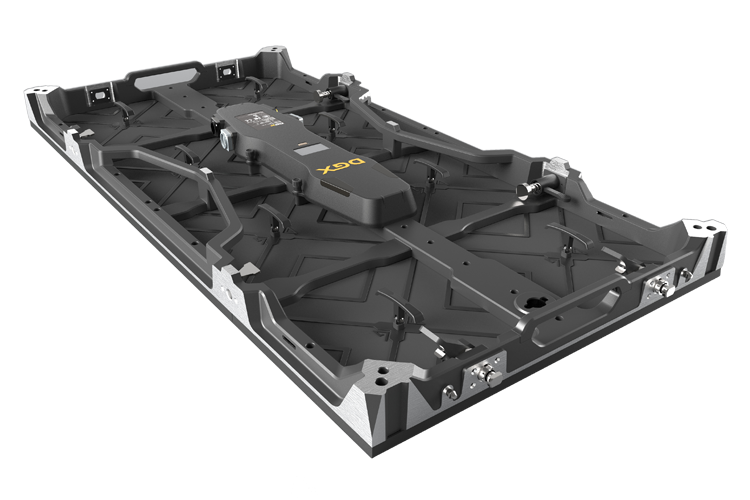

Cabinet Information

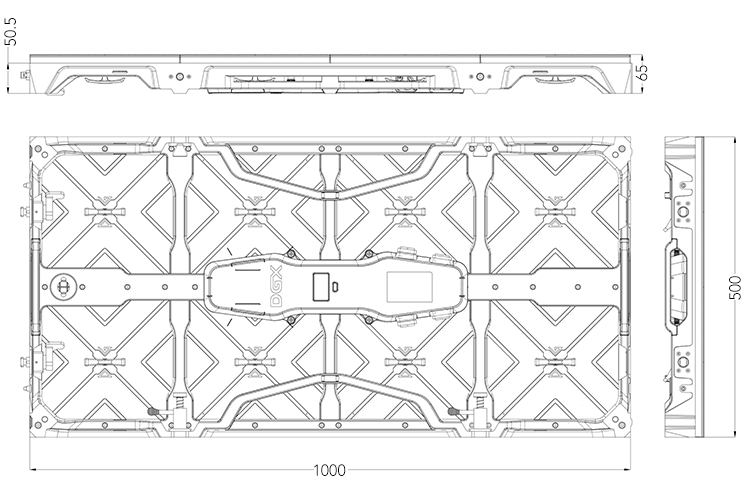

• Size (W * H * D mm): 500 * 1,000  * 65

• Resolution: 104 * 208
• Area (m²):  0.5
• Weight (Kg): 11
• Planeness (mm): ≤ 1

• Materials: Die-cast Aluminium

• Protection Rating: IP20
• Life Span (hrs): 80,000
• Maintenance: LED Panel - Front / Rear Service, Cabinet - Rear Service


Optical Specification

• Brightness (cd/m²): 800 - 1,200

• Colour Temperature (K): 3,000 - 10,000 Adjustable
• Horizontal Angle: 140°
• Vertical Angel: 120°
• Pixel Centre Offset: ≤ 3%
• Brightness Uniformity: ≥ 97%
• Chromaticity Uniformity: within +/- 0.003 Cx, Cy
• Contrast Ratio: 3000:1

Electric Specification

• Input Voltage: 100 - 240V AC 50/60 Hz
• Average Power Consumption (W/m²) : ≤ 220

• Max Power Consumption (W/m²) : ≤ 540

• Power Connection: Seetronic powerKON® In/Out

Image Process

• Scan Mode: 1/13
• Refresh Rate (Hz): ≥ 2K

• Data Connection: Seetronic etherKON®


Required Accessories

• Video Controller
• Hanging Beam
• Road Case (optional)
