Module Information
- Pixel Pitch (mm): 6
- Pixel Density (Dots/m2): 27,777
- LED: SMD3535 3-in-1
- Size (W * H * D mm): 192 * 192 * 17
- Resolution: 32 * 32

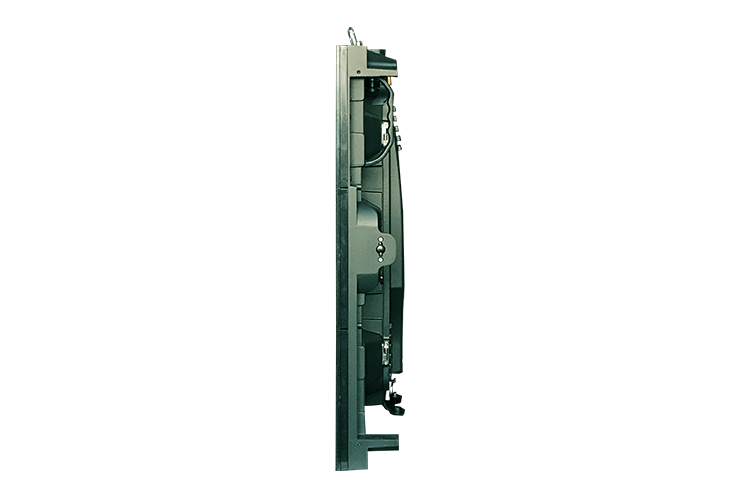

Cabinet Information

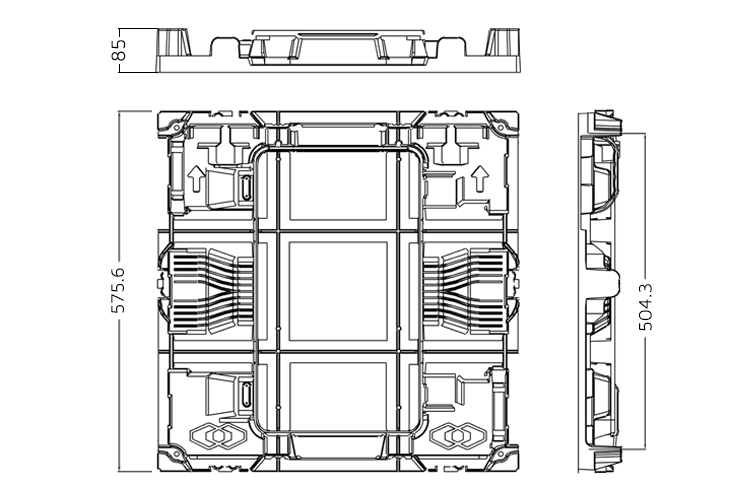

- Size (W * H * D mm): 576 * 576 * 85
- Resolution: 96 * 96
- Area (m2): 0.331776
- Weight (Kg): 9.5
- Planeness (mm): ≤ 1
- Materials: Die-cast Aluminium
- Protection Rating: IP64
- Life Span (hrs): 50,000

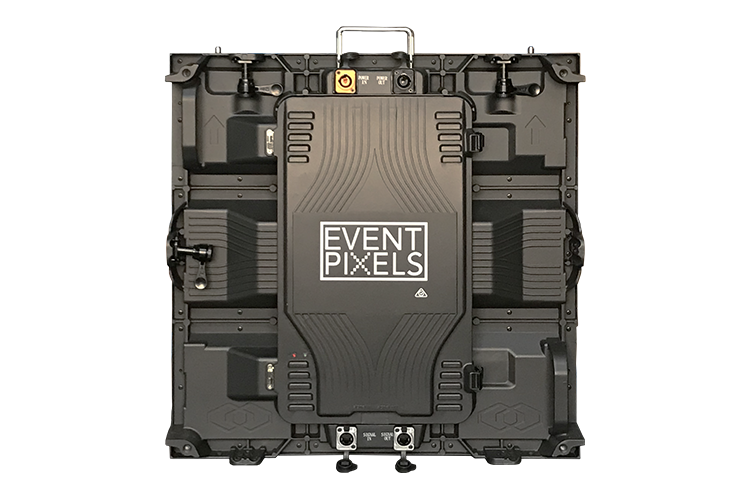

- Maintenance: Rear Service
Optical Specification
- Brightness (cd/m2): ≥ 5,000
- Colour Temperature (K): 3,000 - 10,000 Adjustable
- Horizontal Angle: 140°
- Vertical Angel: 140°
- Pixel Centre Offset: ≤ 3%
- Brightness Uniformity: ≥ 97%
- Chromaticity Uniformity: within +/- 0.003 Cx, Cy
- Contrast Ratio: 3000:1
Electric Specification
- Input Voltage: 100 - 240V AC 50/60 Hz
- Average Power Consumption (W/m2) : ≤ 360
- Max Power Consumption (W/m2) : ≤ 600
- Power Connection: Seetronic powerKON® IP65 In/Out
Image Process
- Scan Mode: 1/8
- Refresh Rate (Hz): ≥ 1,920
- Data Connection: Seetronic etherKON® IP65
Required Accessories
- Video Controller
- Hanging Beam
- Road Case (optional)
