Module Information
- Pixel Pitch (mm): 2.5
- Pixel Density (Dots/m2): 160,000
- LED: SMD2020 1R1G1B LED
- Size (W * H mm): 270 * 202.5
- Resolution: 108 * 81
Cabinet Information

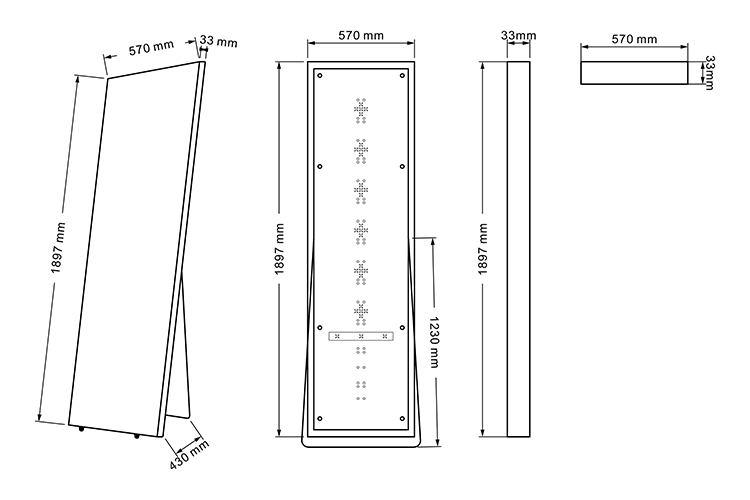

- Size (W * H * D mm): 1,897 * 570 * 33
- Screen Size (W * H mm): 1822.5 * 540
- Resolution: 216 * 729
- Area (m2): 0.984
- Weight (Kg): 30kg
- Planeness (mm): Adjacent image between ≤ 0.5; module splicing gap ≤ 0.5
- Materials: Aluminium
- Protection Rating: IP20
- Life Span (hrs): 80,000

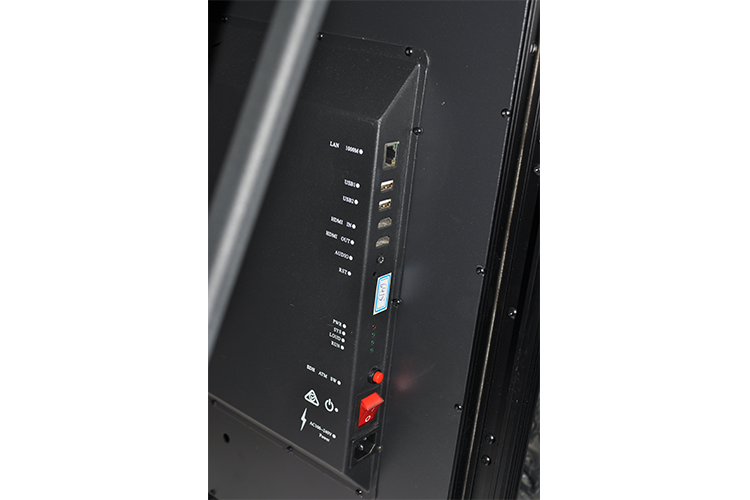

- Maintenance: Rear Service
- Free standing frame included

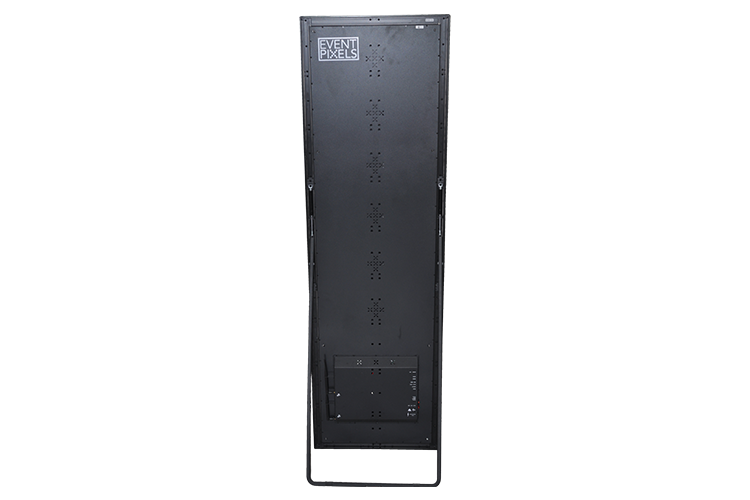

- M8 threads on rear for wall mounting
Optical Specification
- Brightness (cd/m2): 1,100
- Colour Temperature (K):
- Horizontal Angle: 140°
- Vertical Angel: 140°
- Pixel Centre Offset: ≤ 3%
- Brightness Uniformity: ≥ 97%
- Chromaticity Uniformity: within +/- 0.003 Cx, Cy
- Contrast Ratio: 5000:1
Electric Specification
- Input Voltage: 110 - 240V AC 50/60 Hz
- Average Power Consumption (W/m2) : 180
- Max Power Consumption (W/m2) : 600
- Power Connection: IEC
Image Process
- Scan Mode: 1/27
- Refresh Rate (Hz): ≥ 3,840
- Data Connection: WiFi and Ethernet
- Video Input: Internal or DVI
- Internal Control System: Novastar T6
- RF Synchronisation Module included
Accessories
- Road Case
