VD2.5PI

Event Pixels


Module Information

  • Pixel Pitch (mm): 2.5
  • Pixel Density (Dots/m2): 160,000
  • LED: SMD2020 1R1G1B LED
  • Size (W * H mm): 270 * 202.5
  • Resolution: 108 * 81

Cabinet Information

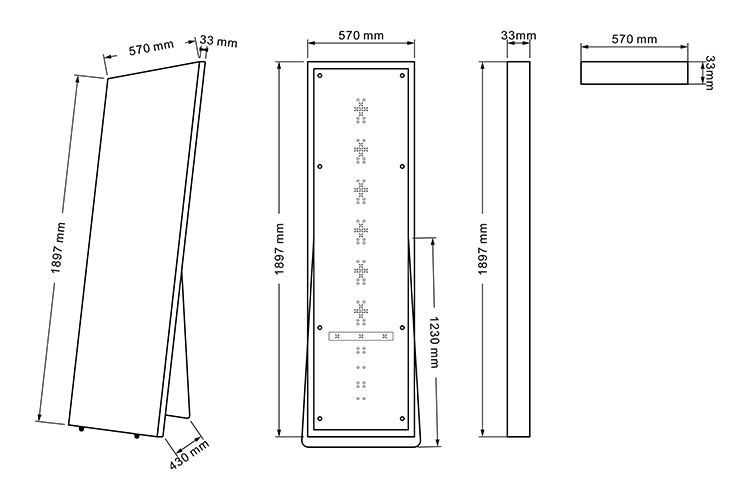

  • Size (W * H * D mm): 1,897 * 570  * 33
  • Screen Size (W * H mm): 1822.5 * 540
  • Resolution: 216 * 729
  • Area (m2):  0.984
  • Weight (Kg): 30kg
  • Planeness (mm): Adjacent image between ≤ 0.5; module splicing gap ≤ 0.5
  • Materials: Aluminium
  • Protection Rating: IP20
  • Life Span (hrs): 80,000

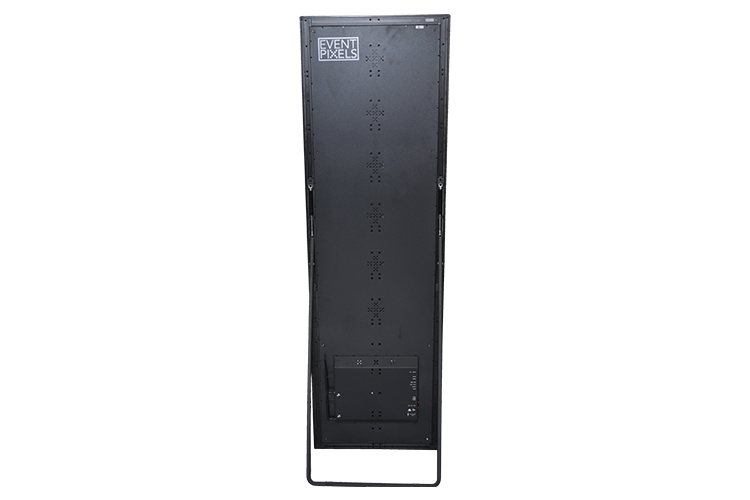

  • Maintenance: Rear Service
  • Free standing frame included
  • M8 threads on rear for wall mounting

Optical Specification

  • Brightness (cd/m2): 1,100
  • Colour Temperature (K):
  • Horizontal Angle: 140°
  • Vertical Angel: 140°
  • Pixel Centre Offset: ≤ 3%
  • Brightness Uniformity: ≥ 97%
  • Chromaticity Uniformity: within +/- 0.003 Cx, Cy
  • Contrast Ratio: 5000:1

Electric Specification

  • Input Voltage: 110 - 240V AC 50/60 Hz
  • Average Power Consumption (W/m2) : 180
  • Max Power Consumption (W/m2) : 600

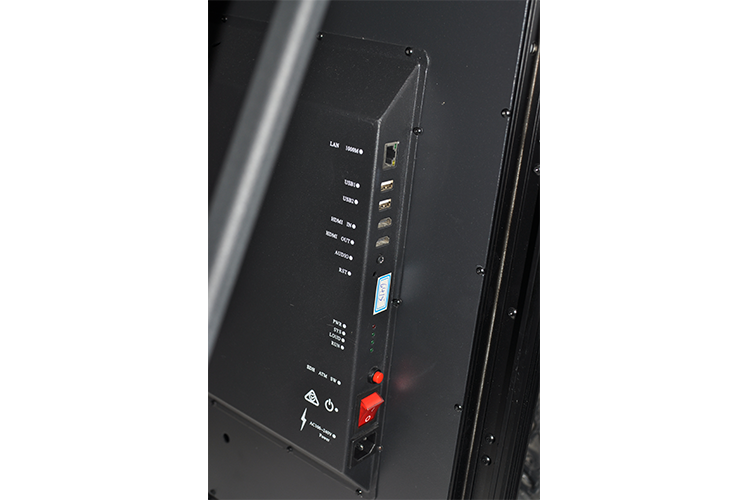

  • Power Connection: IEC

Image Process

  • Scan Mode: 1/27
  • Refresh Rate (Hz): ≥ 3,840
  • Data Connection: WiFi and Ethernet
  • Video Input: Internal or DVI
  • Internal Control System: Novastar T6
  • RF Synchronisation Module included

Accessories

  • Road Case
