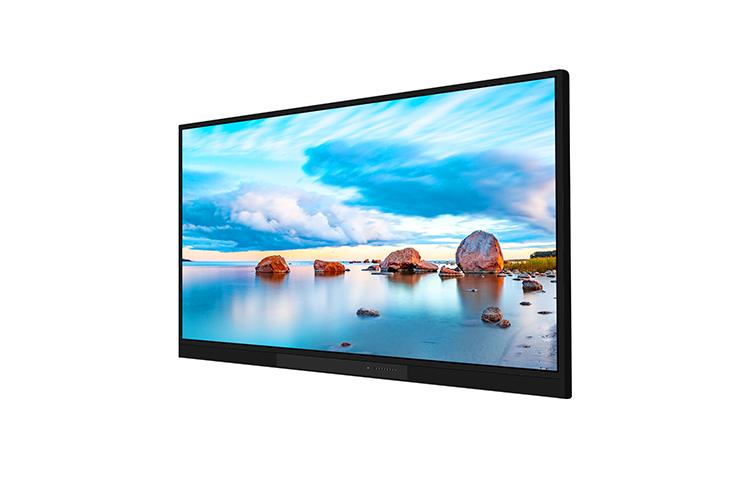

VD0.9IIDXTV - P0.9 Indoor Installation

  • Sale
  • Regular price


Module Information

  • Pixel Pitch (mm): 0.9375
  • Pixel Density (Dots/m2): 1,137,778
  • LED: Mini SMD 4-in-1
  • Size (W * H mm): 150.4 * 337.5
  • Resolution: 160*360

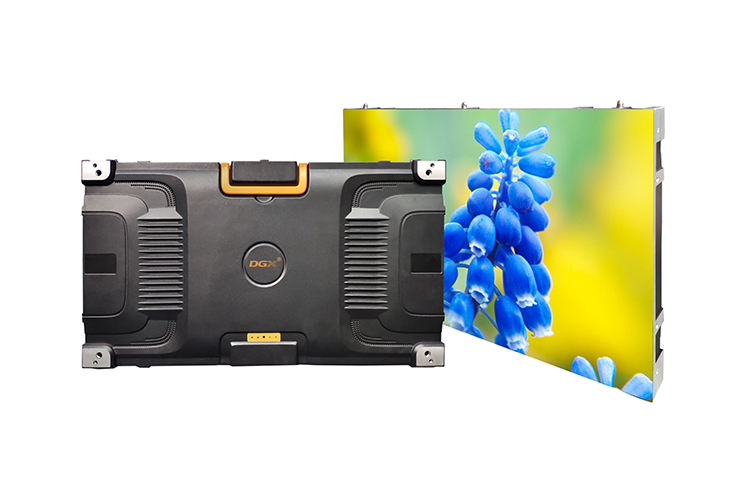

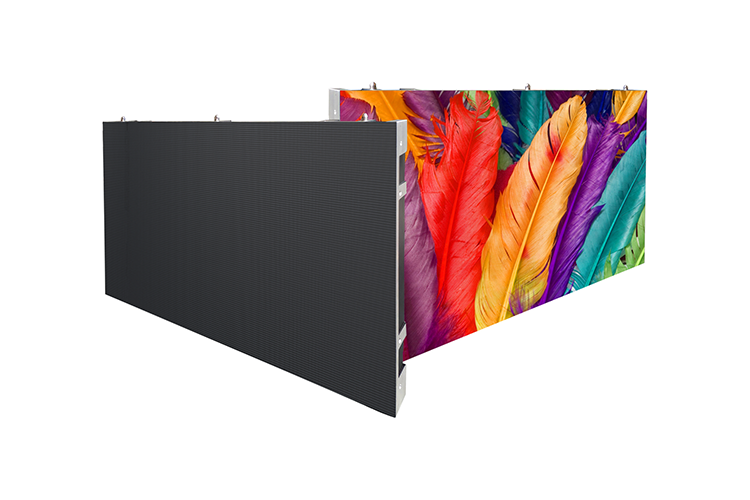

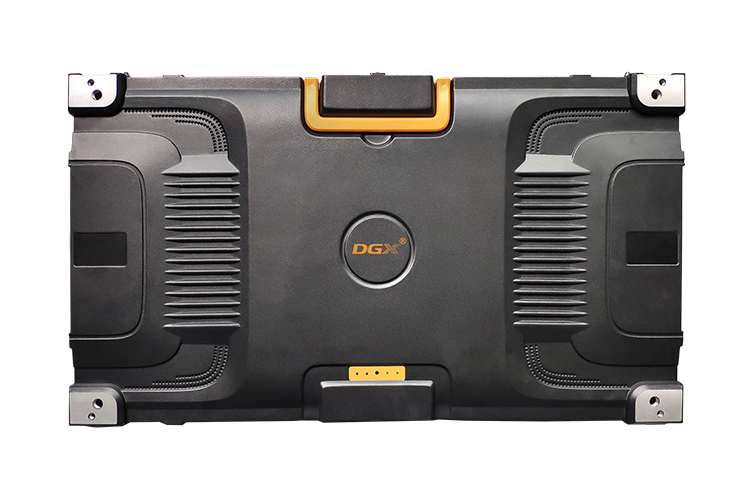

Cabinet Information

  • Size (W * H * D mm): 600 * 337.5 * 50
  • Resolution: 640*360
  • Area (m2):  0.2025
  • Weight (Kg): 6.4
  • Planeness (mm): ≤
  • Materials: Die-cast Aluminium
  • Protection Rating: IP20
  • Life Span (hrs): ≥ 80,000

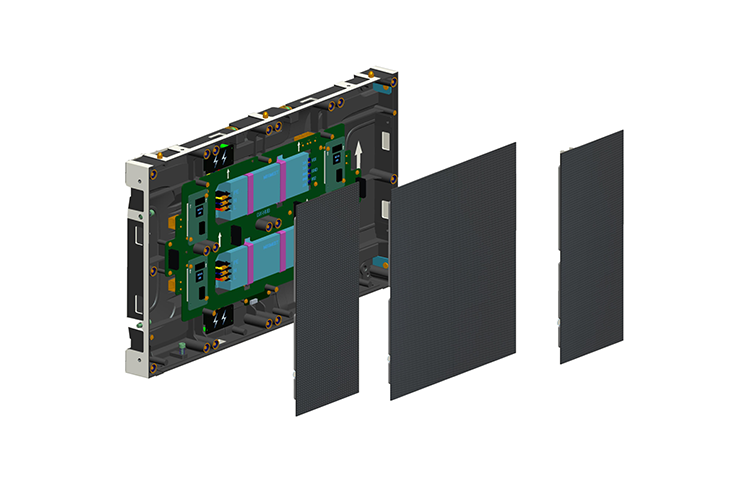

  • Maintenance: Front Service

Optical Specification

  • Brightness(cd/m2): 600
  • Colour Temperature (K): 3,000 - 10,000, Adjustable
  • Horizontal Viewing Angle: 160°
  • Vertical Viewing Angle: 140°
  • Pixel Centre Offset: ≤ 3%
  • Brightness Uniformity: ≥ 97%
  • Chromaticity Uniformity: within +/- 0.003 Cx, Cy
  • Contrast Ratio: 5000:1

Electric Specification

  • Power Supply Input Voltage:100 - 240V AC 50/60 Hz
  • Cabinet Input Voltage: 36 - 75V DC
  • Backup Power Supply: Optional
  • Average Power Consumption (W/m2) : ≤ 170
  • Max Power Consumption (W/m2) : ≤ 570

Image Processing

  • Scan Mode: 1/30
  • Grey Rate (bit): 14/16
  • Refresh Rate (Hz): 3,840
  • Data Connection: RJ45
  • Backup Data Connection:
  • Internal data connection between cabinet
  • Data Storage Capacity (M):
  • Production Data Storage:
  • Correcting Data Storage:

Accessories

  • Video Controller (required)
  • Angle Coupler for curved display (optional)
