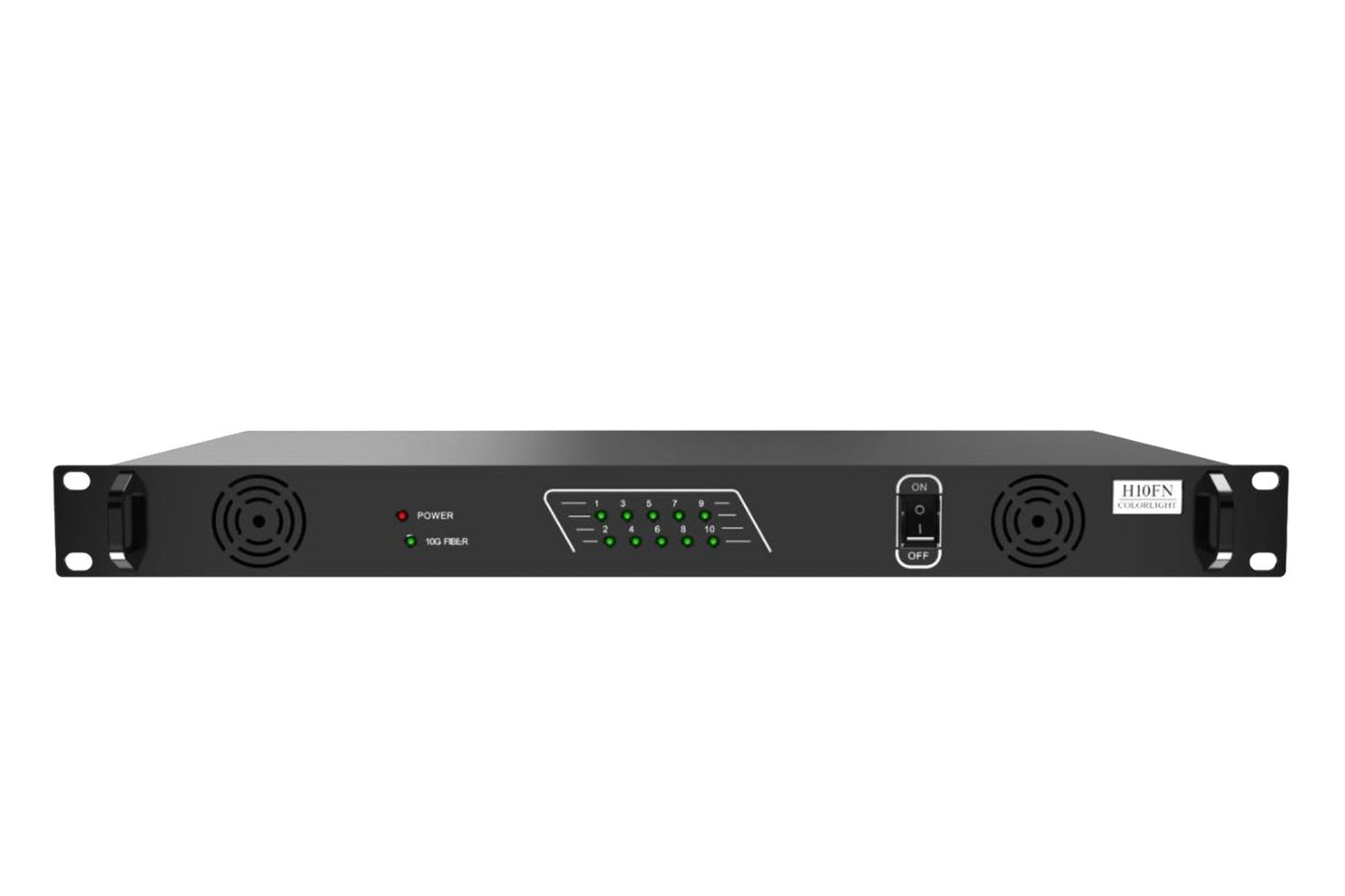

Colorlight CL-H10FN Control Gear

H10FN is an optical fiber transceiver specially designed for LED display.

Features

• One Neutrik opticalCON interface, compatible with LC-LC interface, with transmission speeds up to 10Gb/s

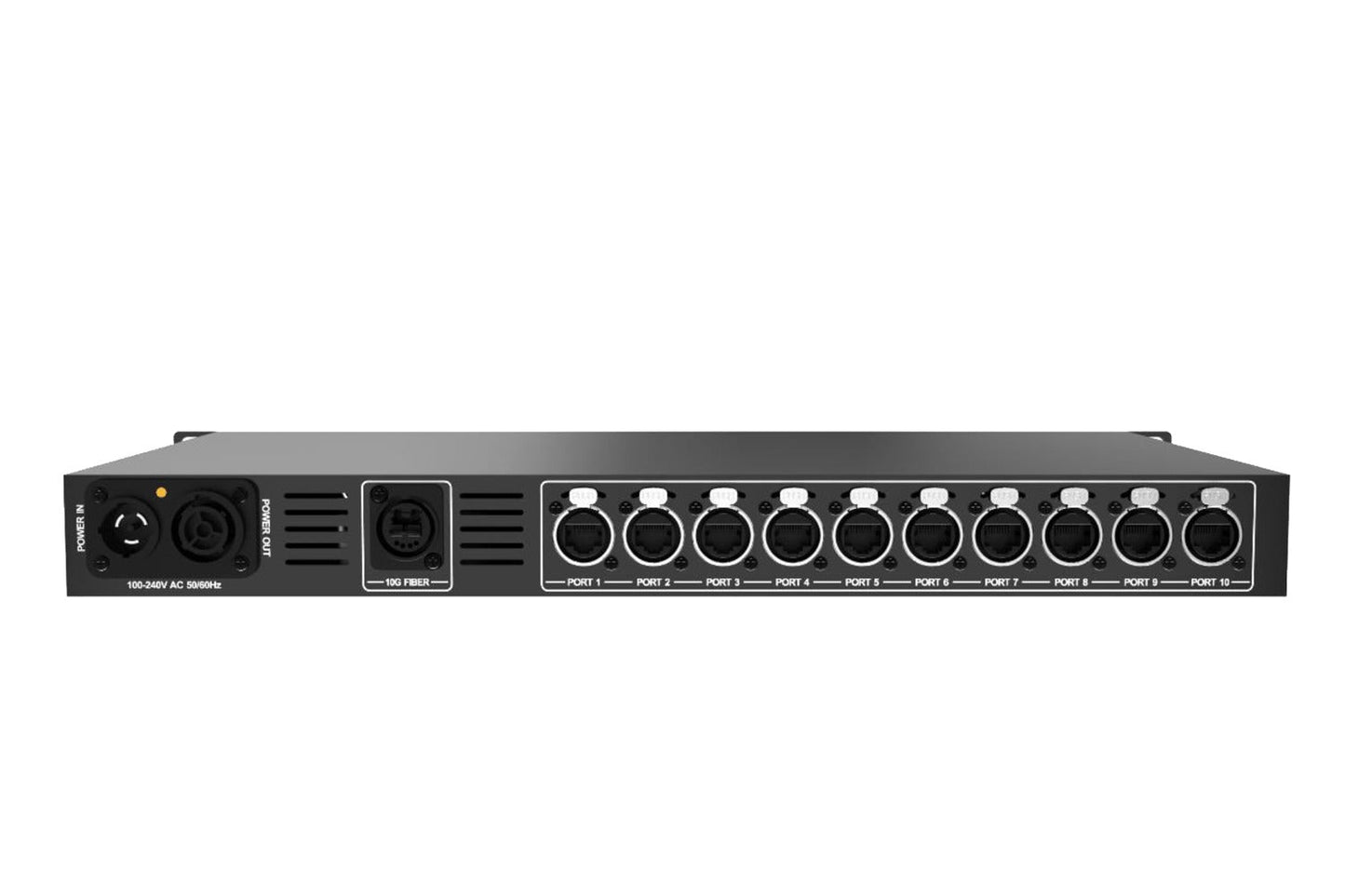

• 10 Neutrik RJ45 Ethernet ports, with a transmission rate of up to 1Gb/s per channel
• Equipped with the SFP module of which the transmission distance is 2km (the SFP module supporting a transmission distance of 20km is optional)

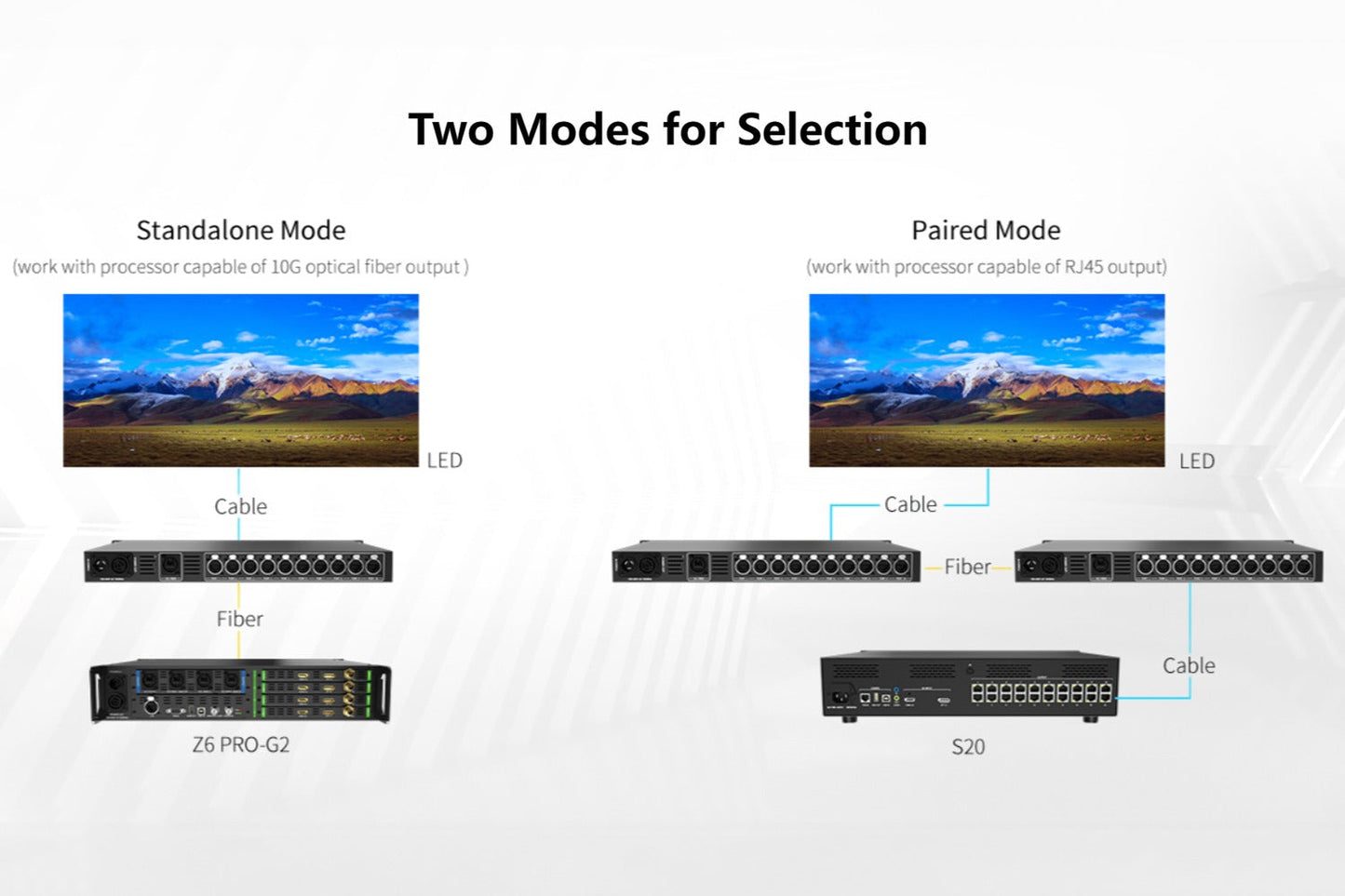

• Support photoelectric conversion
• Hot pluggable
• Single mode twin-core fiber

Download product datasheet
