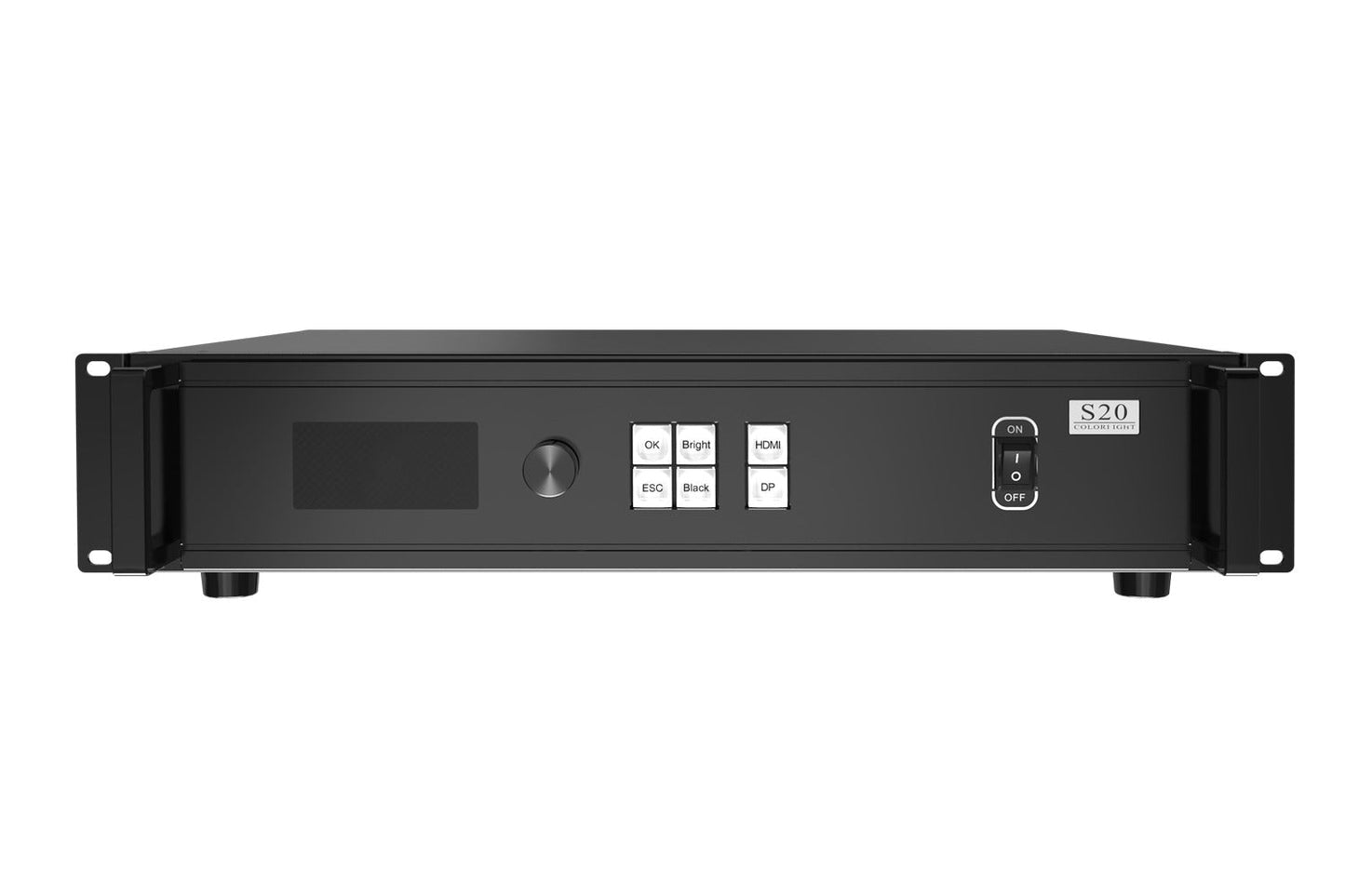

Colorlight CL-S20 Sender

  • Sale
  • Regular price

S20 is a controller possessing powerful video signal receiving capacity. It supports the input of DPI.2 and HDM12.0, and seamless switching between signal sources. A single unit features a loading capacity of up to 8.85 million pixels, with a maximum width or height of 8192 pixels, while a single Ethernet port supports a loading width or height of up to 4096 pixels, and the controller supports signal inputs of up to 4096X2160@60Hz resolution. Thus, S20 allows users to configure ultra-long, ultra-high and ultra-large
screens. S20 supports 20 Gigabit Ethernet outputs, as well as Ethernet port redundancy and controller redundancy. It can not only effectively ensure the display stability of screens, but also provide high-quality image display and flexible screen control.

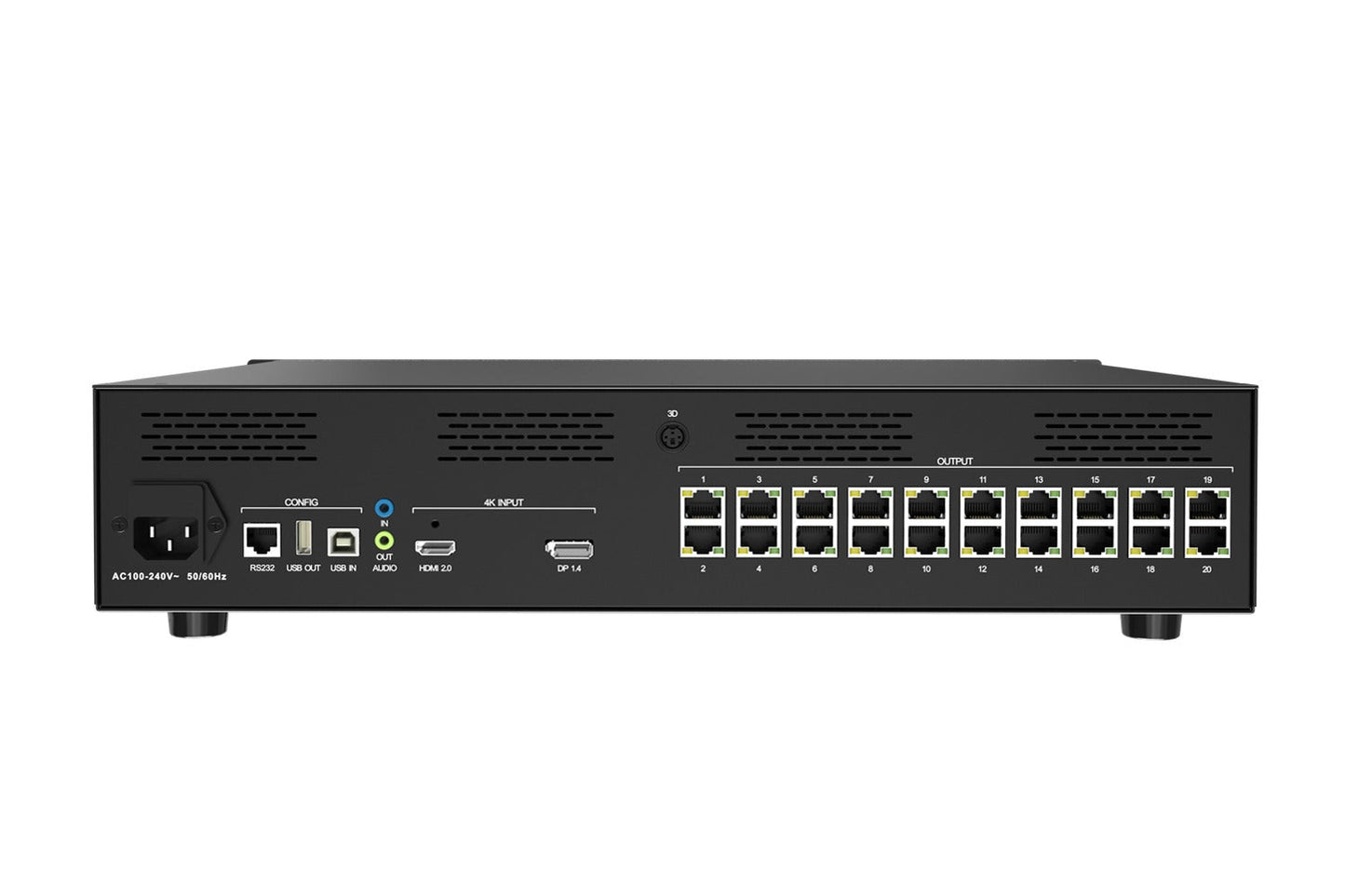

  • Inputs: IXDP 1.2, IXHDMI 2.0
  • Supports seam less switching between signal sources
  • Loading capacity: up to 8.85 million pixels, maximum width or height: 8192 pixels
  • Loading capacity of a single Ethernet port: up to 650 thousand pixels, maximum width or height: 4096 pixels. The loading capacity will reduce when the height exceeds 1280 pixels.
  • In put resolution: up to 4096 x 2160@60Hz, supporting customized setting of resolution within control range.
  • Outputs: 20 Gigabit Ethernet ports, supporting Ethernet port redundancy or controller redundancy
  • Supports USB cascading control and RS232 protocol control
  • Separate audio input and output
  • Supports 3D display (optional)
  • Better gray at low brightness
  • Compatible with all receiver cards and multifunction cards of Colorlight
