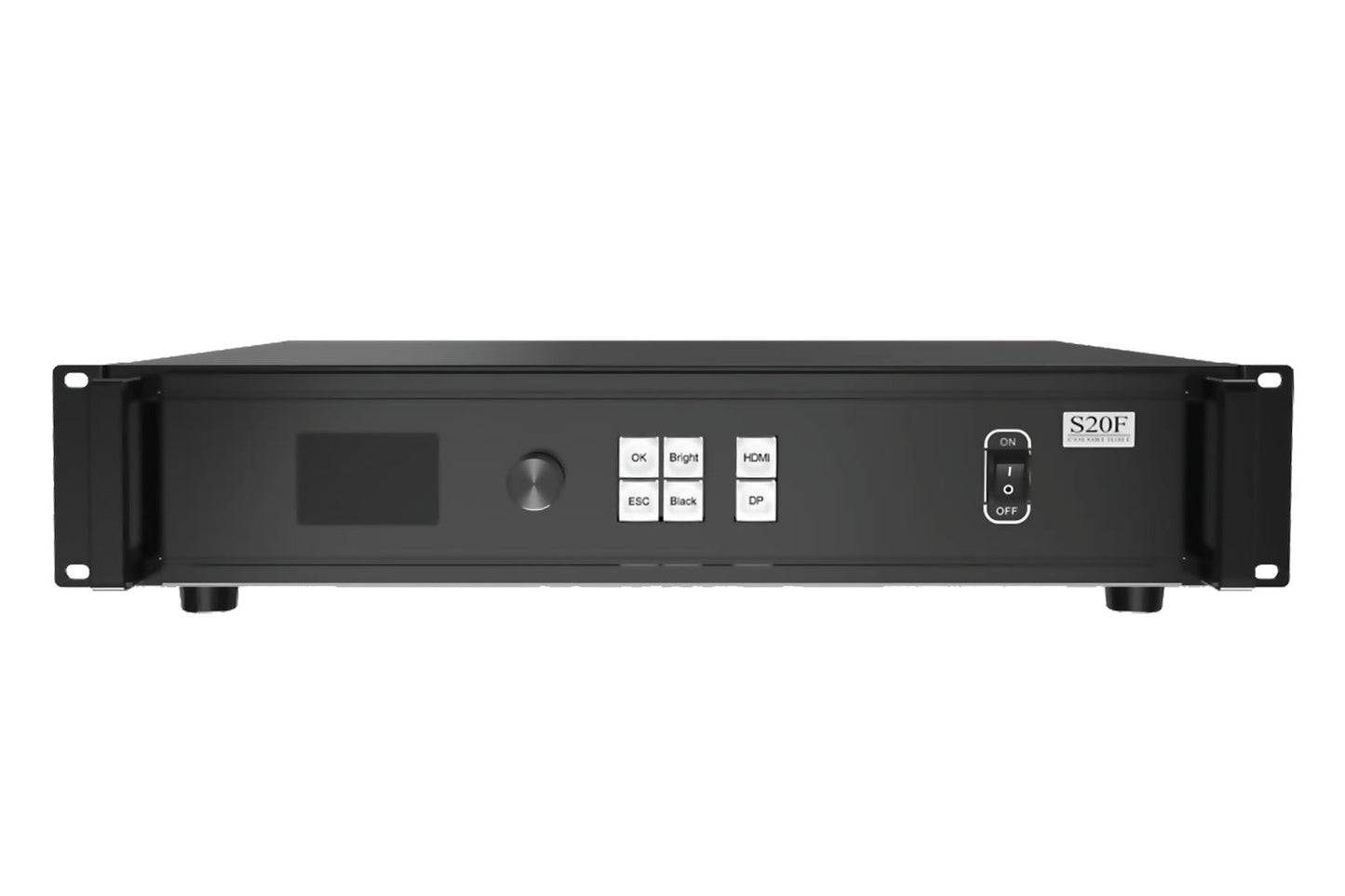

Colorlight CL-S20F Sender

  • Sale
  • Regular price

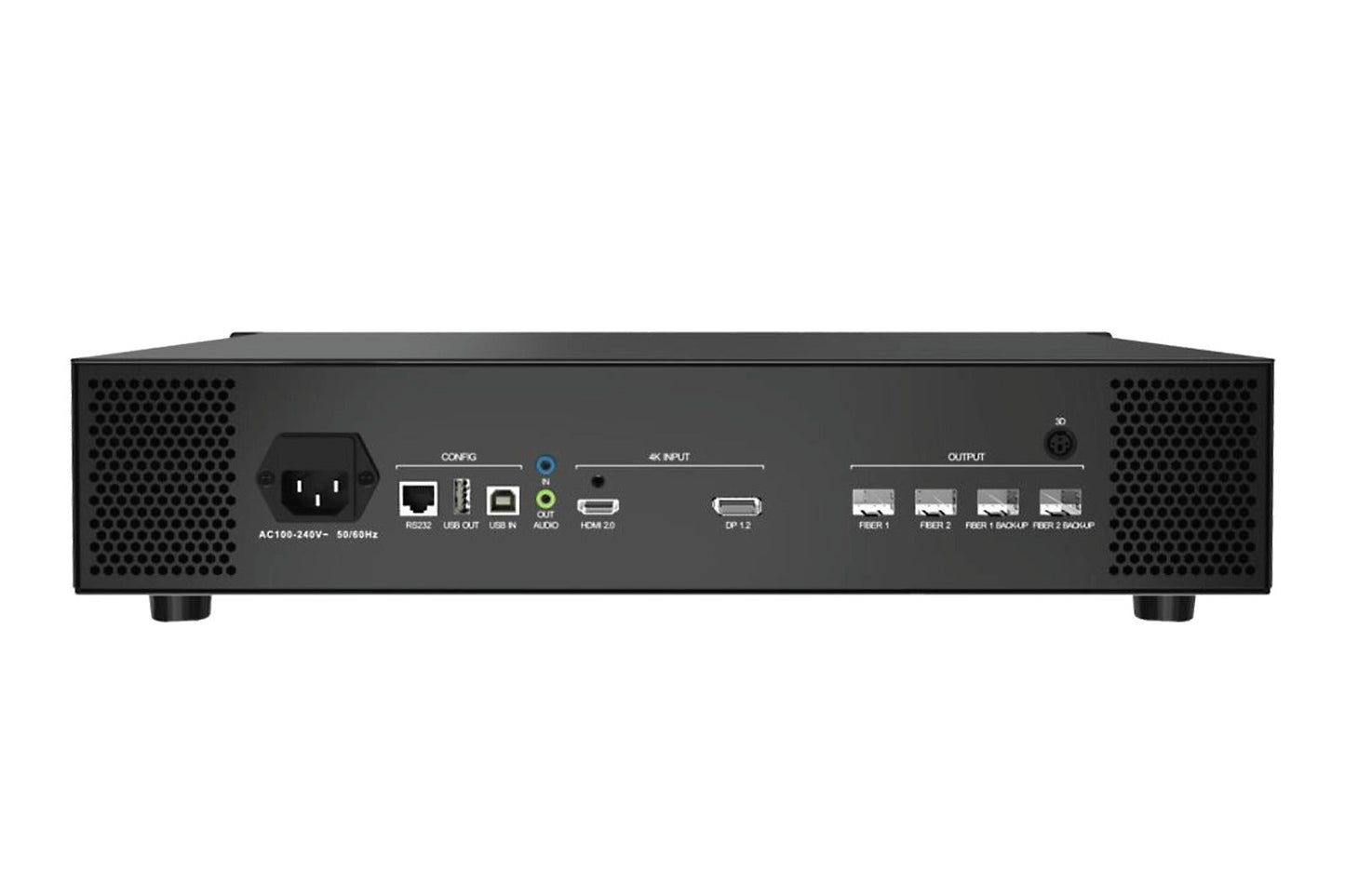

S20F is a controller possessing powerful video signal receiving capacity. It supports the input of DP1.2 and HDMI2.0, and seamless switching between signal sources. A single unit features a loading capacity of up to 8.85 million pixels, with a maximum width or height of 8192 pixels, while a single Ethernet port supports a loading width or height of up to 4096 pixels, and the controller supports signal inputs of up to 4096 X 2160@60Hz resolution. Thus, S20F allows users to configure ultra-long, ultra-high and ultra-large screens. S20F supports 4 optical fiber port output (2 active and 2 standby), as well as Ethernet port redundancy and controller redundancy. It can not only effectively ensure the display stability of screens, but also provide high- quality image display and flexible screen control.


  • Input: IXDP 1.2, IXHDMI 2.0
  • Support seamless switching between signal sources
  • Loading capacity: up to 8.85 million pixels, maximum width or height: 8192 pixels
  • 4 optical fiber outputs, 2 active and 2 standby, single optical port transmission rate 10Gb/s
  • Input resolution: up to 4096 x 2160@60Hz, supporting customized setting of resolution within control range
  • Support Ethernet port redundancy or controller redundancy
  • Support USB cascading control and RS232 protocol control
  • Separate audio input and output
  • Support 3D display (optional)
  • Better gray at low brightness
  • Compatible with all receiver cards and multifunction cards of Colorlight
