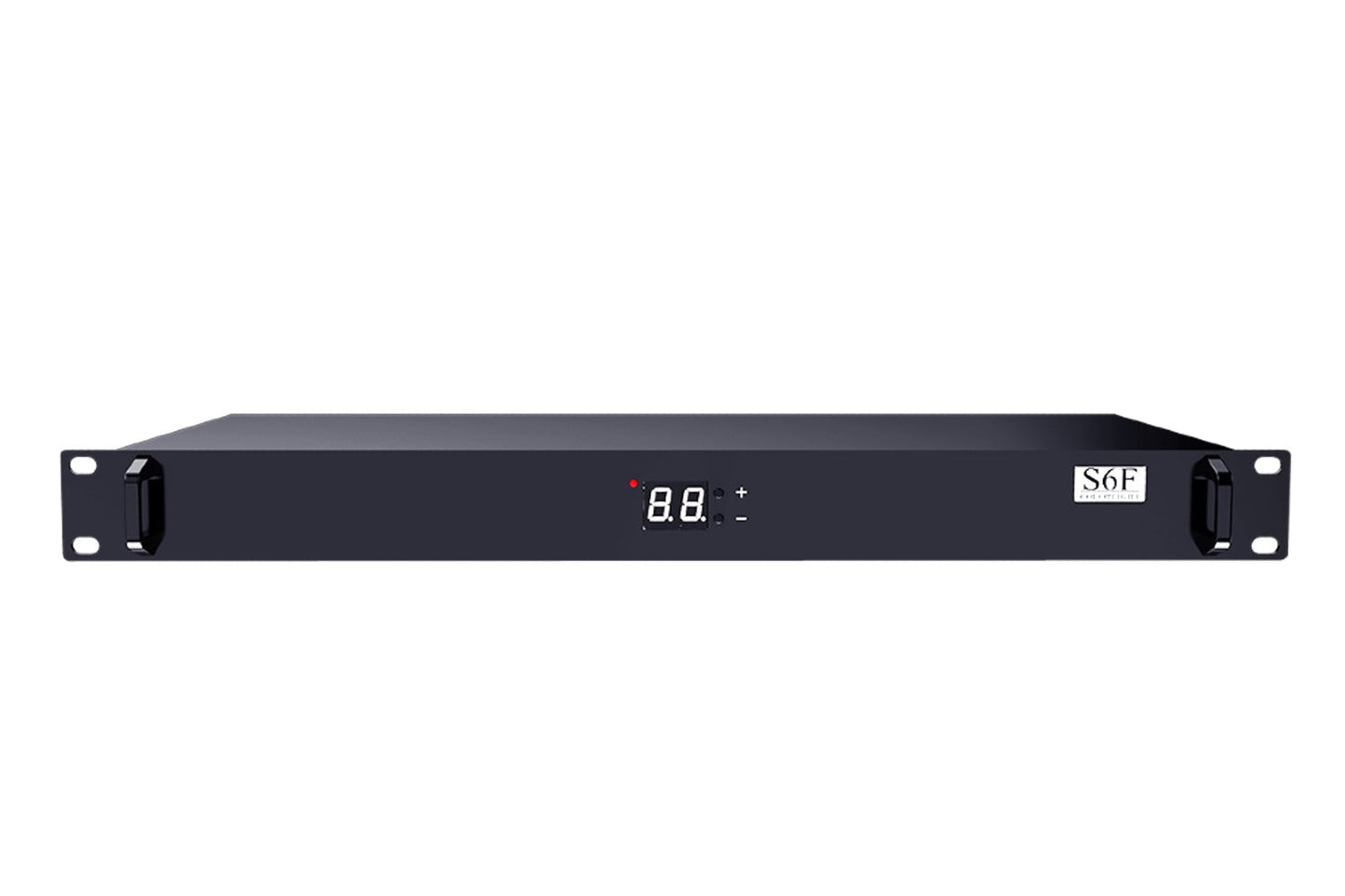

Colorlight CL-S6F Sender

Colorlight CL-S6F Sender

Regular price
Regular price Sale price
Sale Sold out

S6F possesses powerful video signal receiving capacity, and supports DVI&HDMI HD signal input and loop output, in which max input resolution is 1920 x 1200 pixels. Meanwhile, 6 Gigabit Ethernet and 3 optical fiber outputs support big LED display of 4096 pixels in maximum width or 2560 pixels in maximum height.

S6F adopts dual USB2.0 interfaces for high-speed configuration and easy cascading, and the operation is simple and convenient. Also, it equips a series of versatile functions, which have many advantages in applications of manufacture and engineering.

Features

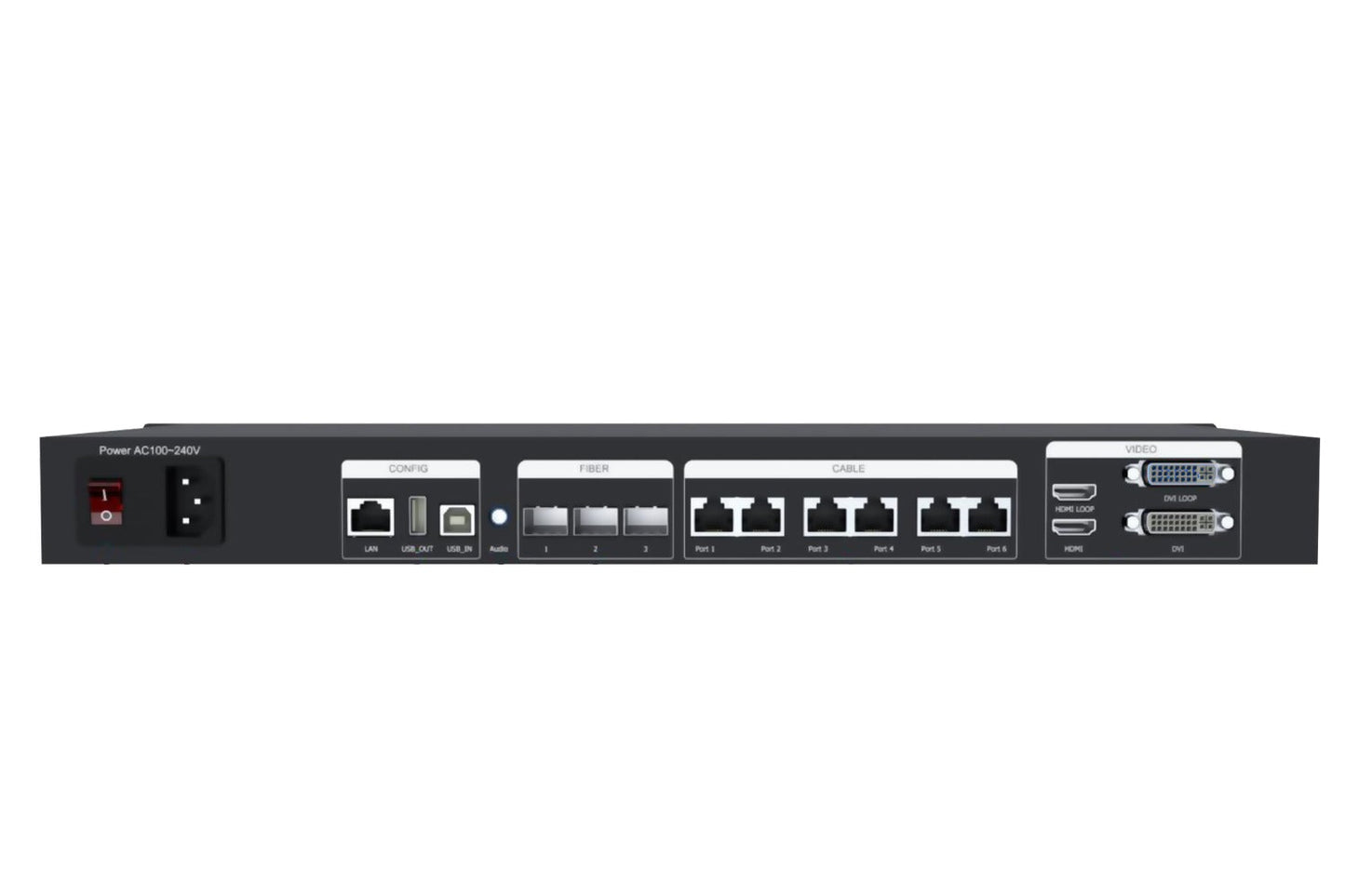

  • Video input ports including 1 HDMI with loop, 1 DVI with loop
  • Up to 1920 x 1200@60Hz input resolution, supporting EDID setting
  • Loading capacity: 2.3 million pixels, maximum width: 4096 pixels, or maximum height: 2560 pixels
  • 6 Gigabit Ethernet outputs support screen arbitrary splicing
  • Support 3 optical fiber outputs
  • Dual USB2.0 for high-speed configuration and easy cascading
  • Support splicing and cascading among several devices with synchronization strictly
  • Support control via Fast Ethernet port
  • Support brightness and color temperature adjustment
  • Support improved gray-scale at low brightness
  • Support HDCP
  • Compatible with all conventional receiving cards of Colorlight
