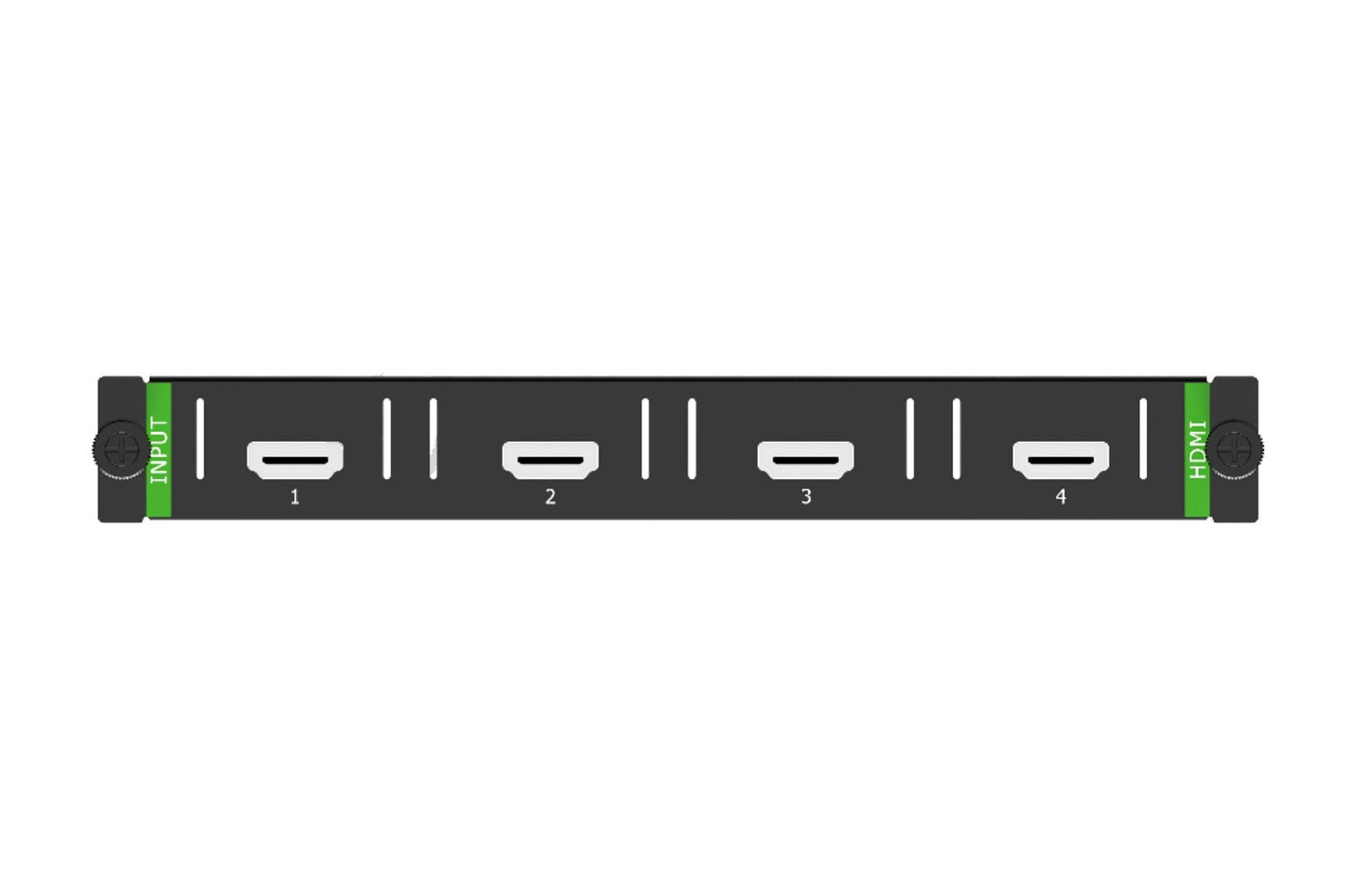

Colorlight CL-X100PROHDMI4I Input Board

Input board of 4x HDMI port

Features

• 4x HDMI Type-A ports.
• A single board supports 4-channel 1920x1200@60Hz input and HDCP 1.4.
• HDMI adopts the HDMI1.4 standard and is compatible with HDMI1.3.
• The maximum resolution of a single port is 1920x1200@60Hz.
• Maximum pixel width is 4096 (4096x512@60Hz).
• Maximum pixel height is 4096 (512x4096@60Hz).
• Independent EDID setting, using EDID V 1.3 standard.
• Independent cropping, seamless zooming and color adjustment.
