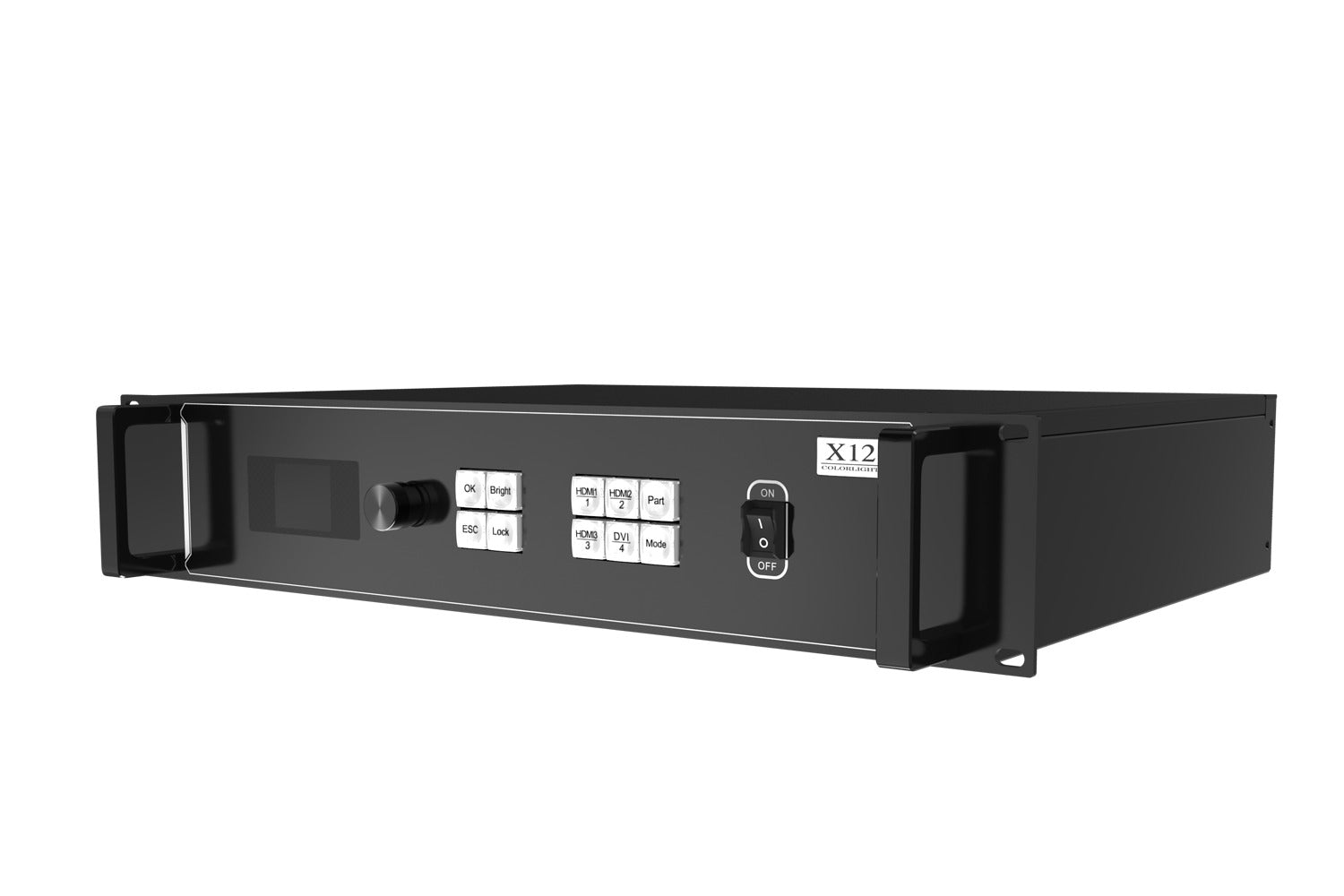

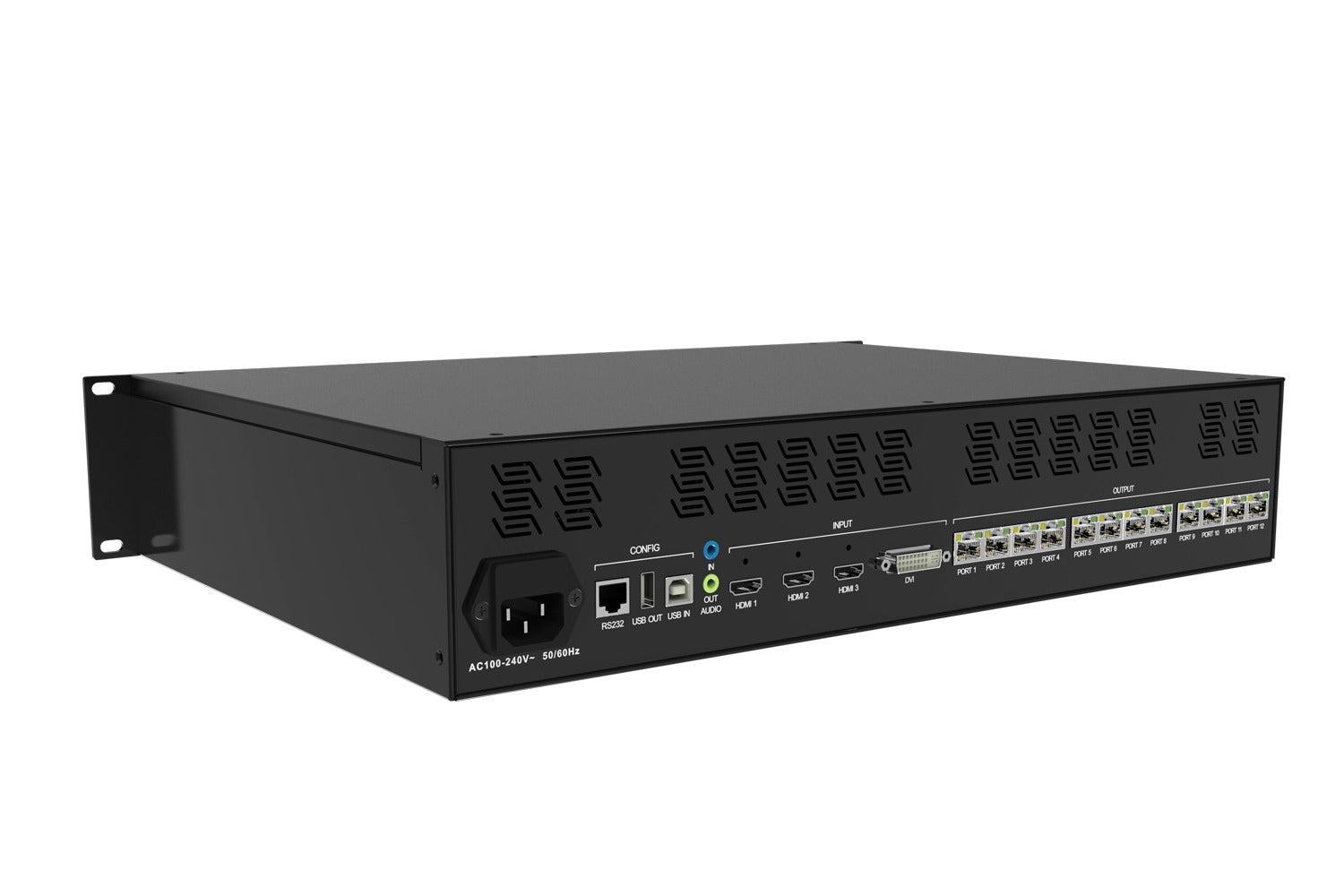

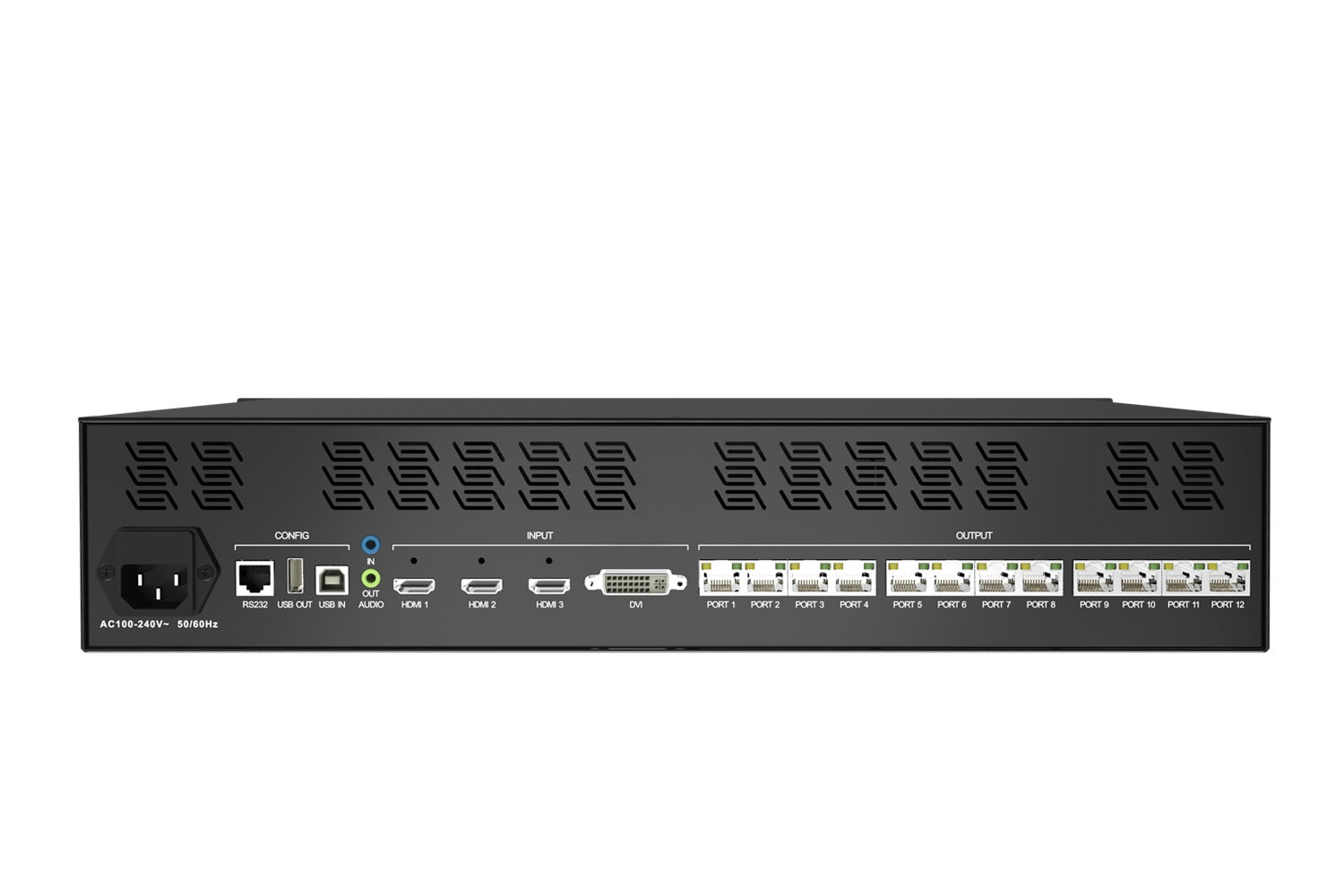

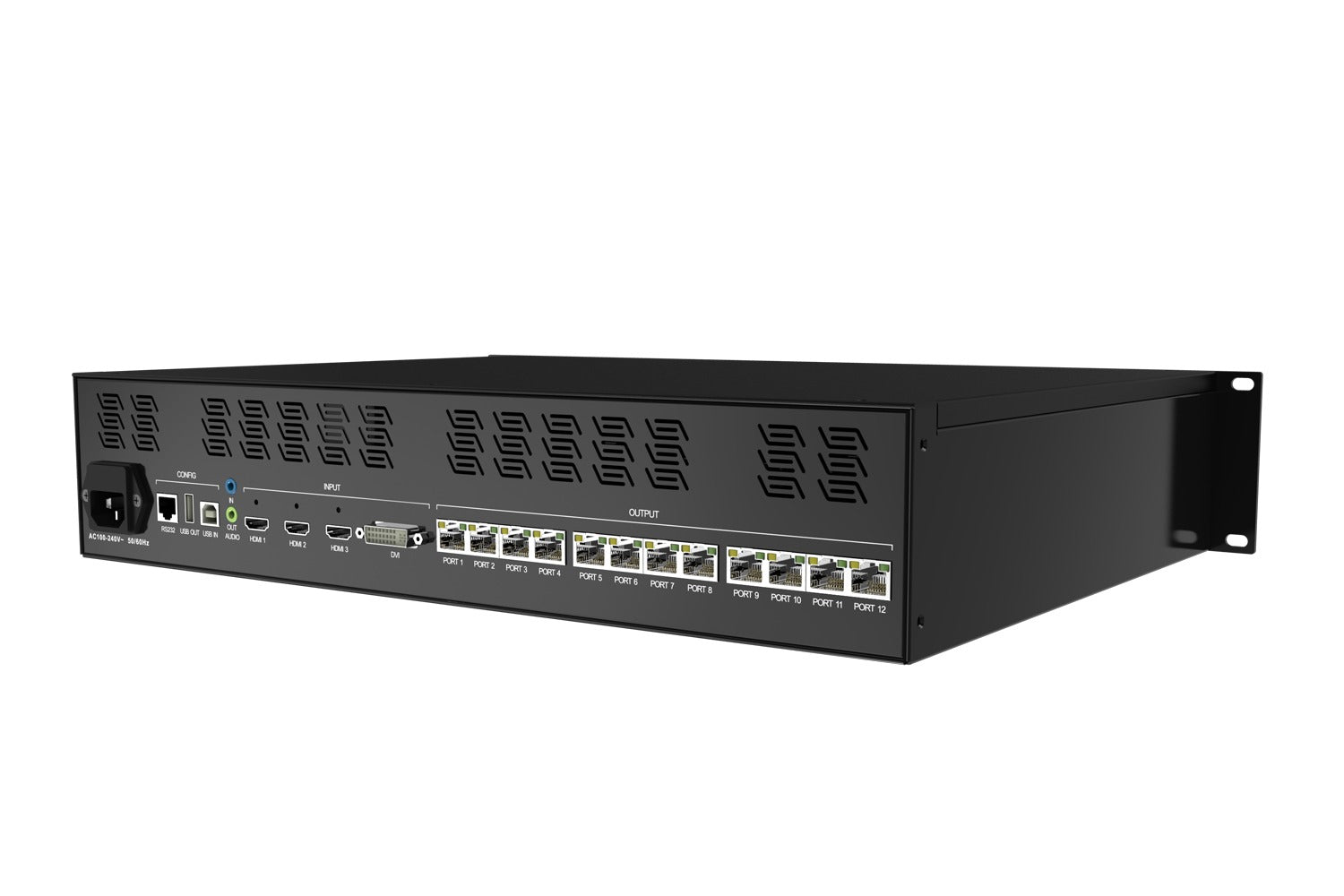

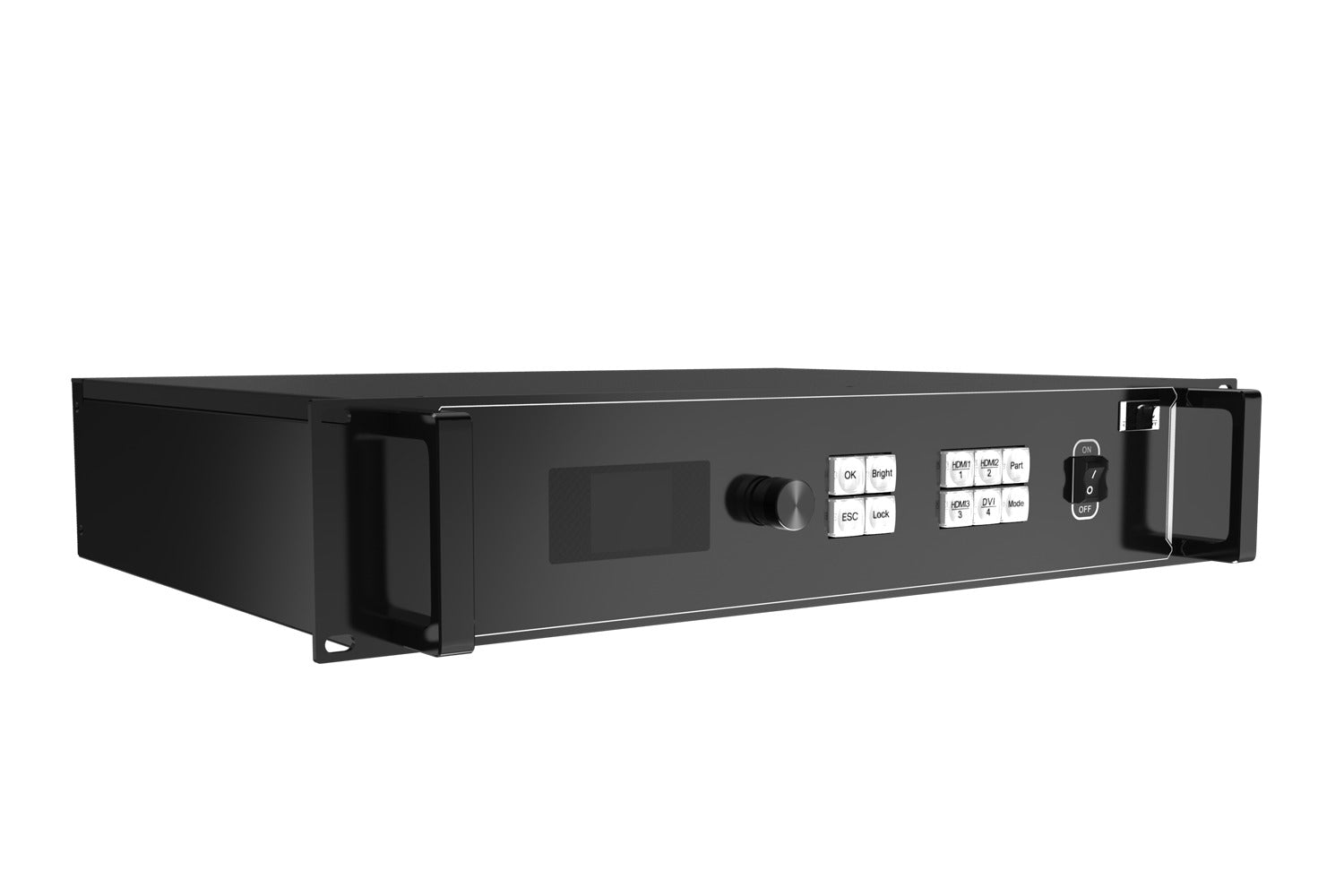

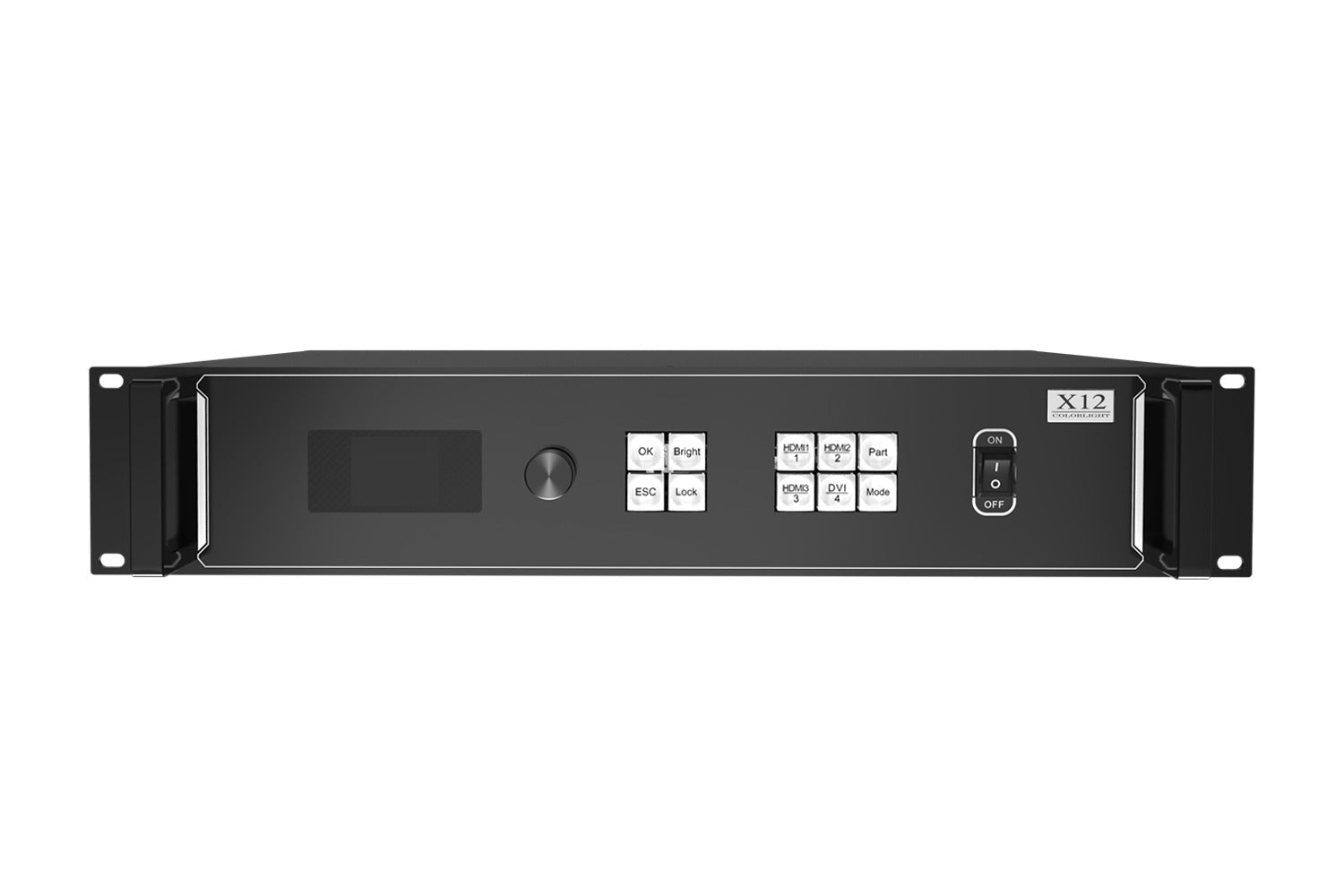

Colorlight CL-X12 Video Processor

  • Sale
  • Regular price

X 12, a professional control system and video processing device designed for LED display engineering applications. It has DVI and HDMI connectors, and supports seamless switching between multiple signals, broadcast quality scaling and multi- window display. The controller boasts 12 Gigabit Ethernet ports. A single unit features a loading capacity of 7.8 million pixels, with 8192 pixels in maximum width or 4096 pixels in maximum height. Meanwhile, the X 12 is equipped with abundant practical functions that enable flexible screen control and high-quality image display, which gives it an edge in the LED display engineering application field.


  • Input: lx DVI,3X HDMI1.4.
  • Input resolution: up to 1920 x 1200@60Hz, supporting customized setting.
  • Output: 12 x Gigabit Ethernet ports, supporting Ethernet port backup or sender backup.
  • Loading capacity: 7.8 million pixels, up to 8192 pixels in width or 4096 pixels in height.
  • Switching, cropping, splicing and scaling of video sources.
  • Display of up to 3 windows, of which the location and size can be freely adjusted
  • HDCP1.4 compliant.
  • Dual USB2.0 for high-speed configuration, used for debugging or cascading.
  • Support RS232 protocol
  • Brightness, color temperature, contrast, hue and saturation adjustment.
  • Better gray at low brightness.
