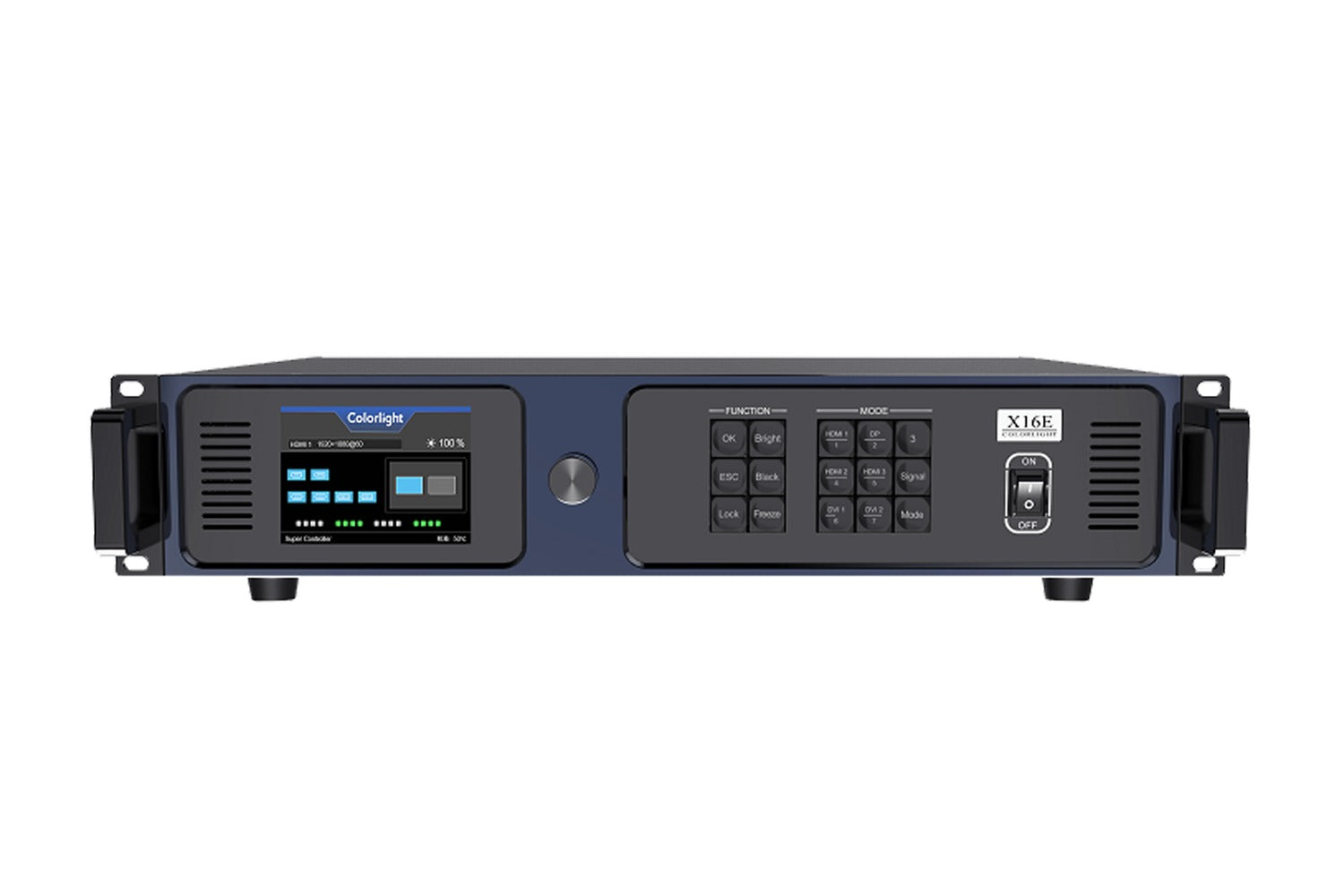

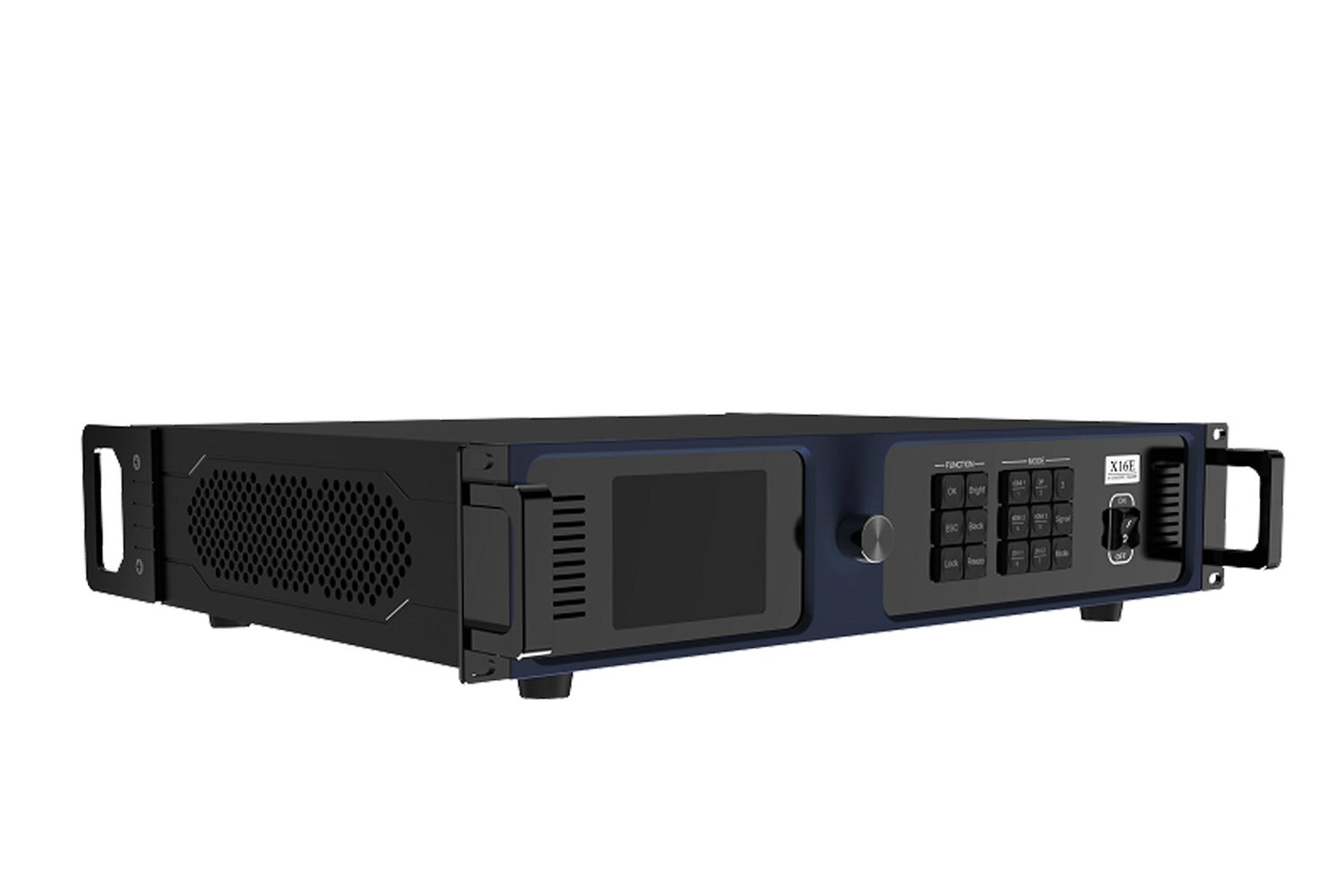

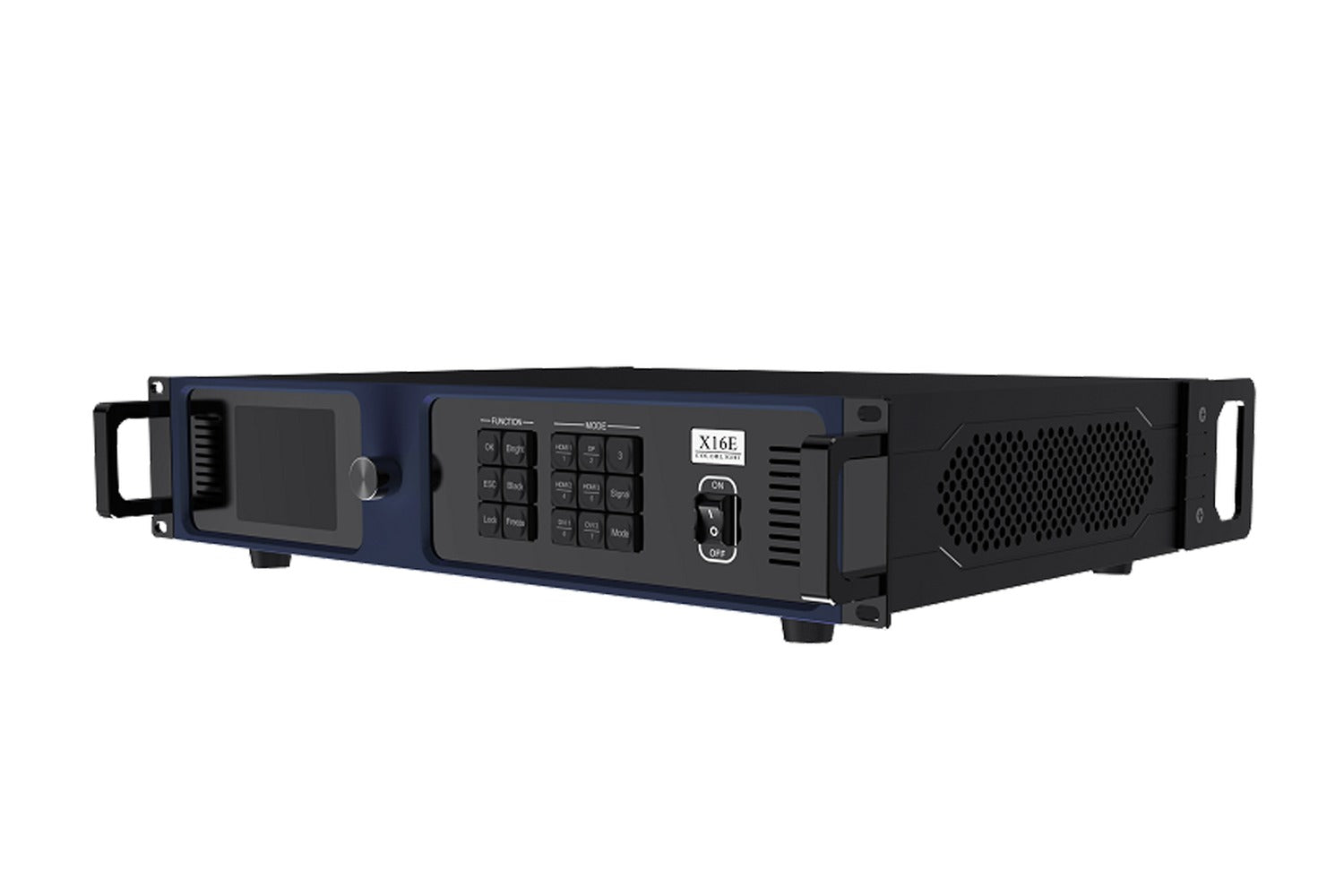

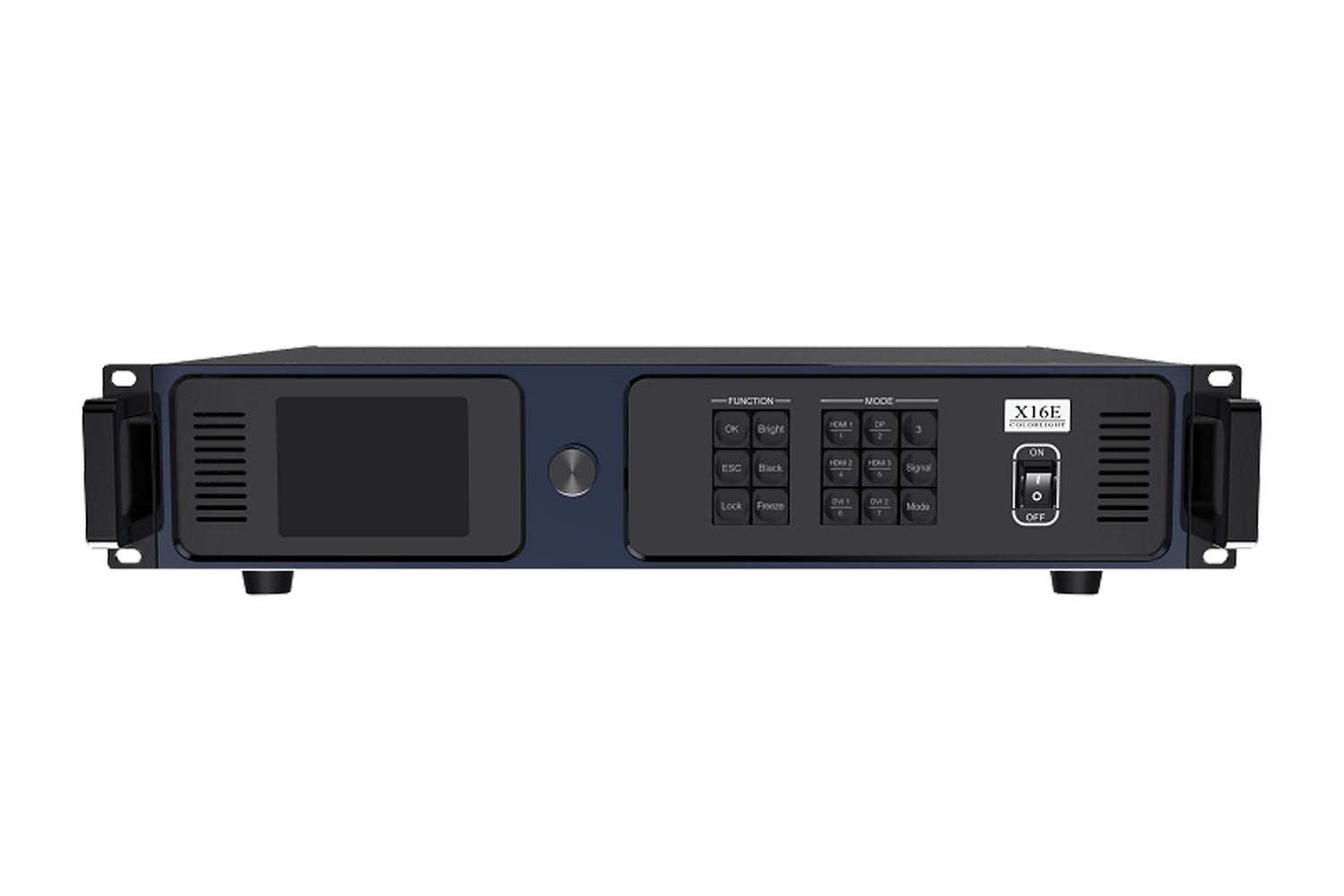

Colorlight CL-X16E Video Processor

  • Sale
  • Regular price

X16E is a controller possessing powerful video signal input and processing capacity. It supports 4K inputs with DP 1.2 and HDMI 2.0 ports, and 2K inputs with HDMI 1.4 and DVI ports, and the multiple signals can be seamlessly switched. Equipped with 16 Gigabit Ethernet ports, the controller can greatly meet your different demands. Additionally, X16E boasts abundant practical functions that enable flexible screen control and high-quality image display.

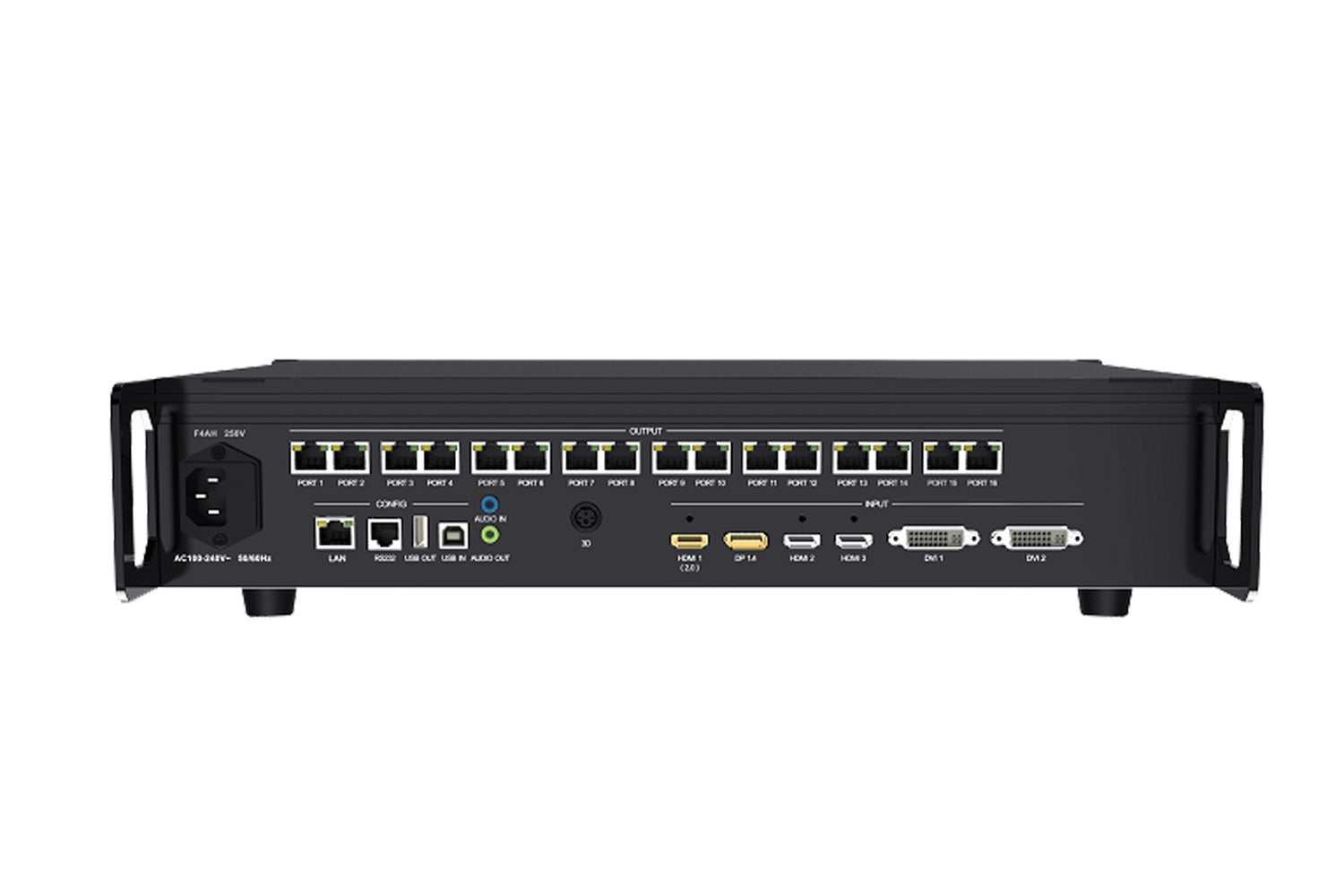

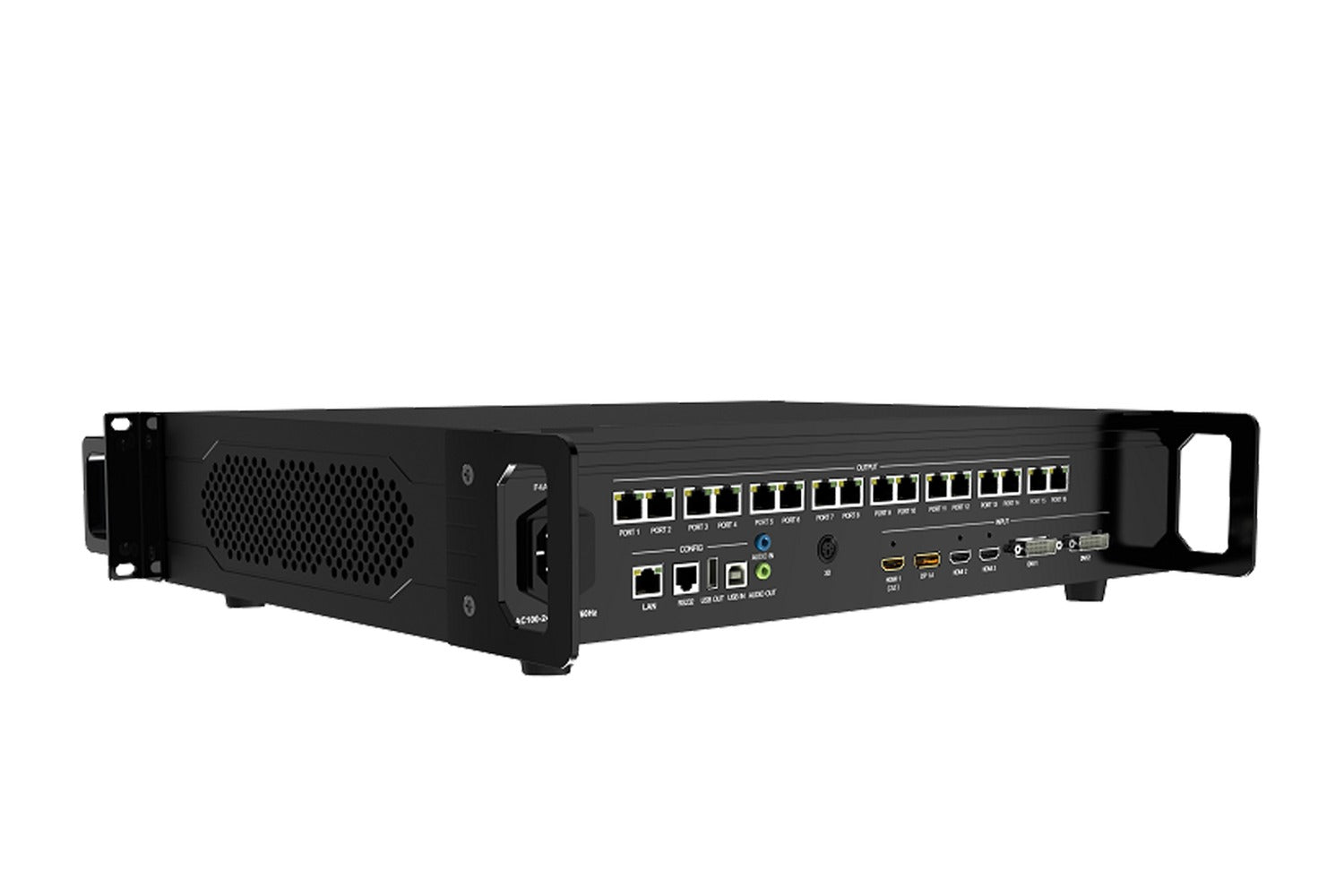

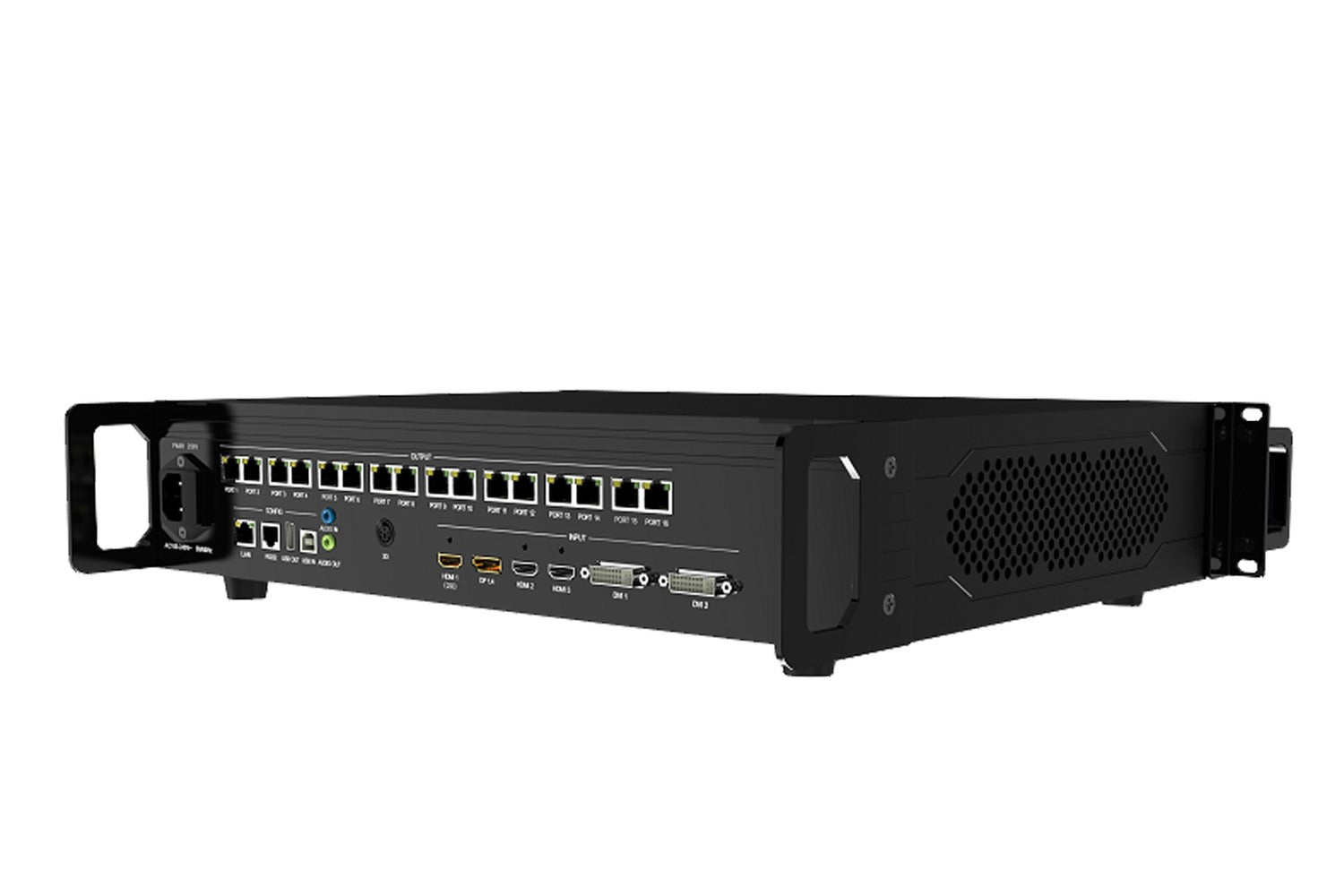

  • Input ports: 1x DP 1.2, 1x HDMI 2.0, 2x HDMI 1.4, 2x DVI.
  • Loading capacity: 10.48 million pixels, maximum 16384 pixels in width or maximum 8192 pixels in height.
  • Input resolution: up to 4096x 2160@60Hz, supporting customized setting.
  • Output ports: Gigabit Ethernet port.
  • Video source switching, cropping, splicing and scaling.
  • Up to 6 windows, of which the location and size can be freely adjusted.
  • Precise color management and display gamut adjustment.
  • Video sync.
  • Separate audio input and output.
  • Analyzing and outputting the audio signals of HDMI and DP inputs.
  • LAN control.
  • Control via hand-held terminal (app).
  • RS232 protocol control.
  • 3D (optional).
  • HDCP (Only HD interface support).
  • Brightness and color temperature adjustment.
