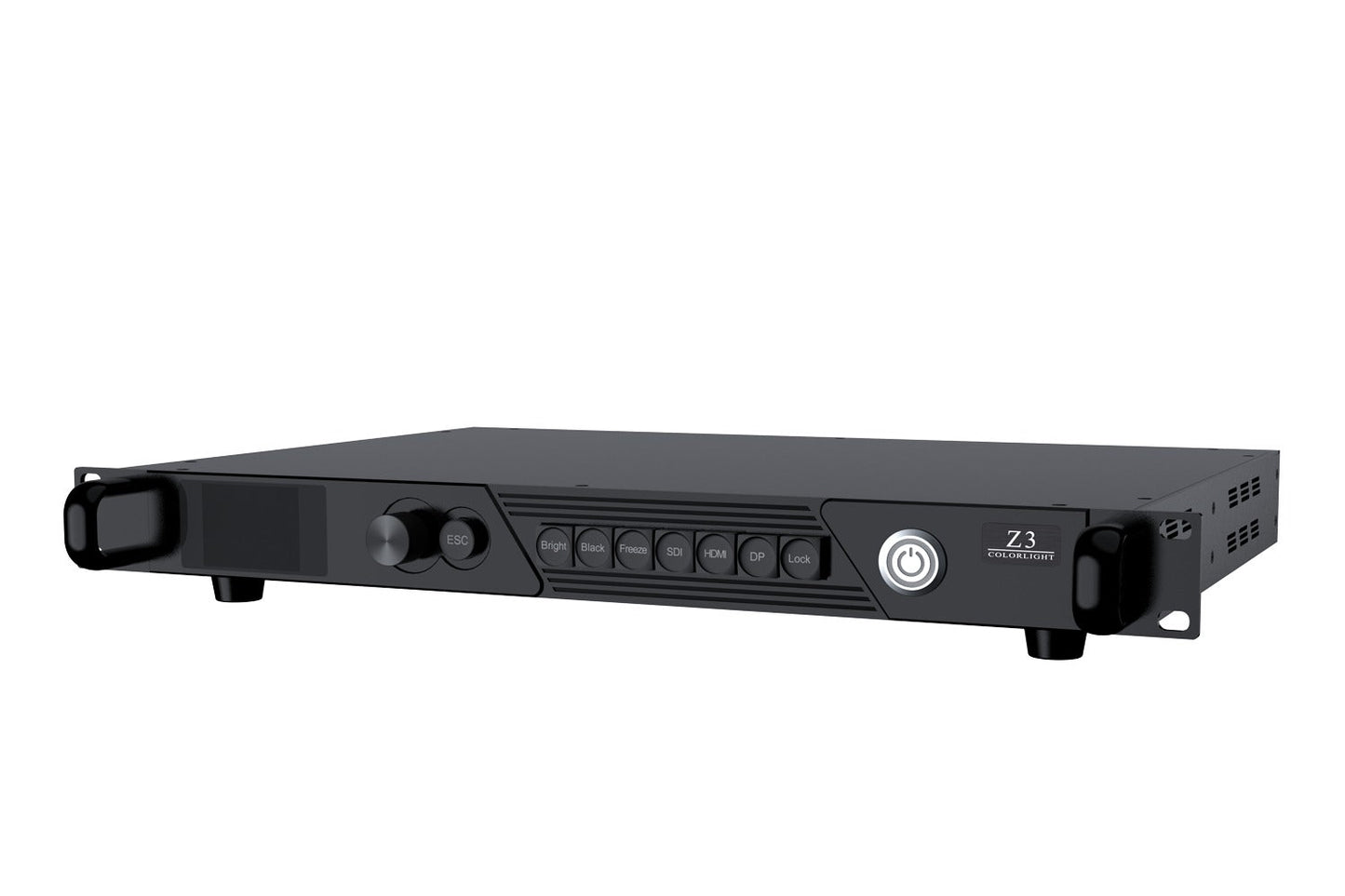

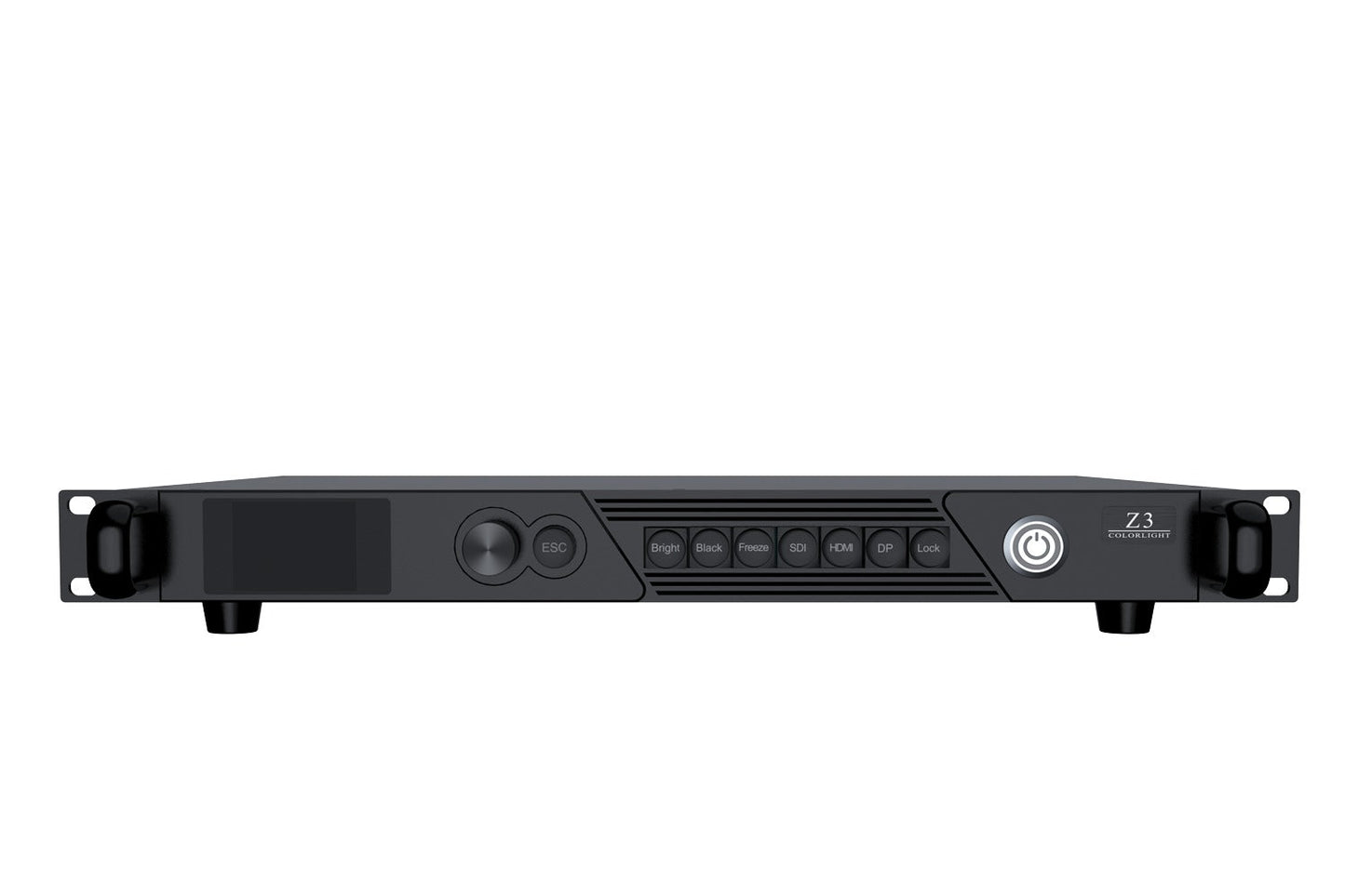

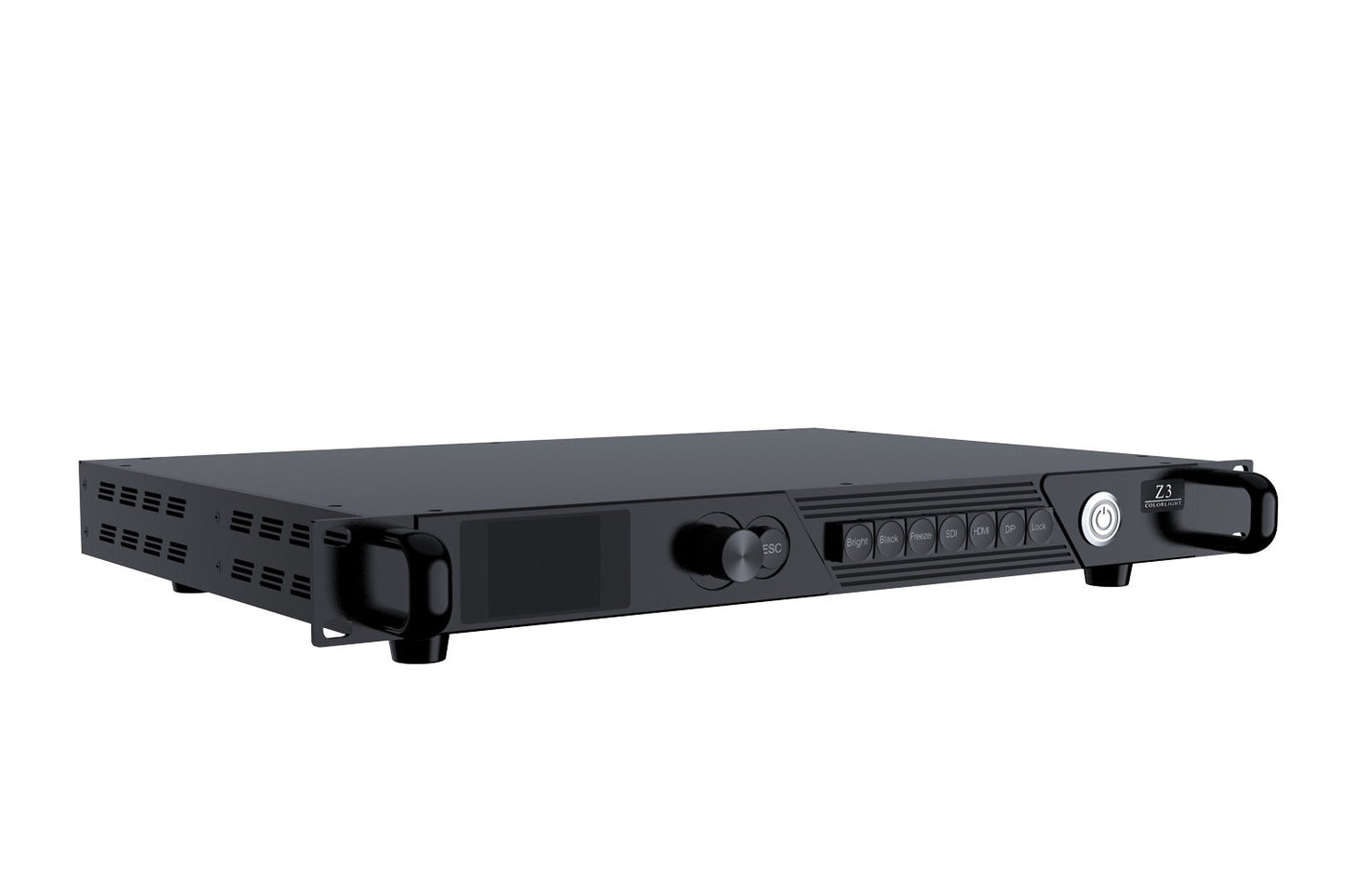

Colorlight CL-Z3 Super Processor

Z3 is a professional LED video controller of the latest generation. Its strong capabilities of UHD image processing and LED screen control allow for ultra-low latency, HDR and wide color gamut display effects, bringing an authentic audio-visual feast to users. It can be massively applied in live events, broadcast, television, filming and other scenarios.

Features

Input

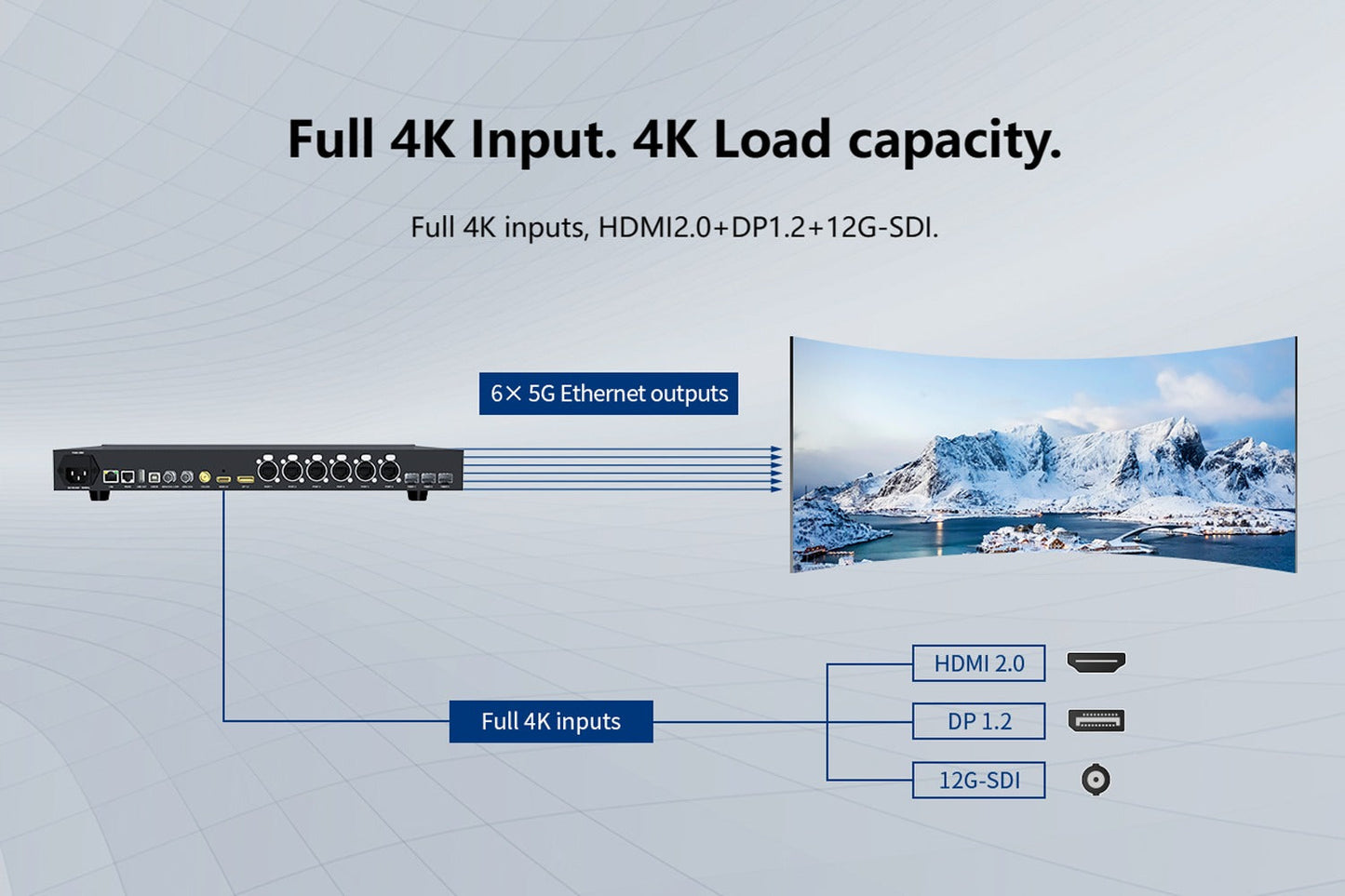

• Full 4K inputs: HDMI2.0, DP1.2, 12G-SDl.
• Up to 4096 X2160@60Hz on a single channel.
• Support 8/10-bit video signal input.
• Support HDCP1.4/HDCP2.2.
• 23.98Hz to 240Hz input frame rate.

Output

• Maximum loading capacity of 8.84 million pixels, with up to 16,384 pixels in width and 8192 pixels in height.

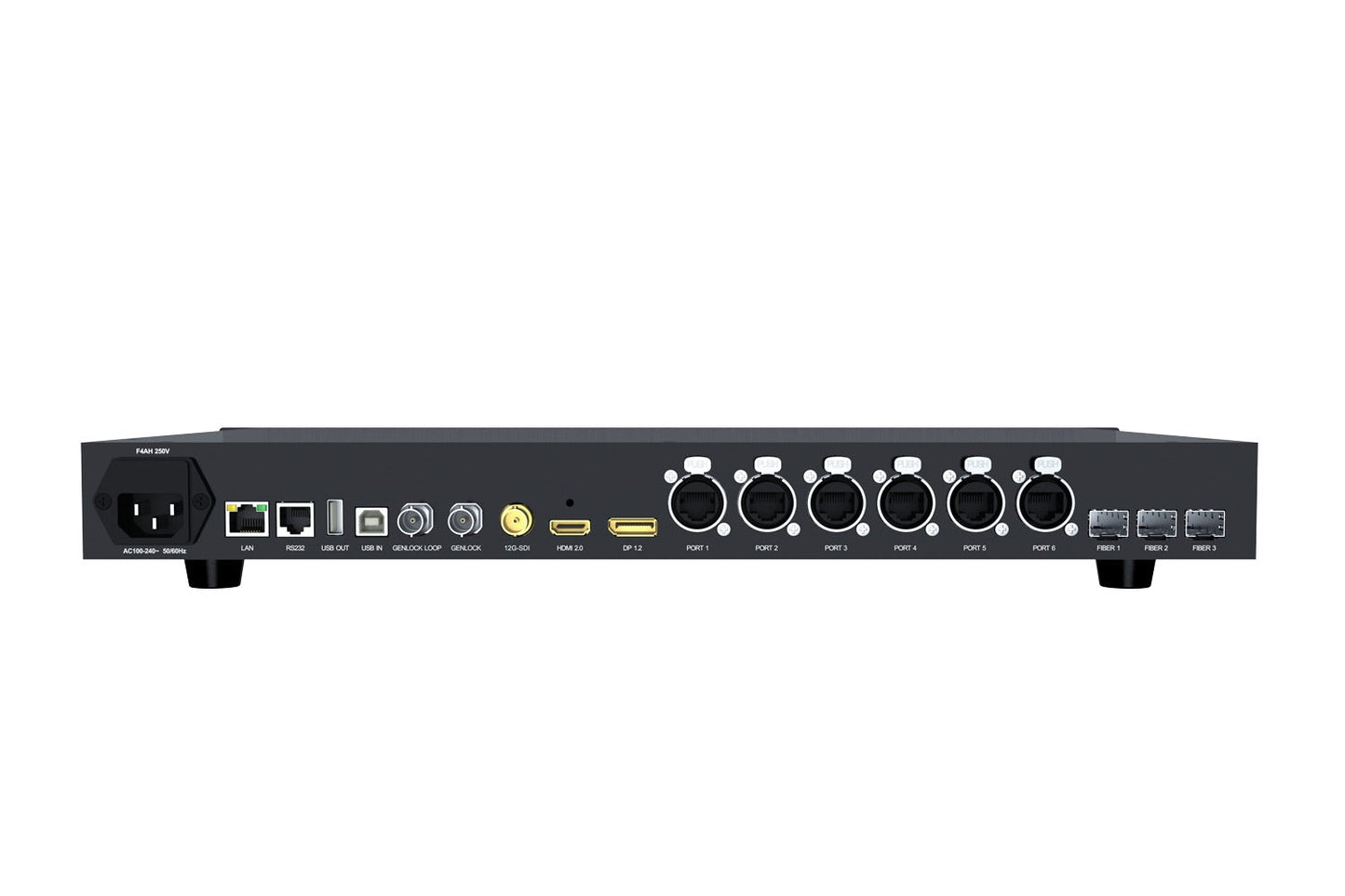

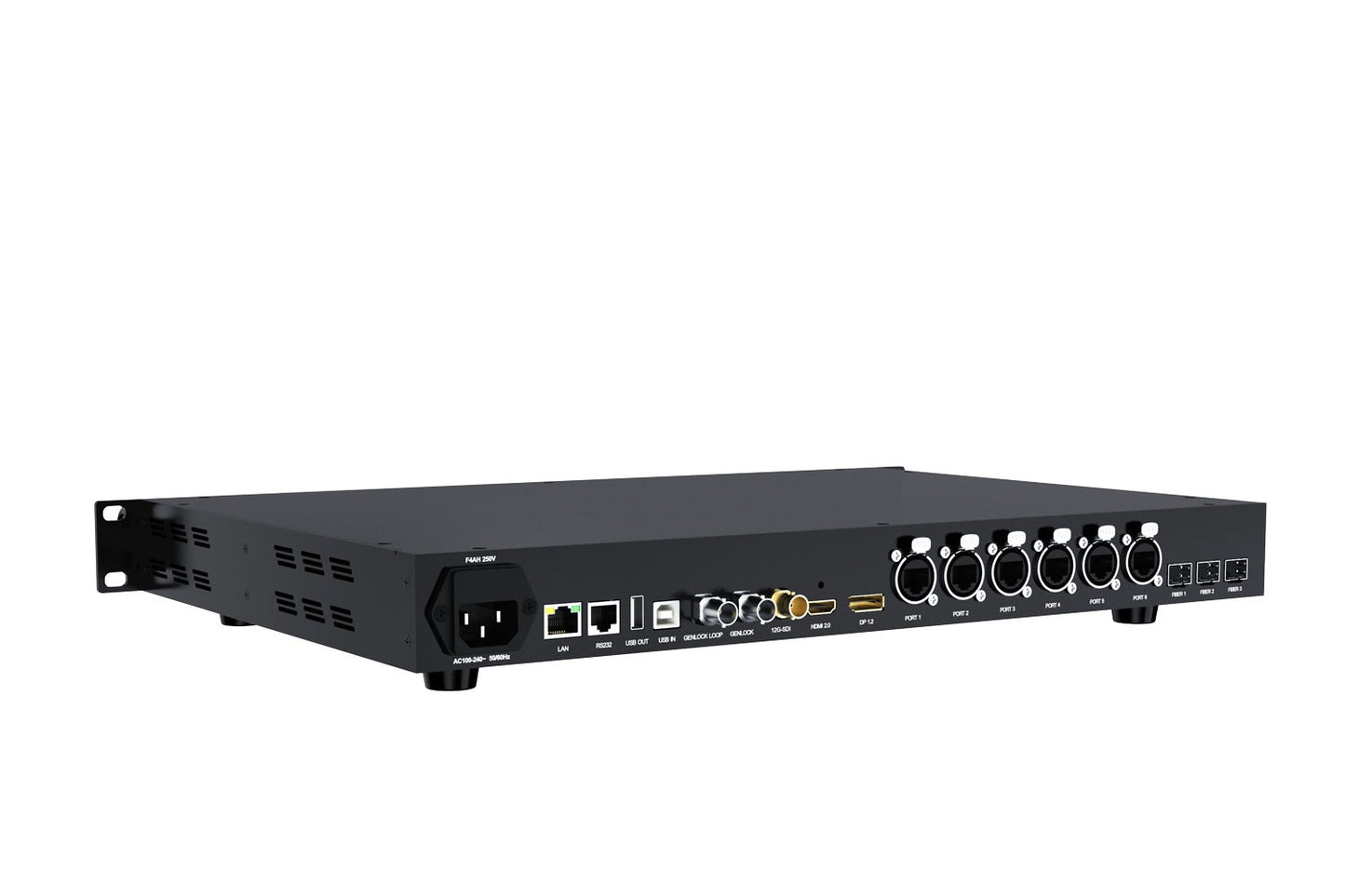

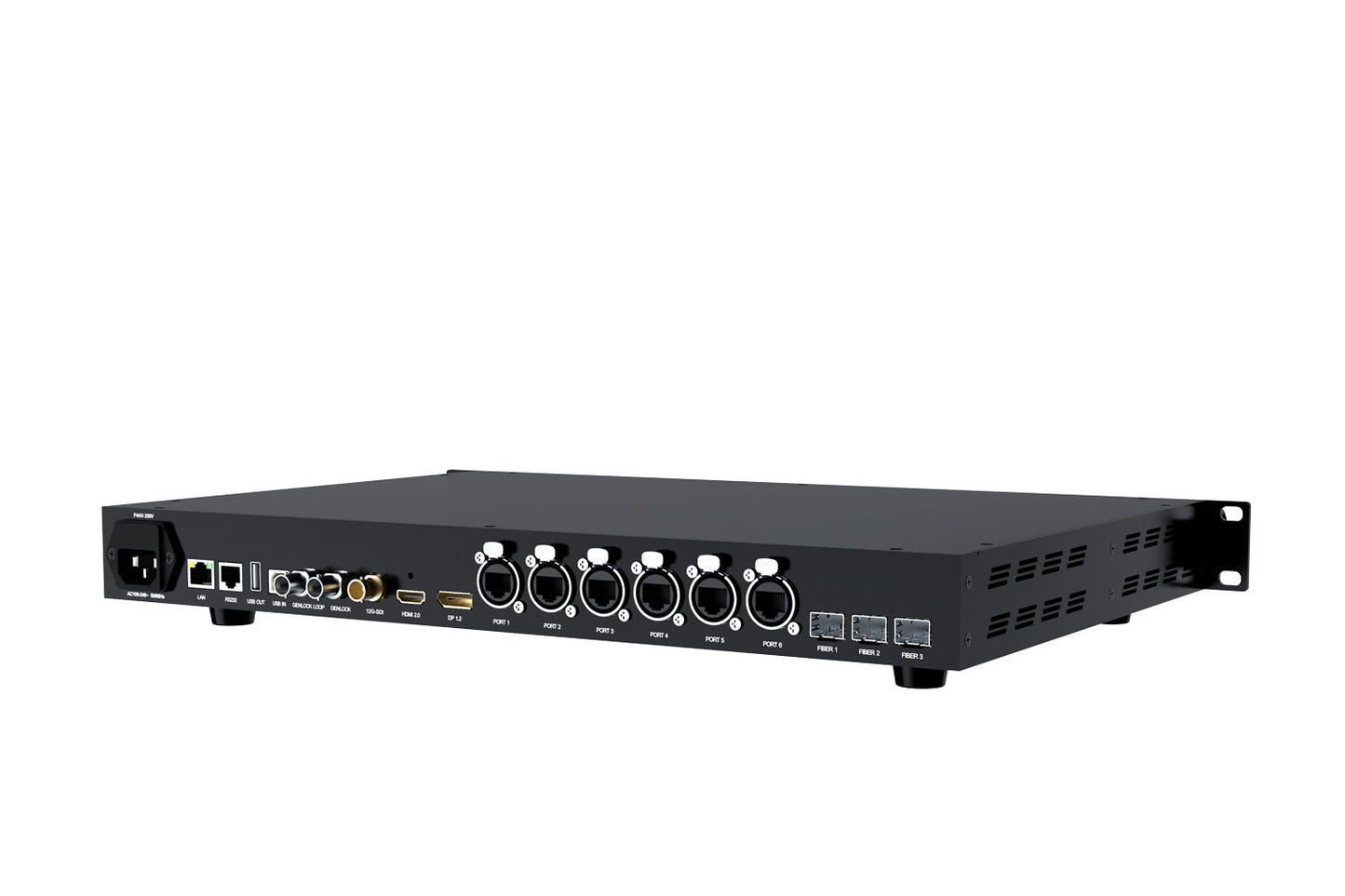

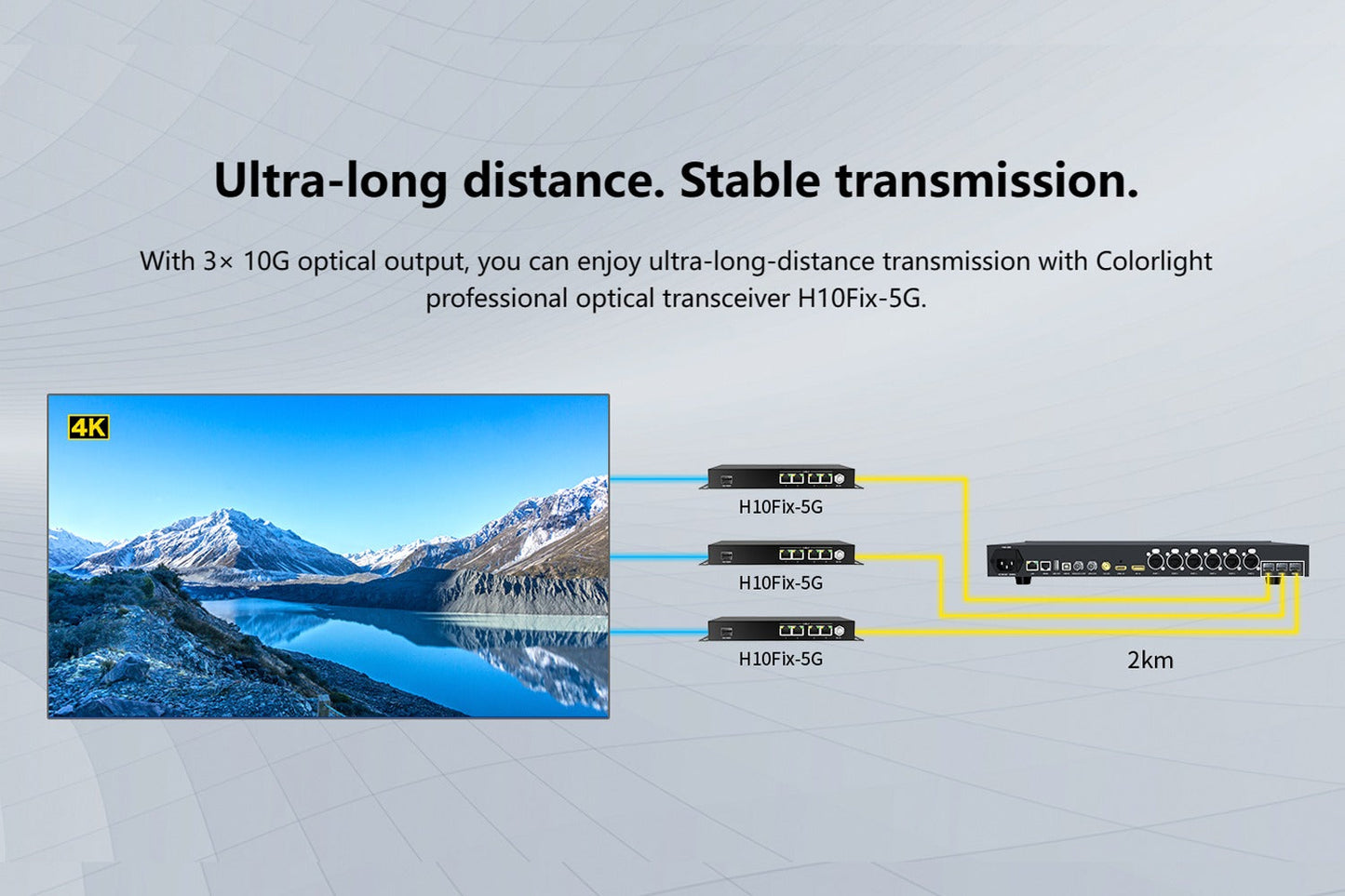

• 6x 5G Ethernet ports outputs or 3X 10 Gigabit fiber ports output.
• 23.98Hz to 240Hz output frame rate.
• Support both Ethernet port redundancy and controller redundancy.

Video processing

• Video signal cropping, switching, and broadcasting level scaling.
• Single window display.
• Low latency, a minimal latency of one frame.
• HDRIO/HLG display.
• Genlock.

Color adjustment

• Picture adjustment: support adjusting the hue, saturation, contrast, and brightness
• compensation of the device' s output.
• Brightness adjustment: support adjusting brightness by Ethernet port group.
• Color temperature adjustment: support adjusting color temperature accurately and RGB component individually.

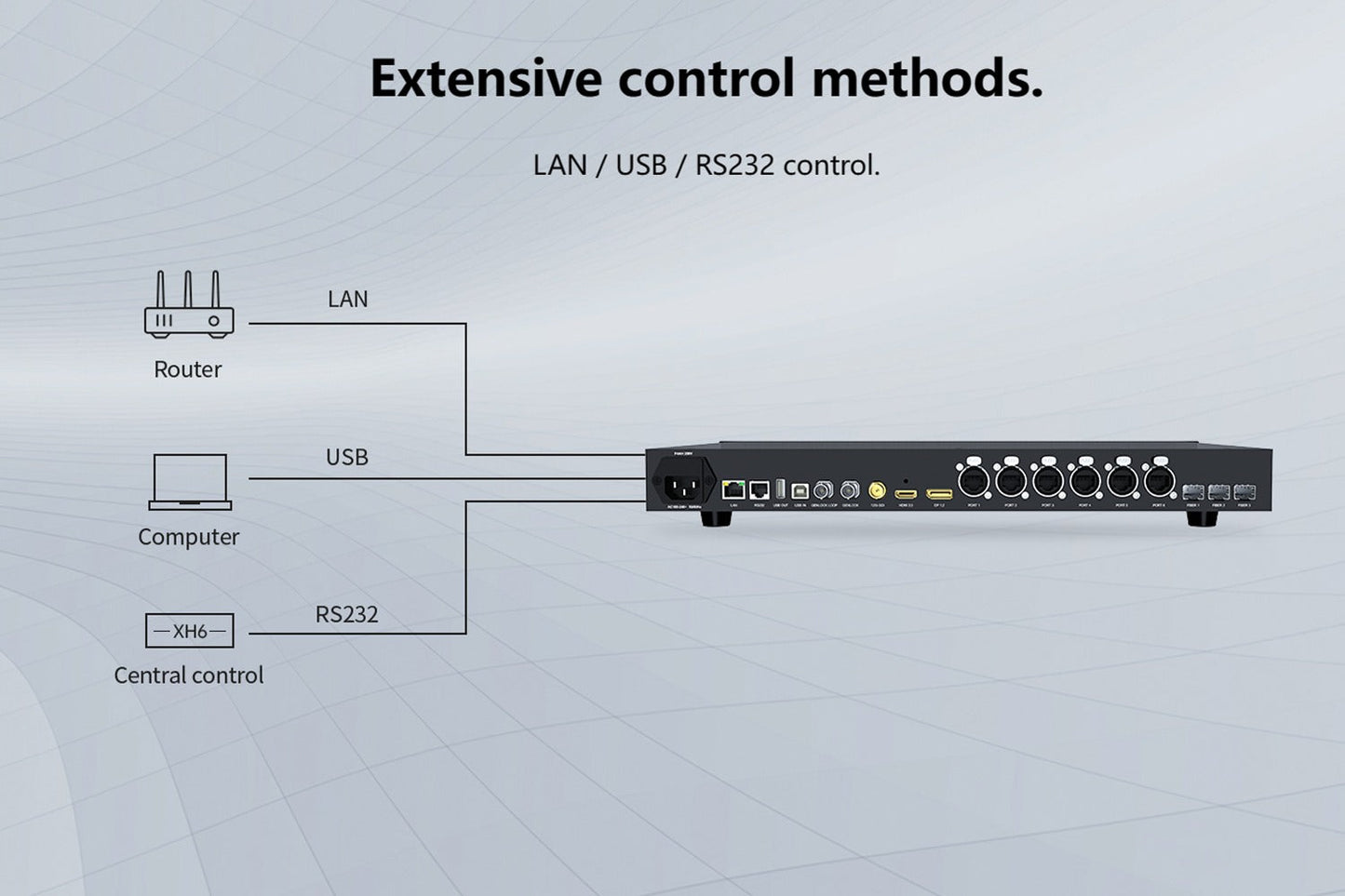

Control

• USB port for control and cascading.
• RS232 serial communication protocol.
• LAN port for TCP/IP control.
