Z5, a new generation of professional LED video controller, is designed specially to meet the ultra-low latency display, HDR and wide color gamut needs of live event, broadcast, television, filming and other scenarios, where real time, low-latency processing and color fidelity is required for Ultra HD image and LED display control. Z5 includes features providing excellent vision effect for user.
Features
Input
- Full 4K inputs: HDMI2.O, DP1.2, 12G-SDl.
- Single port supports up to 4096 X 2160@60Hz.
- Support 8bit/ 10bit video signal input.
- Support HDCP1.4/HDCP2.2.
- Support input frame rate from 23.98Hz to 240Hz.
Output
- Maximum capacity of 13.1 million pixels, with maximum 16384 pixels in width and maximum 8192 pixels in height.

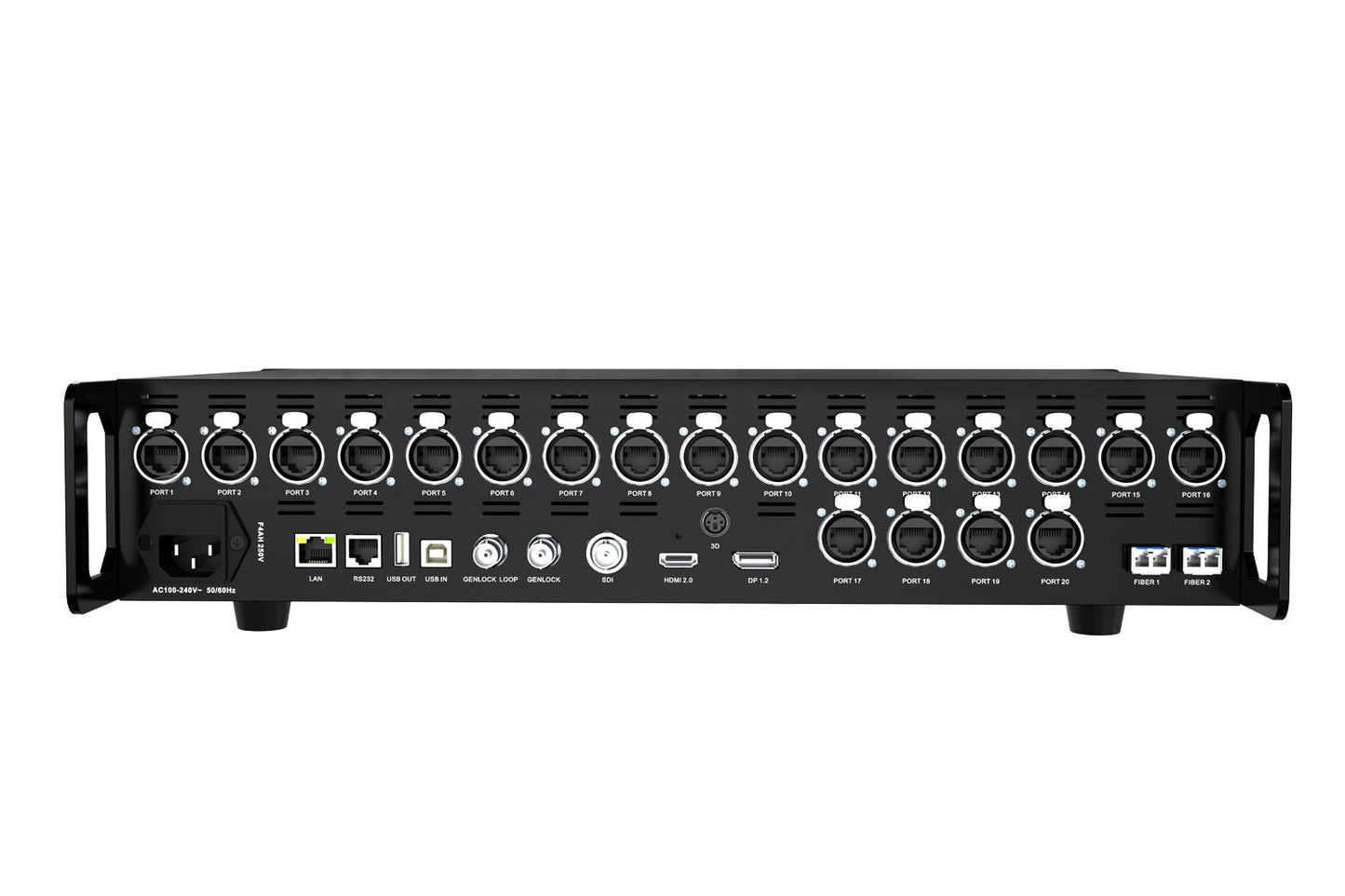

- 20-channel Gigabit Ethernet port output; 2-channel 10 Gigabit fiber port output.
- Support output frame rate of 23.98Hz to 240Hz.
- Support both Ethernet port redundancy and controller redundancy.
Video processing
- Video cropping, broadcasting level switching and scaling.
- Up to 3-window display, support I-channnel 4K and 2-channel HD signal display.
- Low latency, minimum one frame delay.
- HDR1O/HLG display.
- Genlock function.
Color adjustment
- Picture adjustment for hue, saturation, contrast, and brightness compensation.
- Brightness adjustment, support network port grouping brightness adjustment.
- Color temperature adjustment with precision and RGB independent adjustment.
Control
- USB port for control and cascading.
- RS232 port.
- LAN port for TCP/IP control.
