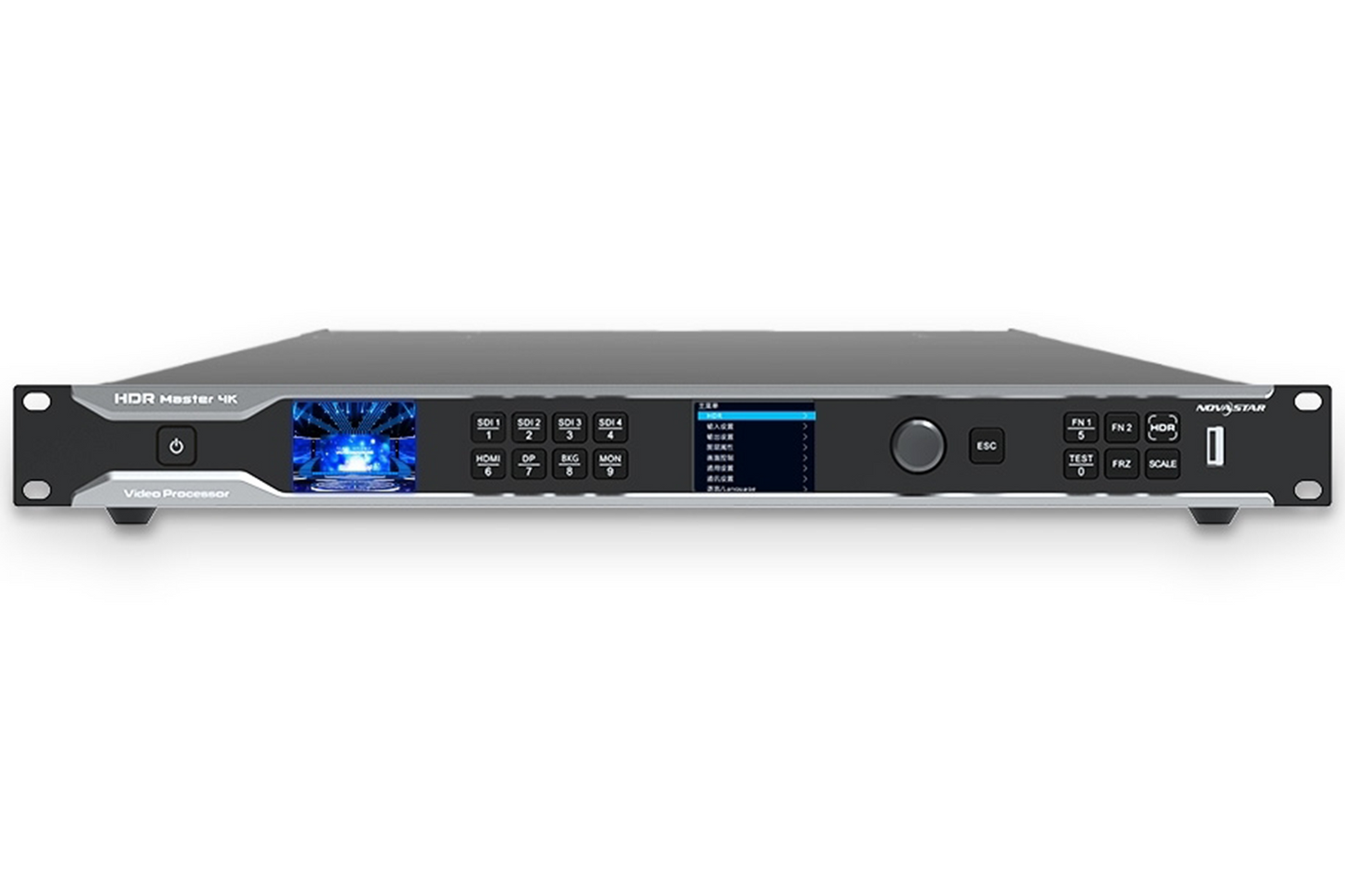

HDR Master 4K

HDR Master 4K

Regular price
Regular price Sale price
Sale Sold out

HDR Master 4K is an HDR video generator which can be specially adjusted according to the display characteristics of the LED screen. The display effect is fully optimized to show more details of the bright and dark parts of an image.

In the absence of an HDR video source, SDR video can be directly generated as HDR10 video source output, allowing real and lifelike reproduction of an image.

Features

  • 1 pluggable input card
    • 1 × DP 1.2, 1 × HDMI 2.0 and 4 × 12G-SDI
  • 3G-SDI input mosaic
  • Up to six 4K×2K@60Hz video inputs simultaneously
  • 2 pluggable output cards that output the same content synchronously
    • One with 1 × HDMI 2.0 and 4 × 10G optical fiber ports
    • The other one with 1 × HDMI 2.0 and 4 × 12G-SDI output connectors
    • 3G-SDI output mosaic
  • SDR to HDR10 conversion

 Specifications

Input Card

Input Card
Connector Qty Standard Description
HDMI 2.0 1

HDMI 2.0

Backwards compatible with HDMI 1.4 and HDMI 1.3

  • Up to 4K×2K@60Hz or 8K×1K@60Hz input resolution
  • 1080i/576i/480i deinterlacing
  • HDCP 2.2 and HDCP 1.4 compliant
  • HDR10 and HLG supported
  • Max. width: 8192 pixels, max. height: 4000 pixels
DP 1.2 1

DP 1.2

Backwards compatible with DP 1.1

  • Up to 4K×2K@60Hz or 8K×1K@60Hz input resolution
  • 1080i/576i/480i deinterlacing
  • HDCP 1.3 compliant
  • Max. width: 8192 pixels, max. height: 4000 pixels
12G-SDI 4

12G-SDI

Backwards compatible with 6G-SDI, 3G-SDI,HD-SDI and SD-SDI

  • Supports ST-2082-1 (12G), ST-2081-1 (6G), ST-424 (3G), ST-292 (HD) and SMPTE 259 (SD).
  • Up to 4K×2K@60Hz input resolution
  • 1080i/576i/480i deinterlacing
  • For 3G-SDI, HD-SDI or SD-SDI inputs, SDI mosaic input is supported.
Output Card
1×HDMI2.0+4×Fiber Output Card
Connector Qty Standard Description
HDMI 2.0 1

HDMI 2.0

Backwards compatible with HDMI 1.4 and HDMI 1.3

  • HDR10 supported
  • Up to 4K×2K@60Hz output resolution
  • Max. width: 8192 pixels, max. height: 4000 pixels
10G optical fiber port 4 10G
  • OPT 1 and OPT 2 copy the output on HDMI 2.0.
  • OPT 3 copies the output on OPT 1.
  • OPT 4 copies the output on OPT 2.
4×12G SDI+1×HDMI2.0 Process Card
Connector Qty Standard Description
HDMI 2.0 1 HDMI 2.0, HDMI 1.4 and HDMI1.3 compatible
  • HDR10 supported
  • Up to 4K×2K@60Hz output resolution
  • Max. width: 8192 pixels, max. height: 4000 pixels
12G-SDI 4 12G-SDI, 6G-SDI, 3G-SDI, HD- SDI and SD-SDI compatible
  • Up to 4K×2K@60Hz output resolution on each connector
  • For 3G-SDI, HD-SDI or SD-SDI outputs, SDI mosaic output is supported.
Note:
When two connectors are used for mosaic output, SDI 1 and SDI 2 are always used. SDI 3 and SDI 4 copy the output on SDI 1 and SDI 2 respectively.
Control Card
ETHERNET Gigabit Ethernet port Connect to the control PC.
USB 2 × USB 2.0 (Type-A)
  • Insert a USB drive to update the device.
  • Insert a USB drive to import the BKG or LOGO files
CONTROL UI Reserved
GENLOCK Connect to a sync source.
  • IN: Accept the sync source.
  • LOOP: Loop the sync source.

For more information, please visit the manufacturer's website
