SKYLINERS05 - Outdoor Pixel Bar

The SKYLINERS05 LED Pixel Bar features a frameless design, allowing for seamless splicing of images. It is also IP65 certified for outdoor use.

Module Information

• LED Configuration: Full colour 3-in-1 SMD1921
• Pixel Pitch (mm): 5
• Pixel Density (dot/m2): 40,000
• Module Size (mm)(W*H): 480*50
• Module Resolution (pixels): 96*10
• Driving Mode: Constant current, 1/10

Cabinet Information

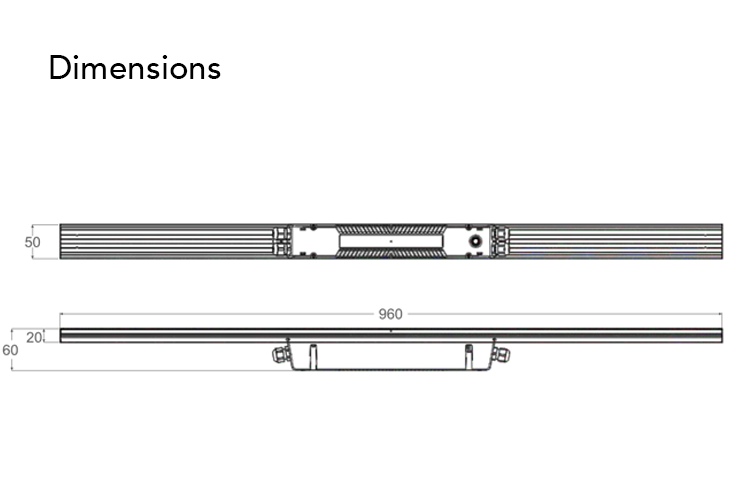

• Cabinet Size (W*H*D)(mm): 960*50*60
• Area (m2): 0.048
• Cabinet Resolution: 192*10
• Module Layout (W*H): 2*1
• Cabinet Weight (kg): 1.8
• Cabinet Material: Aluminium alloy
• IP Rating: IP65/54
• Signal Connection: 3/8P Connector

Electrical Parameters

• Power Input (V): AC100-240, 50/60Hz
• Peak Power Consumption (W): 35
• Average Power Consumption (W): 15

Image Processing

• Grayscale (bit): 14
• Frame Rate (Hz): 50/60
• Refresh Rate (Hz): 1920

Optical Parameters

• Colour Temperature (K): 3,000 - 10,000, adjustable
• White Balance Brightness (nits): 5,000
• Brightness Uniformity: ≥ 97%
• Chromaticity Uniformity: within +/- 0.003 Cx, Cy
• Contrast Ratio: 5000:1
• Horizontal Viewing Angle: 140°
• Vertical Viewing Angle: 140°
• Calibration: Colour calibrated, brightness calibrated
• Pixel Centre Offset: ≤ 3%

Operation and Storage Conditions

• Operating Temperature (°C): -20 to 40
• Storage Temperature (°C): -30 to 60
• Operating Humidity (RH): 10% to 80%
• Storage Humidity (RH): 10% to 85%
• Lifespan (H): 80,000

Optional

• Upgrade power and data connectors.

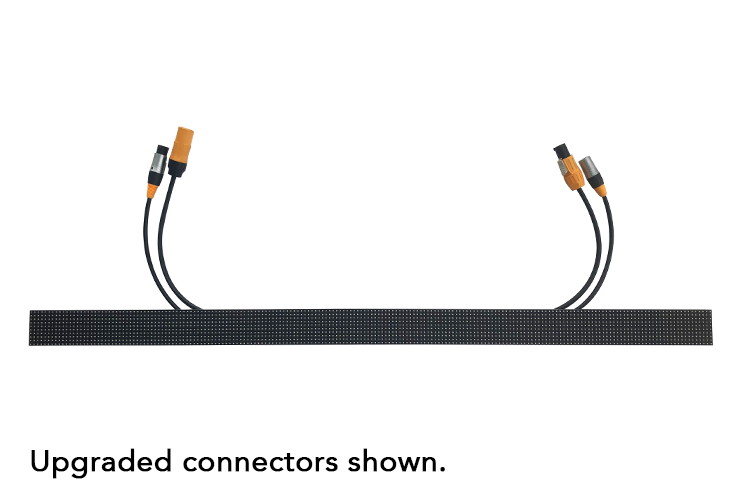

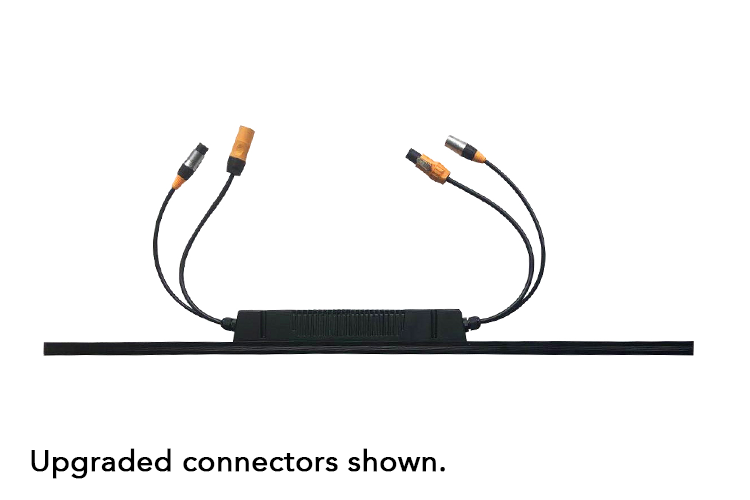

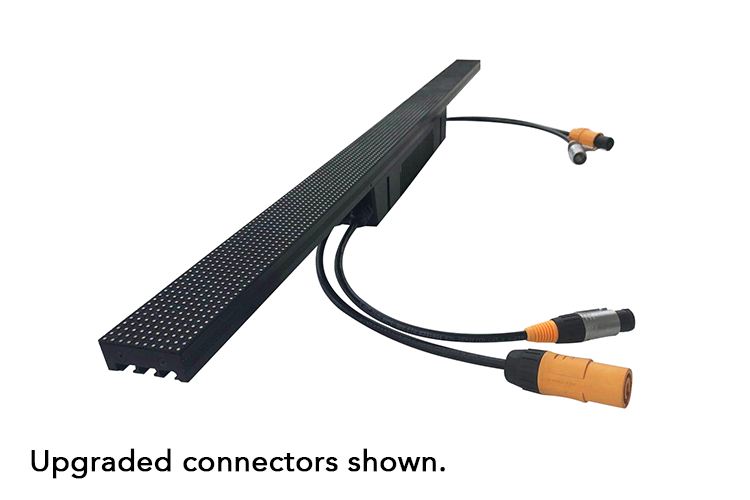

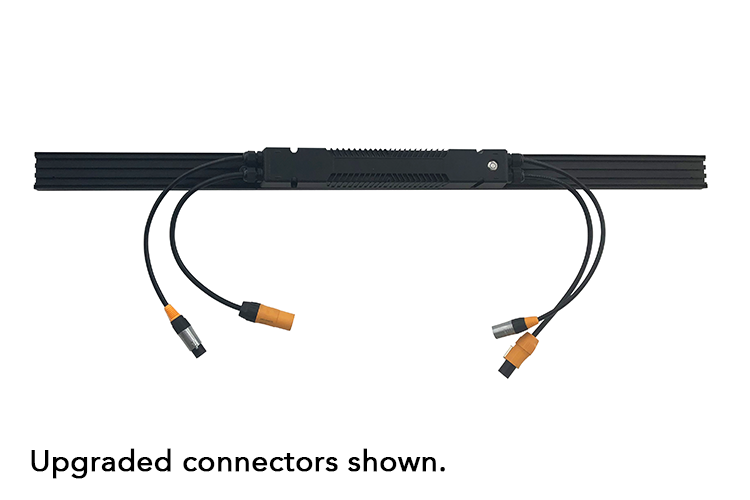

Note: The product images show the SKYLINERS05 with upgraded power and data connectors. The SKYLINERS05 comes standard with molded connectors.
