VD1.2IIDX - P1.2 Indoor Installation

Module Information

• Pixel Pitch (mm): 1.25
• Pixel Density (Dots/m²): 640,000
• LED: Mini SMD 4-in-1
• Size (W * H mm): 150.4 * 337.5

• Resolution: 120 * 270

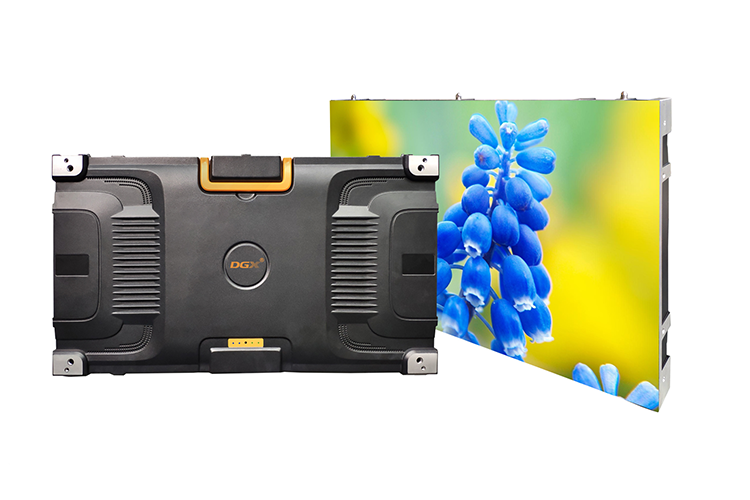

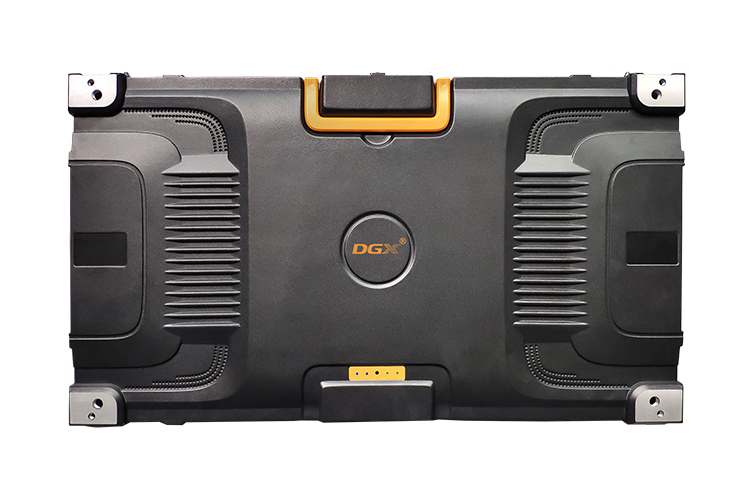

Cabinet Information

• Size (W * H * D mm): 600 * 337.5 * 50
• Resolution: 480 * 270
• Area (m²):  0.2025
• Weight (Kg): 6.4

• Planeness (mm): ≤
• Materials: Die-cast Aluminium
• Protection Rating: IP20
• Life Span (hrs): ≥ 80,000

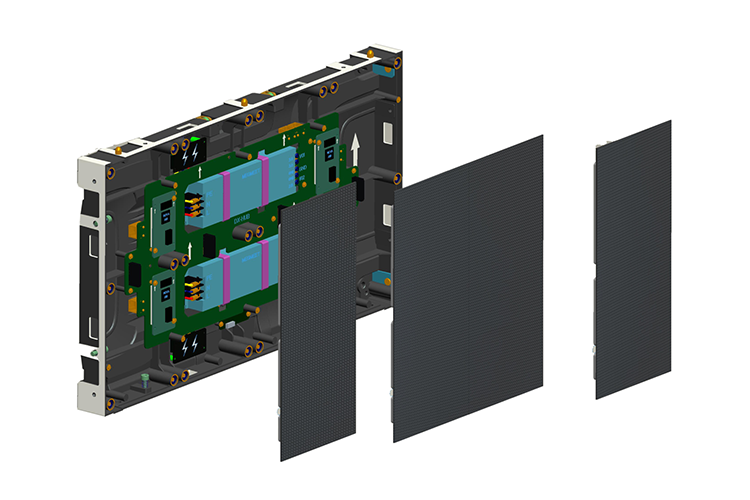

• Maintenance: Front Service

Optical Specification

• Brightness(cd/m²): 600
• Colour Temperature (K): 3,000 - 10,000, Adjustable
• Horizontal Viewing Angle: 160°
• Vertical Viewing Angle: 140°
• Pixel Centre Offset: ≤ 3%
• Brightness Uniformity: ≥ 97%
• Chromaticity Uniformity: within +/- 0.003 Cx, Cy
• Contrast Ratio: 5000:1

Electric Specification

• Power Supply Input Voltage:100 - 240V AC 50/60 Hz
• Cabinet Input Voltage: 36 - 75V DC
• Backup Power Supply: Optional
• Average Power Consumption (W/m²) : ≤ 150
• Max Power Consumption (W/m²) : ≤ 390

Image Processing

• Scan Mode: 1/30
• Grey Rate (bit): 14/16
• Refresh Rate (Hz): 3,840

• Data Connection: RJ45
• Backup Data Connection:

• Internal data connection between cabinet
• Data Storage Capacity (M):

• Production Data Storage:

• Correcting Data Storage:


Accessories

• Video Controller (required)

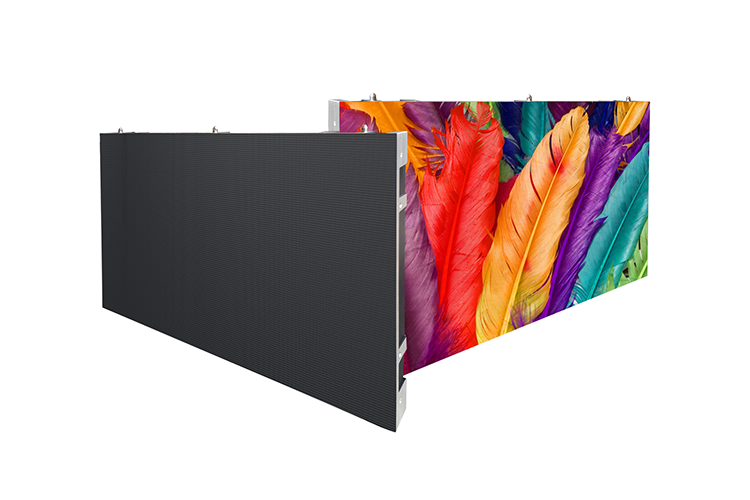

• Angle Coupler for curved display (optional)
