VD1.5II - P1.5 Indoor Installation

Module Information

• Pixel Pitch (mm): 1.524
• Pixel Density (Dots/m²): 430,556
• LED: SMD 3-in-1
• Size (W * H mm): 152.4 * 114.3
• Resolution: 100 * 75

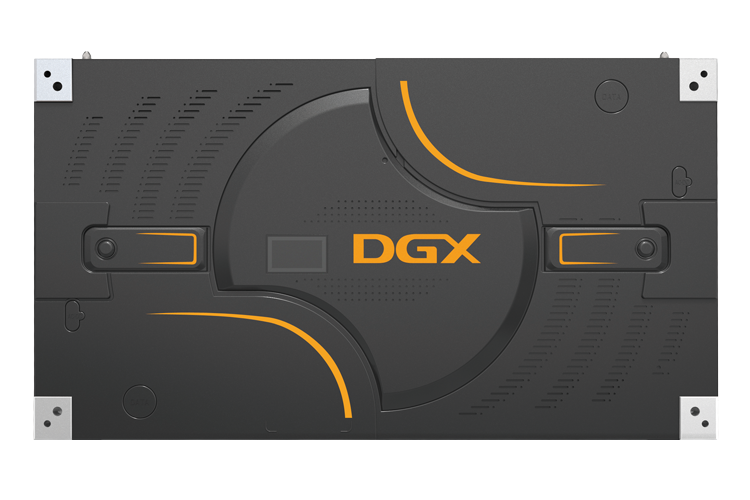

Cabinet Information

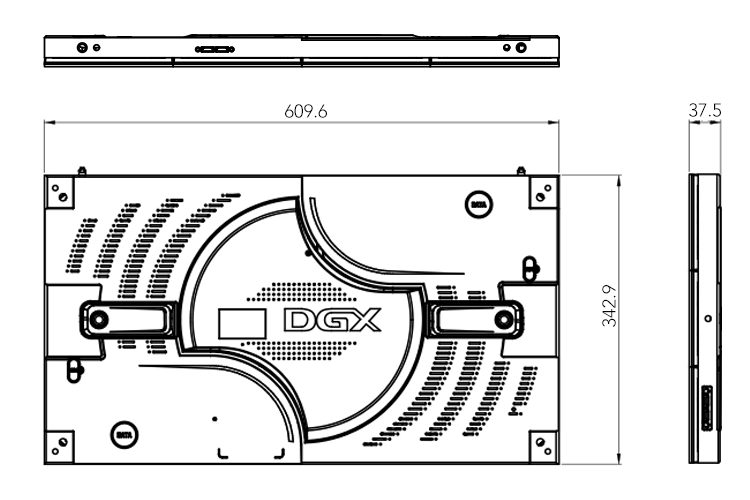

• Size (W * H * D mm): 609.6 * 342.9 * 37.5
• Resolution: 400 * 225
• Area (m²):  0.209
• Weight (Kg): 6.5
• Planeness (mm): ≤ 0.2
• Materials: Die-cast Aluminium
• Protection Rating: IP20
• Life Span (hrs): ≥ 80,000
• Maintenance: Front Service

Optical Specification

• Brightness (cd/m²): 800
• Colour Temperature (K): 3,000 - 9,600 Adjustable
• Horizontal Angle: 160°
• Vertical Angel: 140°
• Pixel Centre Offset: ≤ 3%
• Brightness Uniformity: ≥ 97%
• Chromaticity Uniformity: within +/- 0.003 Cx, Cy
• Contrast Ratio: 5000:1

Electric Specification

• Power Supply Input Voltage:100 - 240V AC 50/60 Hz
• Cabinet Input Voltage: 36 - 75V DC
• Backup Power Supply: Optional
• Average Power Consumption (W/m²) : ≤ 320
• Max Power Consumption (W/m²) : ≤ 830

Image Process

• Scan Mode: 1/25
• Grey Rate (bit): 16
• Refresh Rate (Hz): ≥ 4,000
• Data Connection: RJ45 In/Out
• Backup Data Connection: Optional
• Internal data connection between cabinet
• Data Storage Capacity (M): 16
• Production Data Storage: Enabled
• Correcting Data Storage: Enabled

Required Accessories

• Video Controller
• Angle Coupler for curved display (optional)
