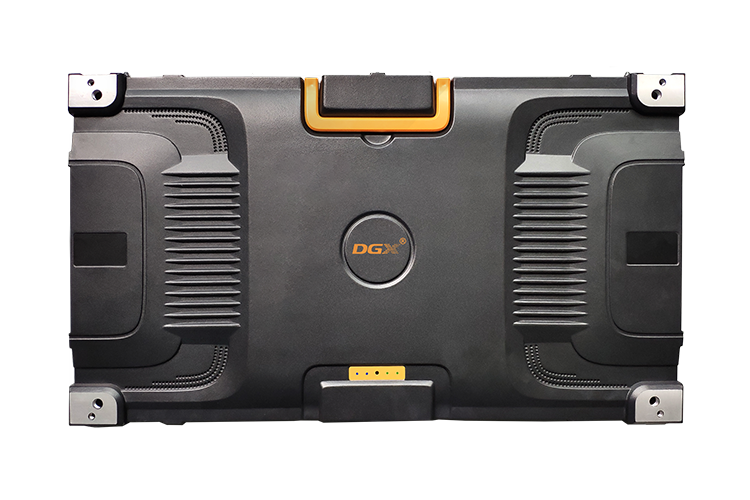

VD1.5IIDXS - P1.5 Indoor Installation

  • Sale
  • Regular price


Module Information

  • Pixel Pitch (mm): 1.5625
  • Pixel Density (Dots/m2): 409,600
  • LED: Full colour 3-in-1 LED1010
  • Size (W*H mm): 150.4*337.5
  • Resolution: 96*216

Cabinet Information

  • Size (W*H*D mm): 600*337.5*50
  • Resolution: 384*216
  • Module Layout (W*H): 4*1
  • Area (m2):  0.2025
  • Weight (kg): 6.4
  • Materials: Die-cast Aluminium
  • Protection Rating: IP20
  • Life Span (hrs): ≥ 80,000
  • Maintenance: Front Service

Optical Specification

  • Brightness(cd/m2): 600
  • Colour Temperature (K): 3,000 - 10,000, Adjustable
  • Horizontal Viewing Angle: 160°
  • Vertical Viewing Angle: 140°
  • Pixel Centre Offset: ≤ 3%
  • Brightness Uniformity: ≥ 97%
  • Chromaticity Uniformity: within +/- 0.003 Cx, Cy
  • Contrast Ratio: 5000:1

Electric Specification

  • Power Supply Input Voltage:100 - 240V AC 50/60 Hz
  • Cabinet Input Voltage: 36 - 75V DC
  • Backup Power Supply: Optional
  • Average Power Consumption (W/m2): 215
  • Max Power Consumption (W/m2): 500

Image Processing

  • Scan Mode: 1/30
  • Grey Rate (bit): 14/16
  • Frame Rate (Hz): 50/60
  • Refresh Rate (Hz): 3,840
  • Data Connection: RJ45

Accessories

  • Video Controller (required)
  • Angle Coupler for curved display (optional)
