VD1.8IIDL - P1.8 Indoor Installation

  • Sale
  • Regular price


Module Information

  • Pixel Pitch (mm): 1.846
  • Pixel Density (Dots/m2): 293,403
  • LED: SMD 3-in-1 (1515)
  • Size (W * H mm): 192 * 144
  • Resolution: 104 * 78

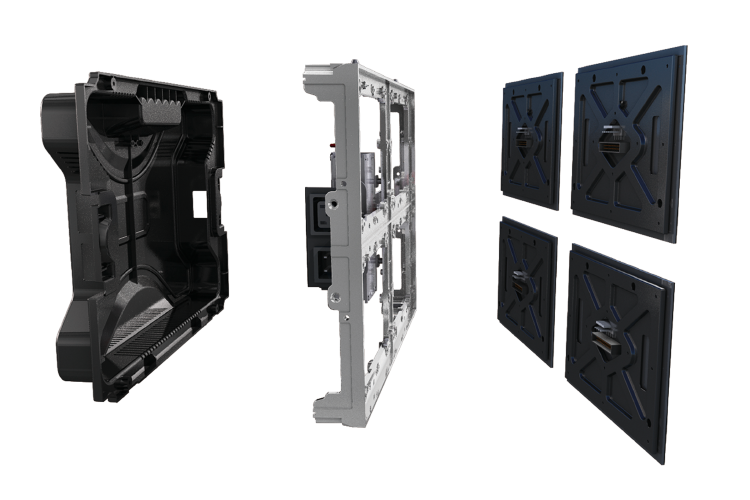

Cabinet Information

  • Size (W * H * D mm): 384 * 288 * 70
  • Resolution: 208 * 156
  • Area (m2):  0.11
  • Weight (Kg): 3
  • Planeness (mm): ≤ 0.2
  • Materials: Die-cast Aluminium
  • Protection Rating: IP31
  • Life Span (hrs): ≥ 80,000
  • Maintenance: LED Panel - Front Service, Cabinet - Front / Rear Service

Optical Specification

  • Brightness (cd/m2): 1,000
  • Colour Temperature (K): 3,000 - 9,600 Adjustable
  • Horizontal Angle: 160°
  • Vertical Angel: 140°
  • Pixel Centre Offset: ≤ 3%
  • Brightness Uniformity: ≥ 97%
  • Chromaticity Uniformity: within +/- 0.003 Cx, Cy
  • Contrast Ratio: 5000:1

Electric Specification

  • Power Supply Input Voltage:100 - 240V AC 50/60 Hz
  • Average Power Consumption ( W/Cabinet) : ≤ 35
  • Max Power Consumption ( W/Cabinet) : ≤ 100

Image Process

  • Scan Mode: 1/26
  • Grey Rate (bit): 14
  • Refresh Rate (Hz): ≥ 2,000

Required Accessories

  • Video Controller
  • Angle Coupler for curved display (optional)
