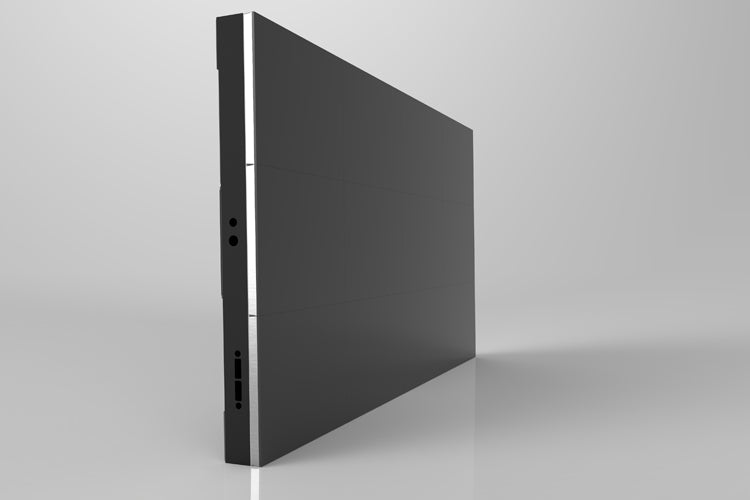

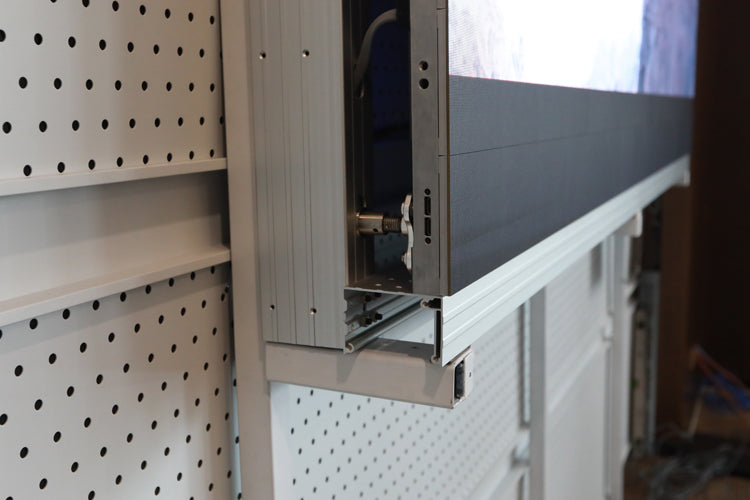

VD1.9II - P1.9 Indoor Installation

VD1.9II - P1.9 Indoor Installation

Regular price
Regular price Sale price
Sale Sold out

Module Information

  • Pixel Pitch (mm): 1.905
  • Pixel Density (Dots/m2): 275,556
  • LED: SMD 3-in-1
  • Size (W * H mm): 152.4 * 114.3
  • Resolution: 80 * 60

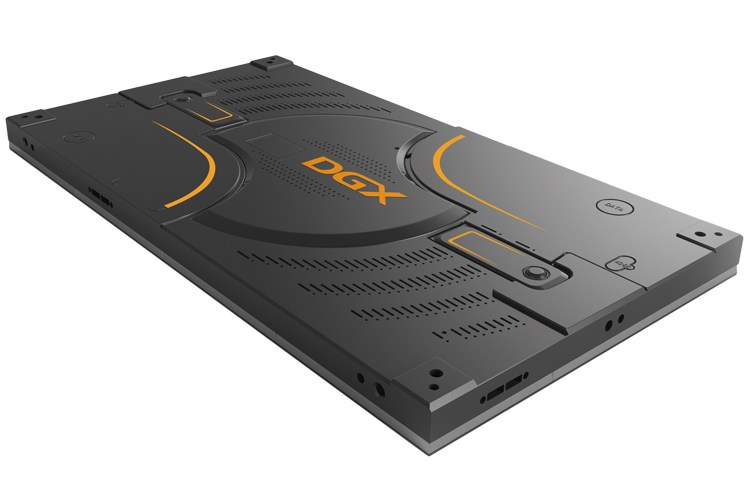

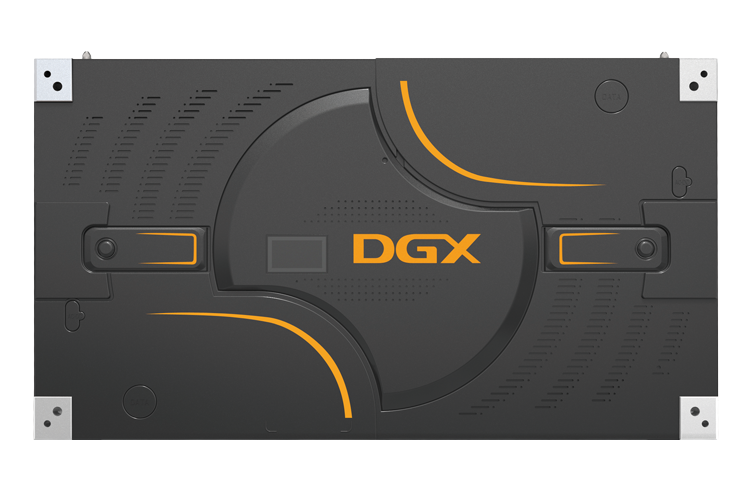

Cabinet Information

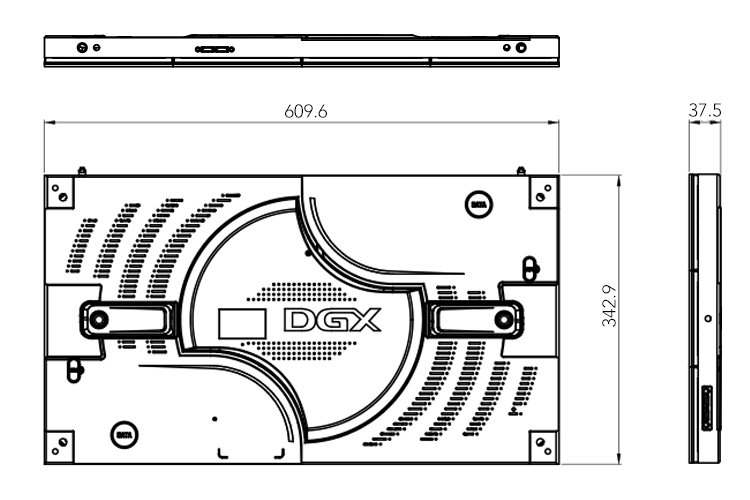

  • Size (W * H * D mm): 609.6 * 342.9 * 37.5
  • Resolution: 320 * 180
  • Area (m2):  0.209
  • Weight (Kg): 6.5
  • Planeness (mm): ≤ 0.2
  • Materials: Die-cast Aluminium
  • Protection Rating: IP20
  • Life Span (hrs): ≥ 80,000
  • Maintenance: Front Service

Optical Specification

  • Brightness (cd/m2): 800
  • Colour Temperature (K): 3,000 - 9,600 Adjustable
  • Horizontal Angle: 160°
  • Vertical Angel: 140°
  • Pixel Centre Offset: ≤ 3%
  • Brightness Uniformity: ≥ 97%
  • Chromaticity Uniformity: within +/- 0.003 Cx, Cy
  • Contrast Ratio: 5000:1

Electric Specification

  • Power Supply Input Voltage:100 - 240V AC 50/60 Hz
  • Cabinet Input Voltage: 36 - 75V DC
  • Backup Power Supply: Optional
  • Average Power Consumption (W/m2) : ≤ 300
  • Max Power Consumption (W/m2) : ≤ 800

Image Process

  • Scan Mode: 1/20
  • Grey Rate (bit): 16
  • Refresh Rate (Hz): ≥ 4,000
  • Data Connection: RJ45 In/Out
  • Backup Data Connection: Optional
  • Internal data connection between cabinet
  • Data Storage Capacity (M): 16
  • Production Data Storage: Enabled
  • Correcting Data Storage: Enabled

Required Accessories

  • Video Controller
  • Angle Coupler for curved display (optional)

      Specification Sheet Download
