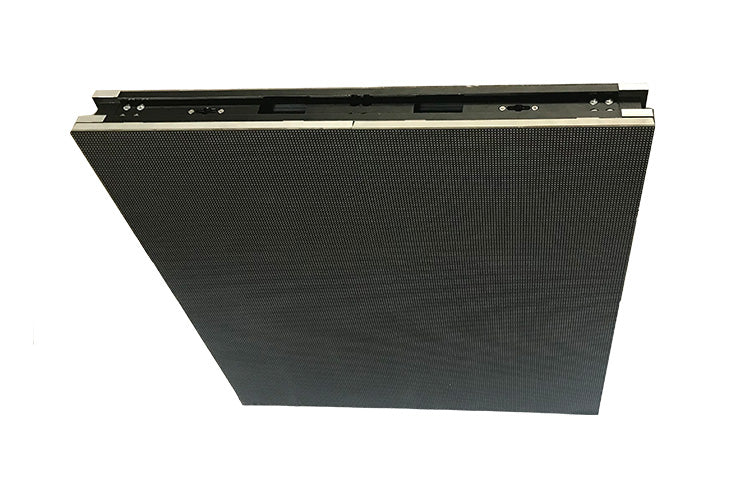

VD2.6IDS500 - P2.6 Indoor Double Sided Video Display Panel

DGX


Module Information

  • Pixel Pitch (mm): 2.604
  • Pixel Density (Dots/m2): 147,456
  • LED: SMD1515 3-in-1
  • Size (W * H mm): 250 * 250
  • Resolution: 96 * 96

Cabinet Information

  • Size (W * H * D mm): 500 * 500 * 70
  • Resolution: 192 * 192
  • Area (m2):  0.25
  • Weight (Kg): 9
  • Planeness (mm): ≤ 0.5
  • Materials: Die-cast Aluminium
  • Protection Rating: IP31
  • Life Span (hrs): 80,000
  • Maintenance: Front Service

Optical Specification

  • Brightness (cd/m2): ≥ 1,200
  • Colour Temperature (K): 3,000 - 9,600 Adjustable
  • Horizontal Angle: 140°
  • Vertical Angel: 140°
  • Best Visual Distance (m): 5 - 15
  • Pixel Centre Offset: ≤ 3%
  • Brightness Uniformity: ≥ 97%
  • Chromaticity Uniformity: within +/- 0.003 Cx, Cy
  • Contrast Ratio: 5000:1

Electric Specification

  • Input Voltage: 100 - 240V AC 50/60 Hz
  • Average Power Consumption (W) : ≤ 120
  • Max Power Consumption (W) : ≤ 290

Image Process

  • Scan Mode: 1/32
  • Refresh Rate (Hz): ≥ 2k

Required Accessories

  • Video Controller
  • Hanging Beam
