VD3.076OI - P3.076 Outdoor Installation

Module Information

• Pixel Pitch (mm): 3.076
• Pixel Density (Dots/m²): 97,344
• LED: SMD2727 3-in-1
• Size (W * H * D mm): 320 * 160 * 15
• Resolution: 104 * 52

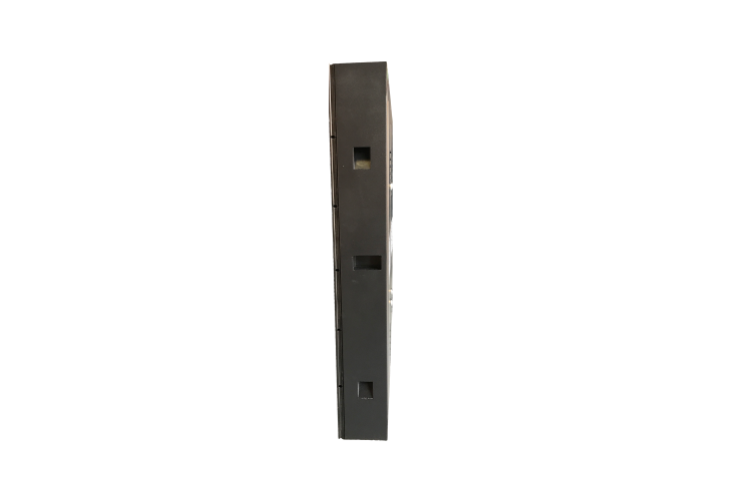

Cabinet Information

• Weight (Kg/m²): 55 (approx)

• Planeness (mm): ≤ 1
• Materials: Steel, Aluminium (optional)

• Protection Rating: LED Panel - IP65, Cabinet - IP54

• Life Span (hrs): 50,000
• Maintenance: Rear Service

Optical Specification

• Brightness (cd/m²): ≥ 5,000
• Colour Temperature (K): 3,000 - 10,000 Adjustable
• Horizontal Angle: 140°
• Vertical Angel: 140°
• Pixel Centre Offset: ≤ 3%
• Brightness Uniformity: ≥ 97%
• Chromaticity Uniformity: within +/- 0.003 Cx, Cy
• Contrast Ratio: 3000:1

Electric Specification

• Input Voltage: 100 - 240V AC 50/60 Hz

Image Process

• Refresh Rate (Hz): ≥ 1,920


Required Accessories

• Video Controller
• Brightness Sensor (optional)

• Seetronic PowerKON® IP65 In/Out (optional)
• Seetronic EtherKON® IP65 In/Out (optional)
