VD3.9IP500 - P3.91 Indoor Production

DGX


Module Information

  • Pixel Pitch (mm): 3.91
  • Pixel Density (Dots/m2): 65,536
  • LED: SMD1921 3-in-1
  • Size (W * H * D mm): 500 * 250 * 14.5
  • Resolution: 128 * 64

Cabinet Information

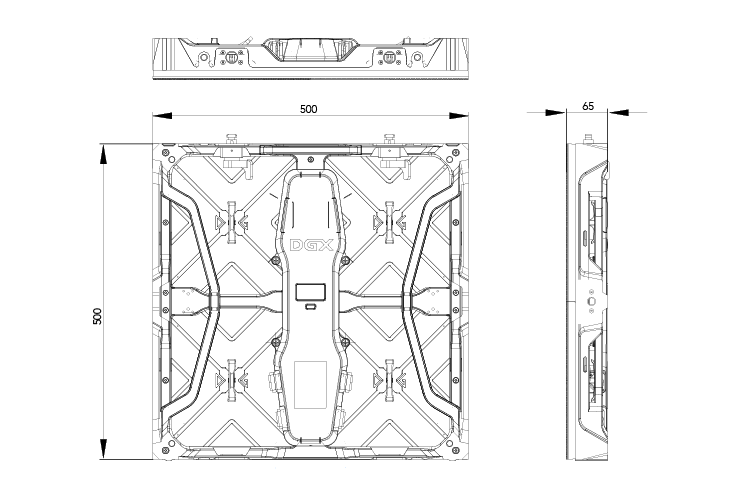

  • Size (W * H * D mm): 500 * 500  * 65
  • Resolution: 128 * 128
  • Area (m2):  0.25
  • Weight (Kg): 6.8
  • Planeness (mm): ≤ 1
  • Materials: Die-cast Aluminium
  • Protection Rating: IP20
  • Life Span (hrs): 80,000
  • Maintenance: LED Panel - Front / Rear Service, Cabinet - Rear Service

Optical Specification

  • Brightness (cd/m2): 800 - 1,200
  • Colour Temperature (K): 3,000 - 10,000 Adjustable
  • Horizontal Angle: 140°
  • Vertical Angel: 120°
  • Pixel Centre Offset: ≤ 3%
  • Brightness Uniformity: ≥ 97%
  • Chromaticity Uniformity: within +/- 0.003 Cx, Cy
  • Contrast Ratio: 3000:1

Electric Specification

  • Input Voltage: 100 - 240V AC 50/60 Hz
  • Average Power Consumption (W/m2) : ≤ 240
  • Max Power Consumption (W/m2) : ≤ 560
  • Power Connection: Seetronic powerKON® In/Out

Image Process

  • Scan Mode: 1/16
  • Refresh Rate (Hz): ≥ 2K
  • Data Connection: Seetronic etherKON®

Required Accessories

  • Video Controller
  • Hanging Beam
  • Angle Coupler for Curved Display (optional)
  • Road Case (optional)
