VD3.9OP500RO - P3.91 Outdoor Production

VD3.9OP500RO - P3.91 Outdoor Production

Regular price
Regular price Sale price
Sale Sold out

This product is discontinued



Module Information

  • Pixel Pitch (mm): 3.91
  • Pixel Density (Dots/m2): 65,536
  • LED: SMD1921 3-in-1
  • Size (W * H * D mm): 500 * 250 * 14.5
  • Resolution: 128 * 64

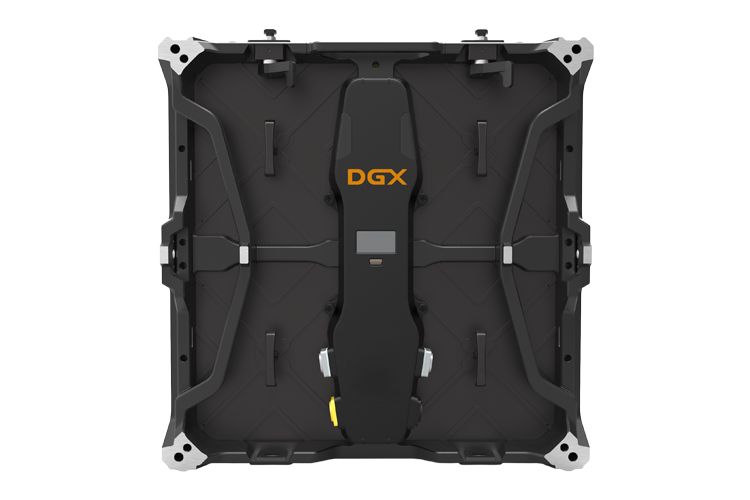

Cabinet Information

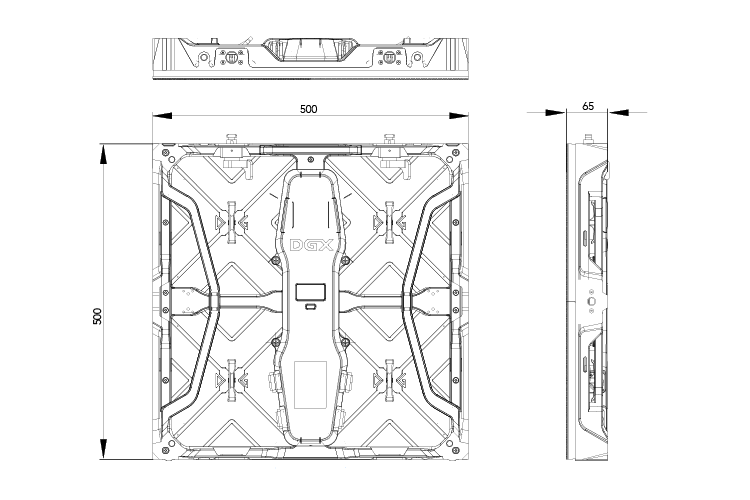

  • Size (W * H * D mm): 500 * 500  * 65
  • Resolution: 128 * 128
  • Area (m2):  0.25
  • Weight (Kg): 7
  • Planeness (mm): ≤ 1
  • Materials: Die-cast Aluminium
  • Protection Rating: IP65
  • Life Span (hrs): 80,000
  • Maintenance: Rear Service

Optical Specification

  • Brightness (cd/m2): 3,500
  • Colour Temperature (K): 3,000 - 10,000 Adjustable
  • Horizontal Angle: 140°
  • Vertical Angel: 120°
  • Pixel Centre Offset: ≤ 3%
  • Brightness Uniformity: ≥ 97%
  • Chromaticity Uniformity: within +/- 0.003 Cx, Cy
  • Contrast Ratio: 5000:1

Electric Specification

  • Input Voltage: 100 - 240V AC 50/60 Hz
  • Average Power Consumption (W/m2) : ≤ 250
  • Max Power Consumption (W/m2) : ≤ 600
  • Power Connection: Seetronic powerKON® IP65 In/Out

Image Process

  • Scan Mode: 1/16
  • Refresh Rate (Hz): ≥ 2K
  • Data Connection: Seetronic etherKON® IP65

Required Accessories

  • Video Controller
  • Hanging Beam
  • Road Case (optional)

    Specification Sheet Download

    Engineering and safe working for RI/RO free standing frame

    Engineering and safe working for RI/RO hanging bars

    Standing Installation
