VD3IP - P3 Indoor Production

Event Pixels


Module Information

  • Pixel Pitch (mm): 3
  • Pixel Density (Dots/m2): 111,111
  • LED: SMD2121 3-in-1
  • Size (W * H * D mm): 192 * 192 * 15
  • Resolution: 64 * 64

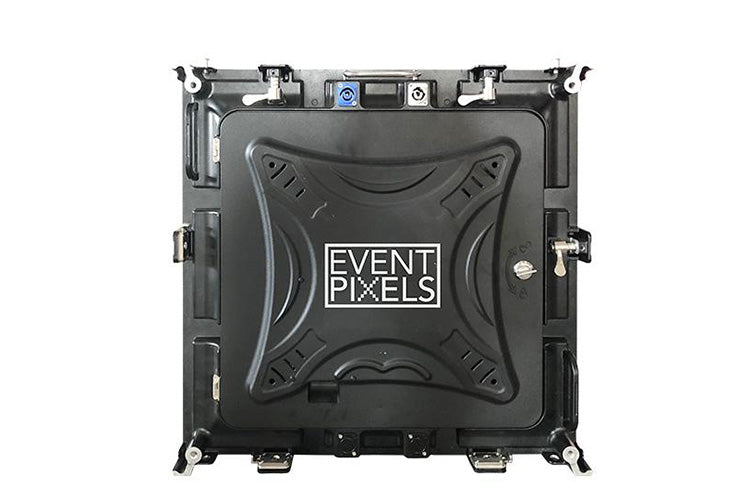

Cabinet Information

  • Size (W * H * D mm): 576 * 576 * 85
  • Resolution: 192 * 192
  • Area (m2):  0.331776
  • Weight (Kg): 12.5
  • Planeness (mm): ≤ 0.5
  • Materials: Die-cast Aluminium
  • Protection Rating: IP20
  • Life Span (hrs): 50,000
  • Maintenance: Rear Service

Optical Specification

  • Brightness (cd/m2): ≥ 2,000
  • Colour Temperature (K): 3,000 - 10,000 Adjustable
  • Horizontal Angle: 140°
  • Vertical Angel: 140°
  • Pixel Centre Offset: ≤ 3%
  • Brightness Uniformity: ≥ 97%
  • Chromaticity Uniformity: within +/- 0.003 Cx, Cy
  • Contrast Ratio: 2000:1

Electric Specification

  • Input Voltage: 100 - 240V AC 50/60 Hz
  • Average Power Consumption (W/m2) : ≤ 600
  • Max Power Consumption (W/m2) : ≤ 1,000
  • Power Connection: Powercon In/Out

Image Process

  • Scan Mode: 1/16
  • Refresh Rate (Hz): ≥ 1,920
  • Data Connection: Ethercon In/Out

Required Accessories

  • Video Controller
  • Hanging Beam
  • Road Case (optional)
