VD4.8OP1000RO - P4.81 Outdoor Production

This product is discontinued

Module Information

• Pixel Pitch (mm): 4.81
• Pixel Density (Dots/m²): 43,264
• LED: SMD2020 3-in-1
• Size (W * H * D mm): 500 * 250 * 14.5
• Resolution: 104 * 52

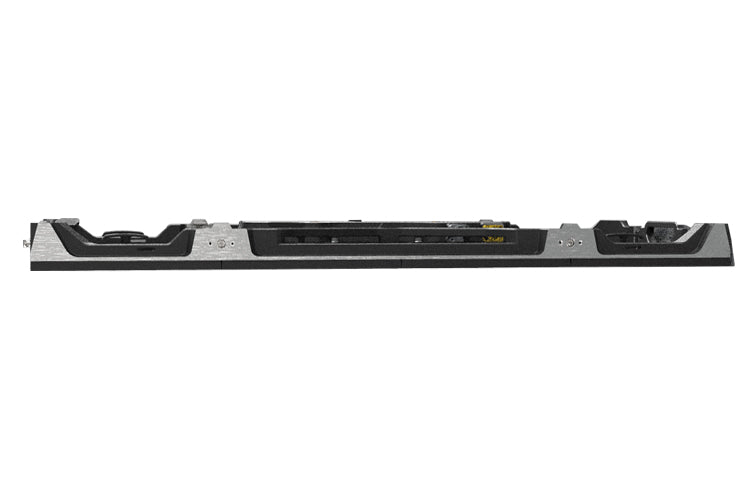

Cabinet Information

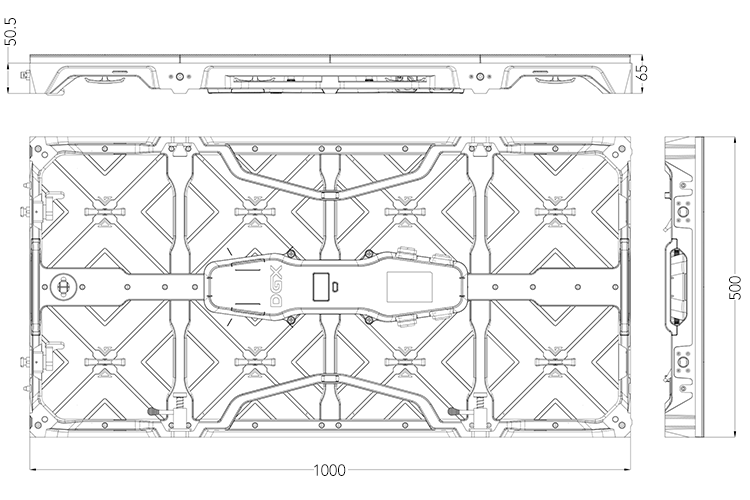

• Size (W * H * D mm): 500 * 1,000  * 65

• Resolution: 104 * 208
• Area (m²):  0.5
• Weight (Kg): 12
• Planeness (mm): ≤ 1

• Materials: Die-cast Aluminium

• Protection Rating: IP65
• Life Span (hrs): 80,000
• Maintenance: Rear Service

Optical Specification

• Brightness (cd/m²): 3,500

• Colour Temperature (K): 3,000 - 10,000 Adjustable
• Horizontal Angle: 140°
• Vertical Angel: 120°
• Pixel Centre Offset: ≤ 3%
• Brightness Uniformity: ≥ 97%
• Chromaticity Uniformity: within +/- 0.003 Cx, Cy
• Contrast Ratio: 5000:1

Electric Specification

• Input Voltage: 100 - 240V AC 50/60 Hz
• Average Power Consumption (W/m²) : ≤ 240

• Max Power Consumption (W/m²) : ≤ 580

• Power Connection: Seetronic powerKON® IP65 In/Out

Image Process

• Scan Mode: 1/13
• Refresh Rate (Hz): ≥ 2K

• Data Connection: Seetronic etherKON® IP65

Required Accessories

• Video Controller
• Hanging Beam
• Road Case (optional)
