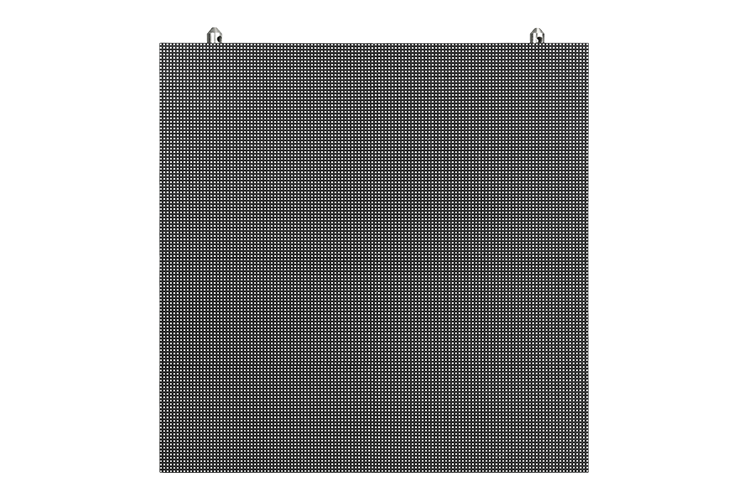

VD4OI - P4 Outdoor Installation

Module 1

• Pixel Pitch (mm): 4
• Pixel Density (Dots/m²): 62,500
• LED: SMD1921 3-in-1
• Size (W * H * D mm): 256 * 128 * 15
• Resolution: 64 * 32

Module 2:

• Pixel Pitch (mm): 4
• Pixel Density (Dots/m²): 62,500
• LED: SMD1921 3-in-1
• Size (W * H * D mm): 320 *160 * 15
• Resolution: 80 * 40
• Optional front service

Cabinet Information

• Weight (Kg/m²): 55 (approx)
• Planeness (mm): ≤ 1
• Materials: Steel, Aluminium (optional)

• Protection Rating: LED Panel - IP65, Cabinet - IP54

• Life Span (hrs): 50,000

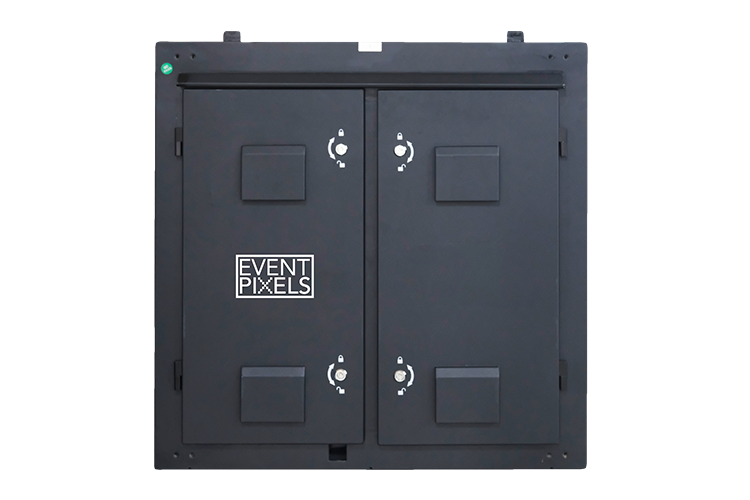

• Maintenance: Rear Service

Optical Specification

• Brightness (cd/m²): ≥ 5,000
• Colour Temperature (K): 3,000 - 10,000 Adjustable
• Horizontal Angle: 140°
• Vertical Angel: 140°
• Pixel Centre Offset: ≤ 3%
• Brightness Uniformity: ≥ 97%
• Chromaticity Uniformity: within +/- 0.003 Cx, Cy
• Contrast Ratio: 3000:1

Electric Specification

• Input Voltage: 100 - 240V AC 50/60 Hz
• Average Power Consumption (W/m²) : ≤ 720
• Max Power Consumption (W/m²) : ≤ 1,200

Image Process

• Scan Mode: 1/8
• Refresh Rate (Hz): ≥ 1,920

Required Accessories

• Video Controller
• Hanging Beam
• Brightness Sensor (optional)
• Seetronic PowerKON® IP65 In/Out (optional)
• Seetronic EtherKON® IP65 In/Out (optional)
