VD4OP - P4 Outdoor Production

Event Pixels


Module Information

  • Pixel Pitch (mm): 4
  • Pixel Density (Dots/m2): 62,500
  • LED: SMD1921 3-in-1
  • Size (W * H * D mm): 256 * 128 * 15
  • Resolution: 64 * 32

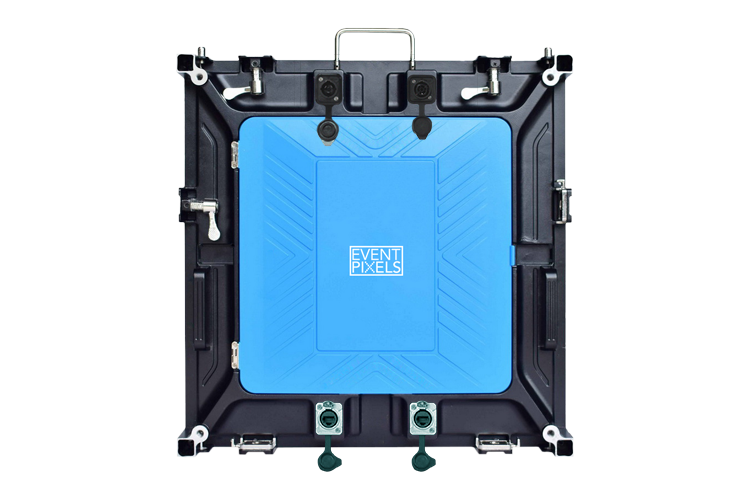

Cabinet Information

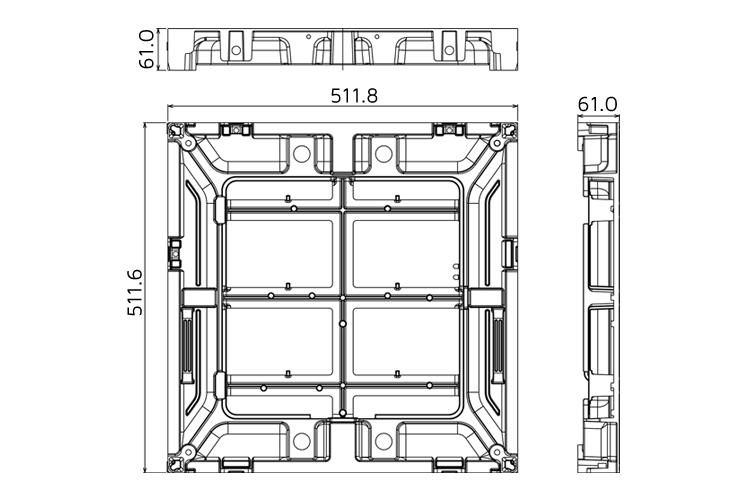

  • Size (W * H * D mm): 512 * 512 * 75
  • Resolution: 128 * 128
  • Area (m2):  0.262144
  • Weight (Kg): 8.7
  • Planeness (mm): ≤ 1
  • Materials: Die-cast Aluminium
  • Protection Rating: IP64
  • Life Span (hrs): 50,000
  • Maintenance: Rear Service

Optical Specification

  • Brightness (cd/m2): ≥ 5,000
  • Colour Temperature (K): 3000 - 10,000 Adjustable
  • Horizontal Angle: 140°
  • Vertical Angel: 140°
  • Pixel Centre Offset: ≤ 3%
  • Brightness Uniformity: ≥ 97%
  • Chromaticity Uniformity: within +/- 0.003 Cx, Cy
  • Contrast Ratio: 3000:1

Electric Specification

  • Input Voltage: 100 - 240V AC 50/60 Hz
  • Average Power Consumption (W/m2) : ≤ 720
  • Max Power Consumption (W/m2) : ≤ 1200
  • Power Connection: Seetronic powerKON® IP65 In/Out

Image Process

  • Scan Mode: 1/8
  • Refresh Rate (Hz): ≥ 1,920
  • Data Connection: Seetronic EtherKON® IP65

Required Accessories

  • Video Controller
  • Hanging Beam
  • Road Case (optional)
