VD5II - P5 Indoor Installation

Event Pixels


Module Information

  • Pixel Pitch (mm): 5
  • Pixel Density (Dots/m2): 40,000
  • LED: SMD2121 3-in-1
  • Size (W * H * D mm): 320 * 160 * 15
  • Resolution: 64 * 32

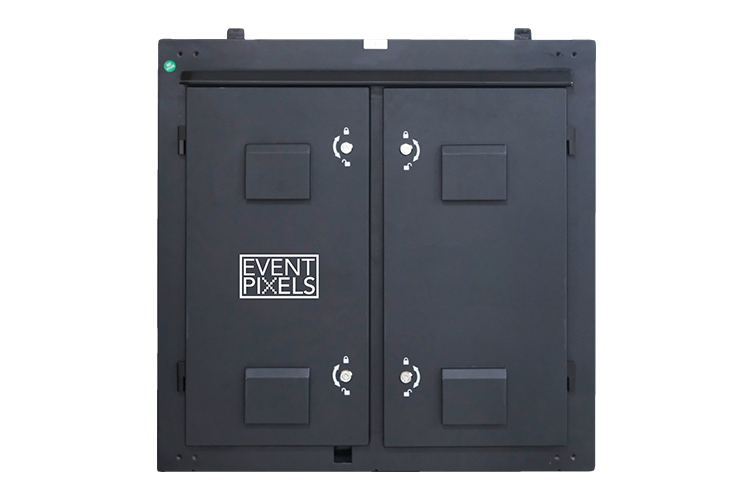

Cabinet Information

  • Size (W * H * D mm): 960 * 960 * 135 / Ratio of Module
  • Resolution: 192 * 192 / Ratio of Module
  • Area (m2):  0.9216 / Ratio of Module
  • Weight (Kg/m2): 45 (Approx)
  • Planeness (mm): ≤ 1
  • Materials: Steel, Aluminium (Optional)
  • Protection Rating: IP20
  • Life Span (hrs): 50,000
  • Maintenance: Rear Service / Front Service (Optional)

Optical Specification

  • Brightness (cd/m2): ≥ 1,200
  • Colour Temperature (K): 3,000 - 10,000 Adjustable
  • Horizontal Angle: 140°
  • Vertical Angel: 140°
  • Pixel Centre Offset: ≤ 3%
  • Brightness Uniformity: ≥ 97%
  • Chromaticity Uniformity: within +/- 0.003 Cx, Cy
  • Contrast Ratio: 2000:1

Electric Specification

  • Input Voltage: 100 - 240V AC 50/60 Hz
  • Average Power Consumption (W/m2) : ≤ 300
  • Max Power Consumption (W/m2) : ≤ 450

Image Process

  • Scan Mode: 1/16
  • Refresh Rate (Hz): ≥ 1,920

Required Accessories

  • Video Controller
  • Hanging Beam
  • PowerCON In/Out (Optional)
  • EtherCON In/Out (Optional)
