VD6IP - P6 Indoor Production

Module Information

• Pixel Pitch (mm): 6
• Pixel Density (Dots/m²): 27,777
• LED: SMD2121 3-in-1
• Size (W * H * D mm): 192 * 192 * 15
• Resolution: 32 * 32

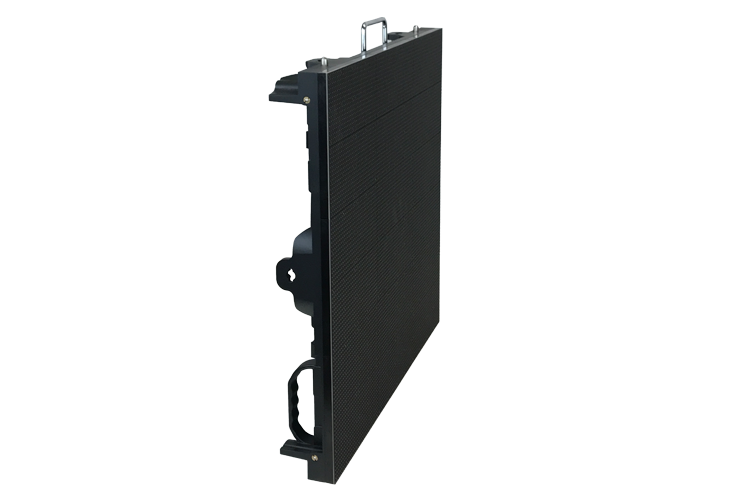

Cabinet Information

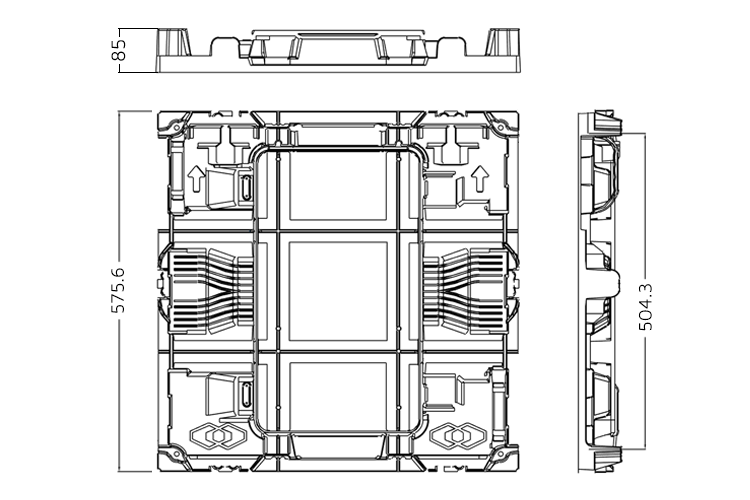

• Size (W * H * D mm): 576 * 576 * 85
• Resolution: 96 * 96
• Area (m²):  0.331776
• Weight (Kg): 8
• Planeness (mm): ≤ 0.5
• Materials: Die-cast Aluminium
• Protection Rating: IP20
• Life Span (hrs): 50,000

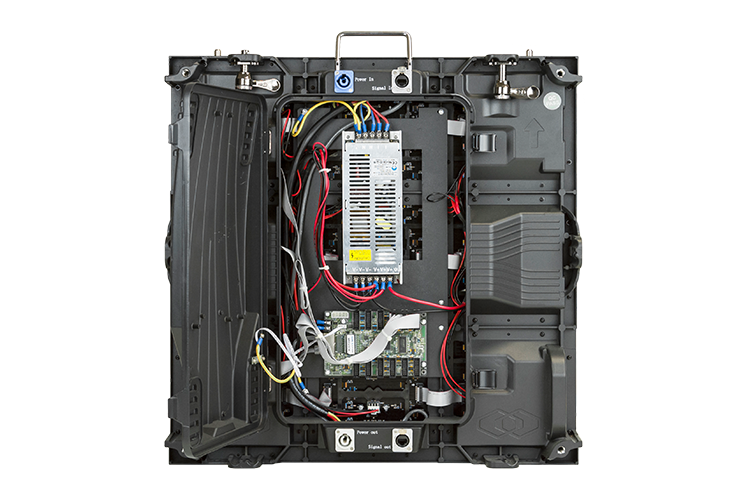

• Maintenance: Rear Service

Optical Specification

• Brightness (cd/m²): ≥ 1,000
• Colour Temperature (K): 3,000 - 10,000 Adjustable
• Horizontal Angle: 140°
• Vertical Angel: 140°
• Pixel Centre Offset: ≤ 3%
• Brightness Uniformity: ≥ 97%
• Chromaticity Uniformity: within +/- 0.003 Cx, Cy
• Contrast Ratio: 2000:1

Electric Specification

• Input Voltage: 100 - 240V AC 50/60 Hz
• Average Power Consumption (W/m²) : ≤ 200
• Max Power Consumption (W/m²) : ≤ 400
• Power Connection: Powercon In/Out

Image Process

• Scan Mode: 1/8
• Refresh Rate (Hz): ≥ 1,920
• Data Connection: Ethercon In/Out

Required Accessories

• Video Controller
• Hanging Beam

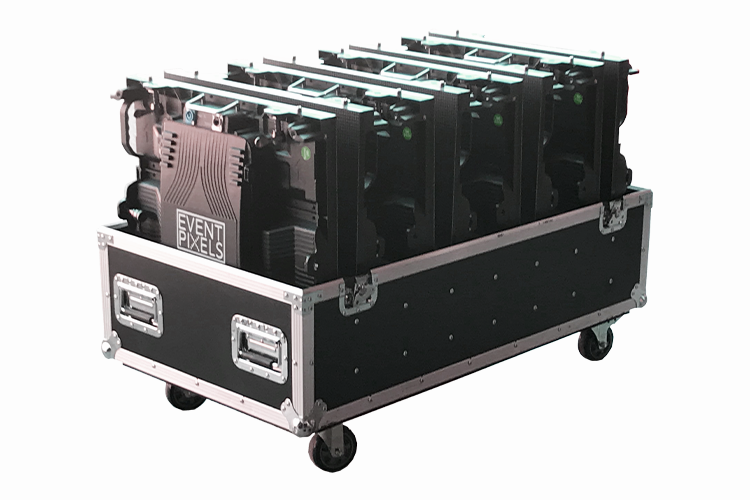

• Road Case (optional)
