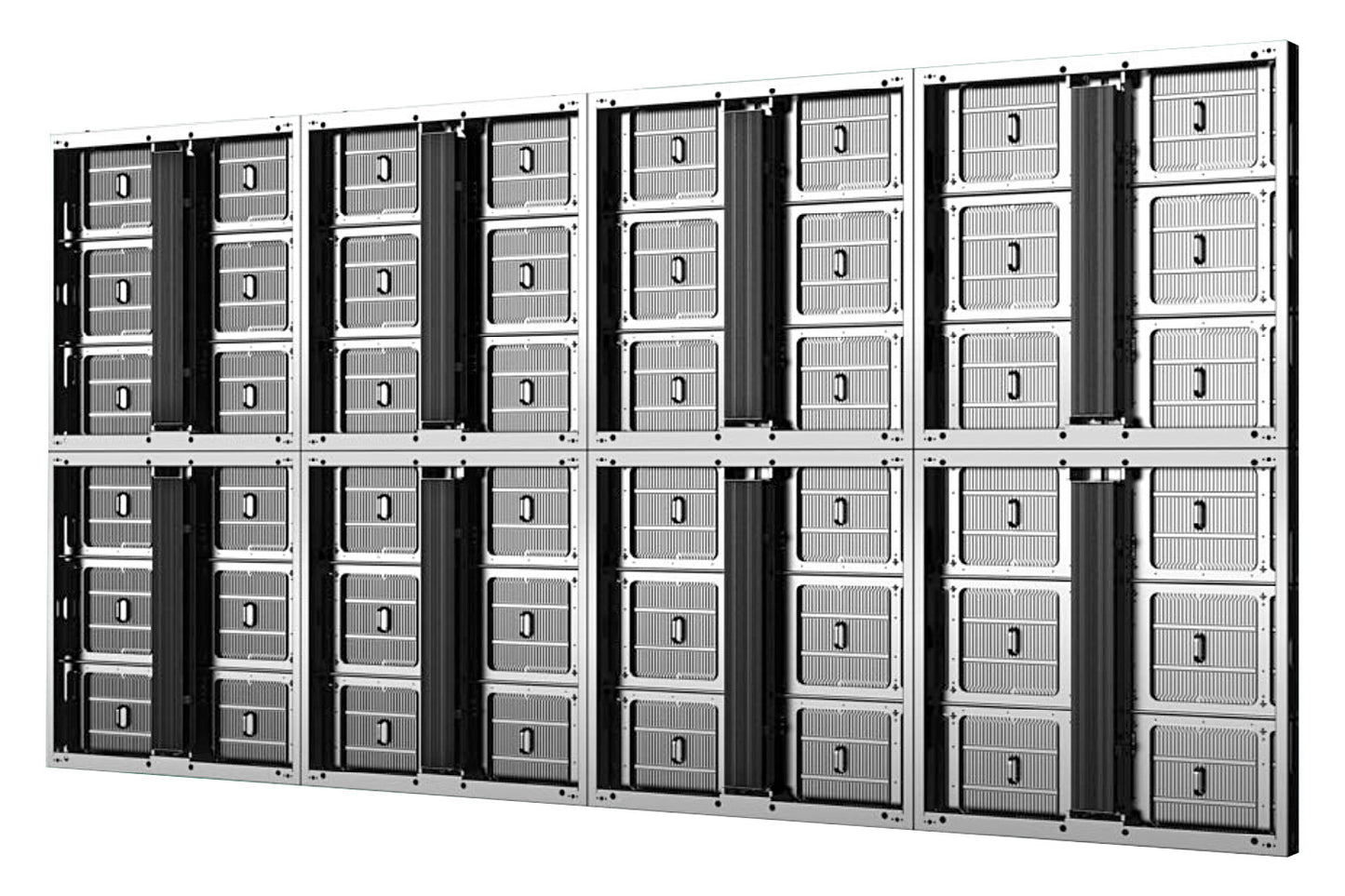

VD8OI960V
VD8OI960V
SPECIFICATIONS:
| Model | VD8OI960V |
| Pixel pitch(mm) | 8mm |
| Pixel Matrix Per SQM | 15625 |
| Pixel Configuration | SMD3535 |
| Brightness(nits) | 7000 nits |
| Power Con.(Max/Avg) | 550/190 w/sq.m |
| Modules Dimension(mm) | 480mm x 320mm |
| Modules Resolution | 60 x 40 |
| Cabinets Dimension | 960mm x 960mm x 75mm(W x H x D) |
| Cabinet Resolution | 120 x 120 |
| Cabinets Weight(kg) | 28kg |
| Serivice Access | Front & Rear |
| Refresh Rate(HZ) | ≥3840 |
| Gray Scale(bit) | 16 |
| Viewing Angle(H/V) | 160°/160° |
| IP Rate | IP66 |
| Input Voltage(AC) | 110V / 240V 50/60 HZ |
| Operating Temperature | -40° ~ 100 ° |
| Lifespan(hrs) | >100,000(hrs) |
