The VDSN300 is an LED display controller developed by NovaStar. It supports 1x DVI input, 1x audio input, and 2x Ethernet outputs. A single VDSN300 supports input resolutions up to 1920×1200@60Hz.
The VDSN300 communicates with PC via type-B USB port. Multiple VDSN300 units can be cascaded via UART port.
As a highly cost-effective controller, the VDSN300 can be mainly used in the rental and fixed installation applications, such as live events, security monitoring centers, and various sports centers
Features:
1 × DVI input
1 × audio input
1 × type-B USB control port
UART control ports to cascade devices for uniform control.
Dual Ethernet outputs.
Supports the new generation of NovaStar calibration technology, which is fast and efficient.
1 × light sensor connector.
Supports resolutions up to 2048×668@60Hz and downward compatibility.
Supports a variety of video formats.
Specifications:

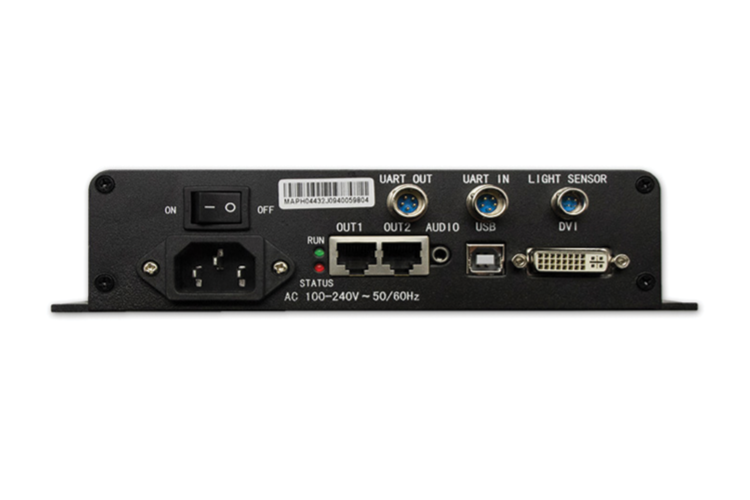

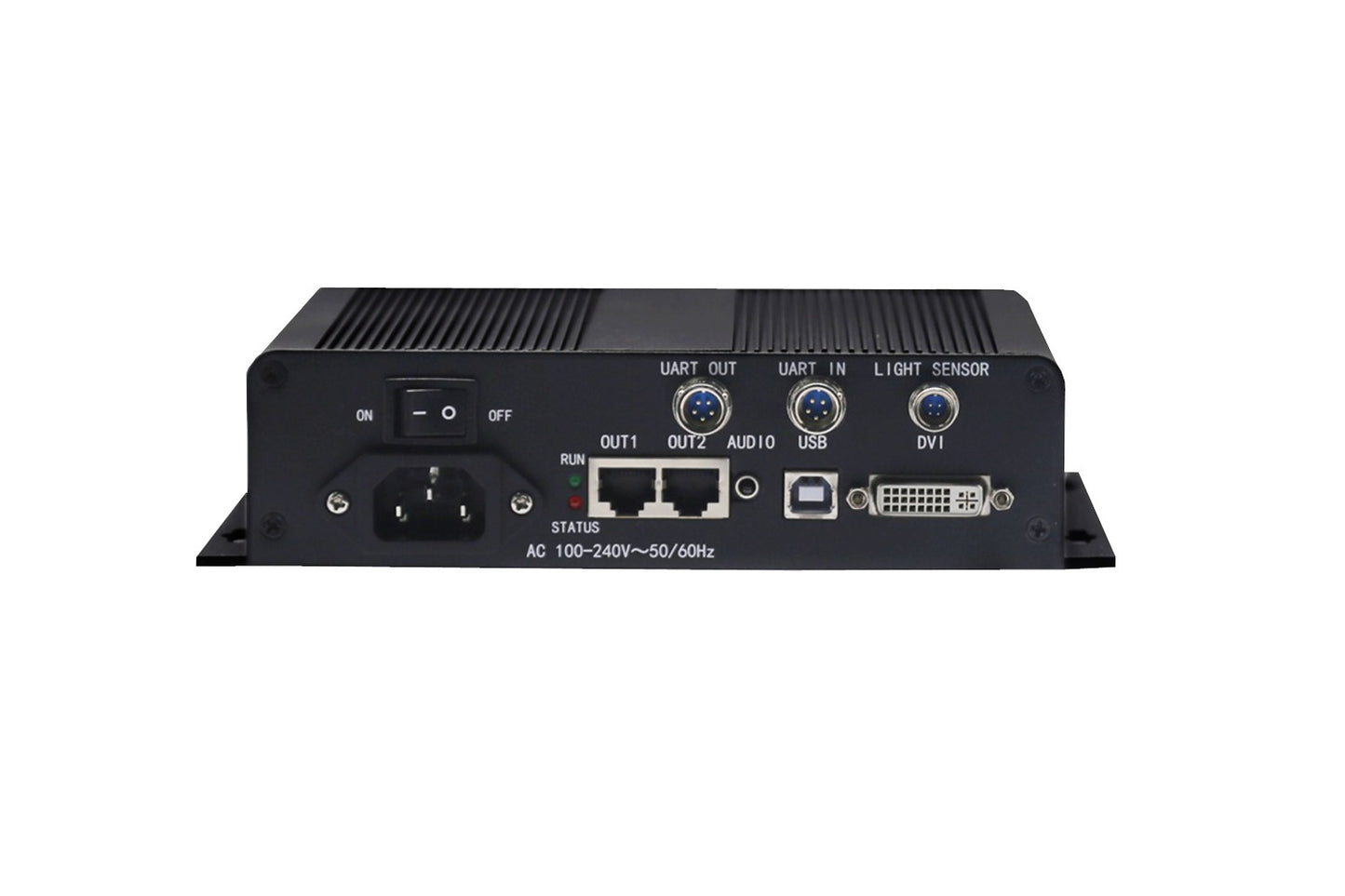

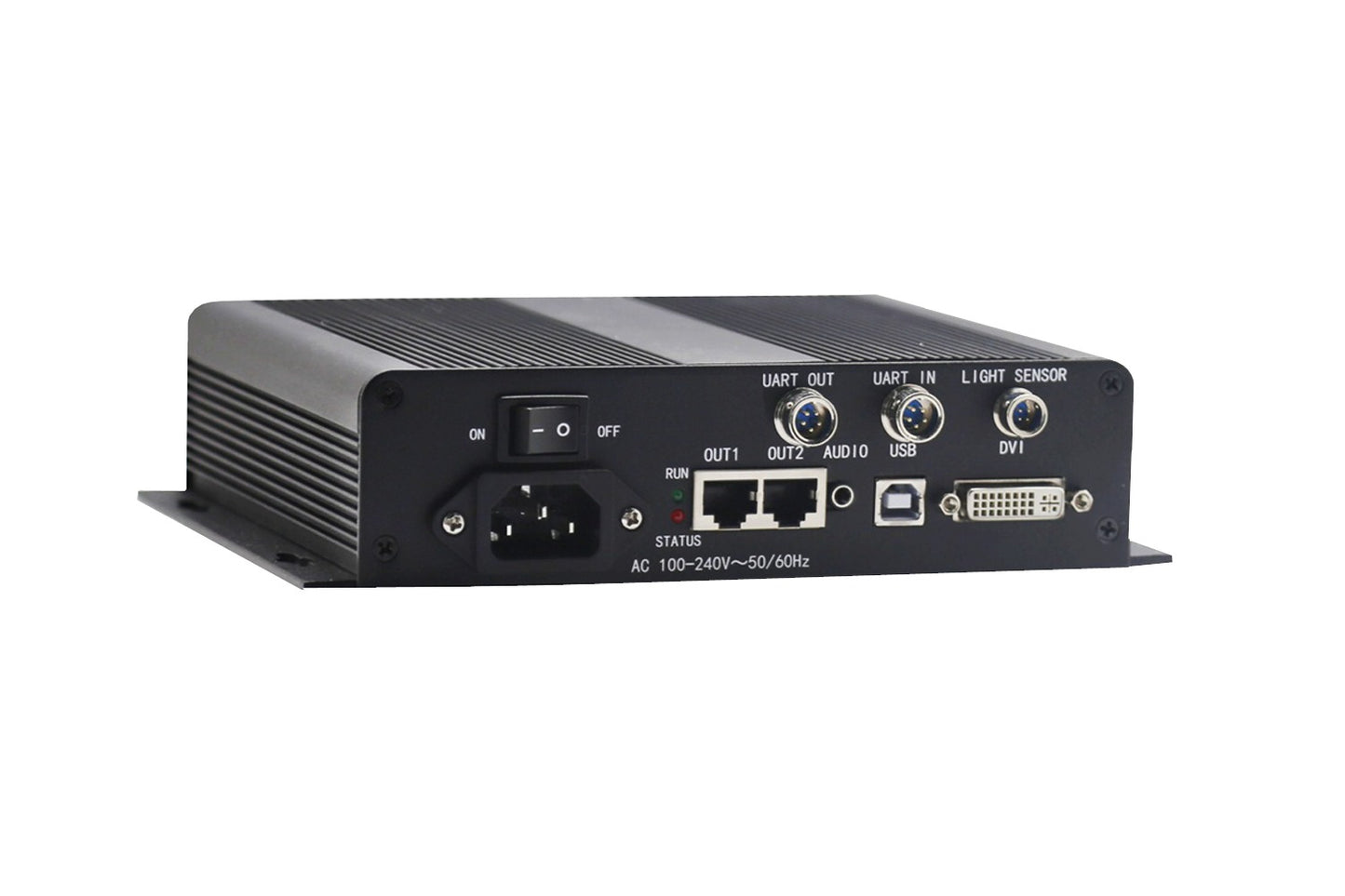

Connector
Connector Name
Description
Input
DVI IN
Single-link DVI connector
Resolution up to 1920×1200@60Hz and downward compatible
Custom resolutions supported:
Resolution with maximum width: 3840×600@60Hz Resolution with maximum height: 800×2560@60Hz
AUDIO
Audio input connector
Output
RJ45 × 2
2 Gigabit Ethernet outputs
Maximum loading capacity of a single Ethernet port: 650,000 pixels
Support redundancy between Ethernet ports.
Function
LIGHT SENSOR
Connect to light sensor to monitor ambient brightness to realize automatic screen brightness adjustment.
Connector
Connector Name
Description
Control
UART IN/OUT
Input and output ports for cascading devices
USB
Type-B USB control port for connecting to PC
Power
AC 100V-240V~50/60Hz
Indicators
RUN
Device operating indicator. Working status:
Flashing slowly: Video input unavailable
Flashing normally: Video input available
Flashing rapidly: The screen is displaying startup image.
Breathing: Ethernet port redundancy has taken effect.
STATUS
Device power indicator. Working status:
On: The power supply is normal.
Off: The power is not supplied, or the power supply is abnormal.
