- 1 × DVI input
- 1 × HDMI input
- 4 × Gigabit Ethernet outputs
- Supports the new generation of NovaStar calibration technology, which is fast and efficient.
- Supports resolutions up to 1920×1200@60Hz and downward compatibility.
- Multiple controllers can be cascaded.
- Supports 18-bit grayscale processing and display.
- Manual screen brightness adjustment, which is fast and convenient.
- Quick screen configuration without using a computer.
- Adopts an innovative architecture to implement smart screen configuration, allowing a screen to be configured within 30 seconds and greatly shortening the stage preparation time.
- Adopts NovaStar G4 engine to realise a perfect display image with no flickering or scanning lines, as well as fine quality and good sense of depth.
- Supports a variety of video formats.
Specifications:

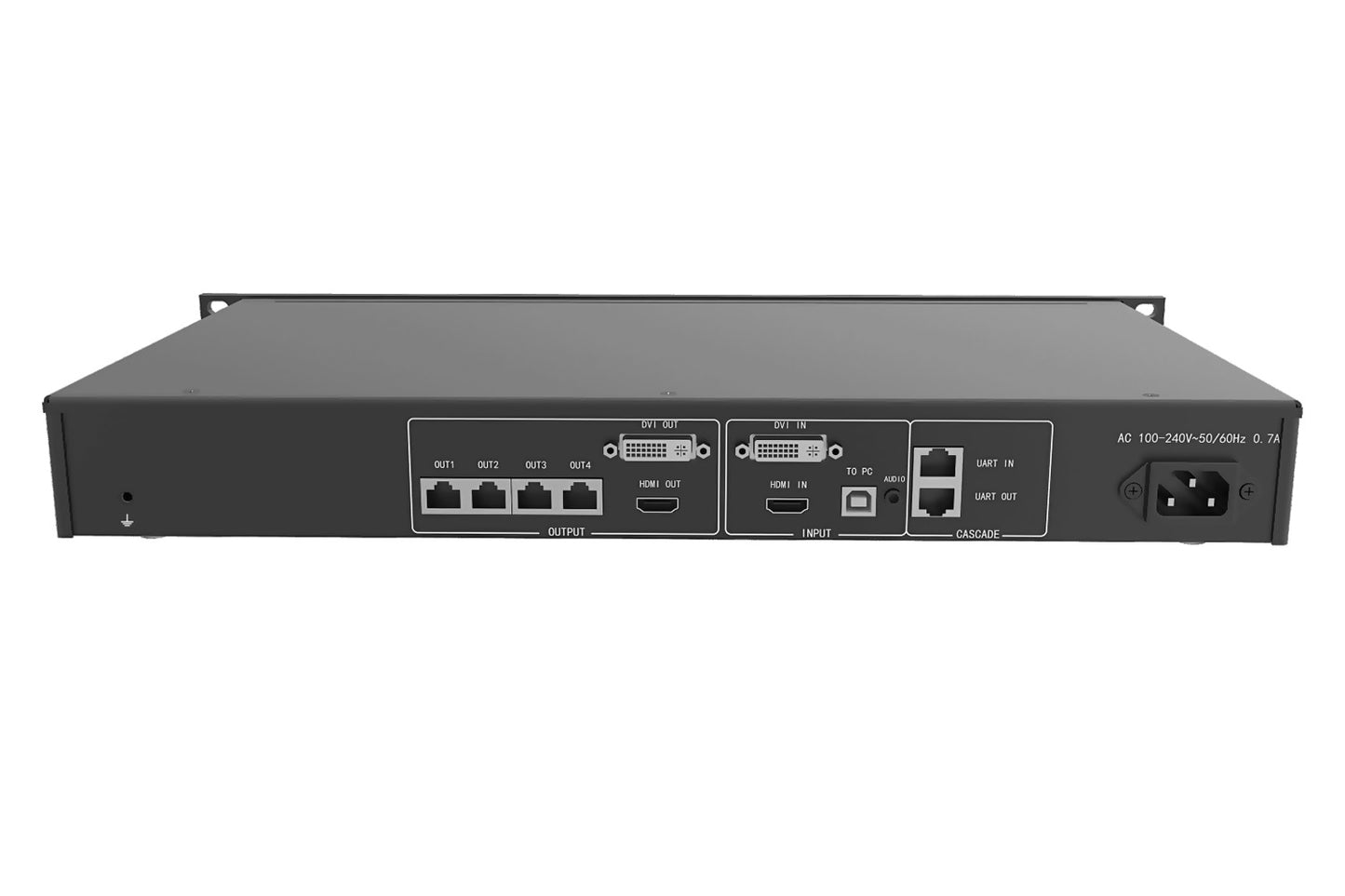

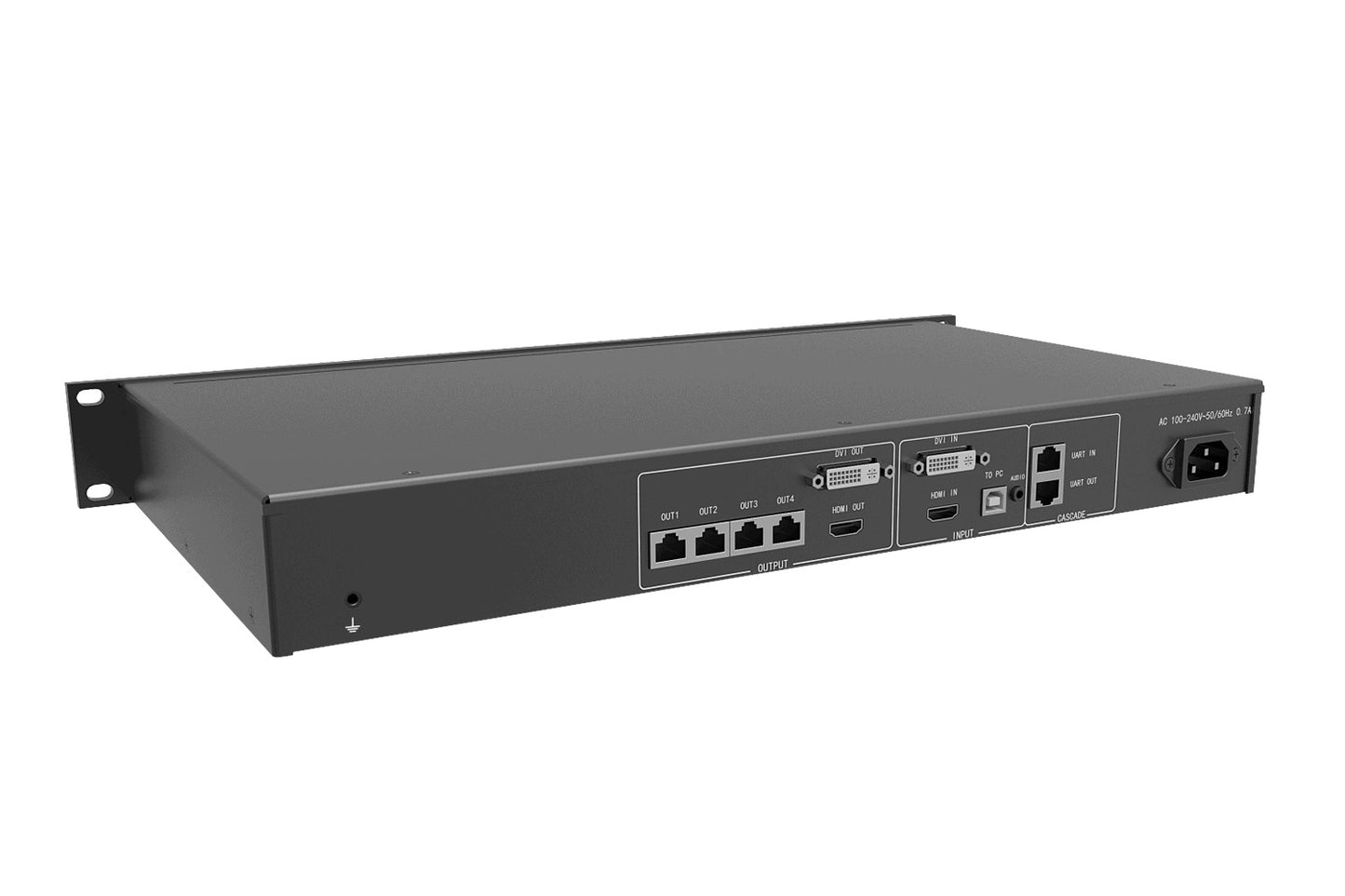

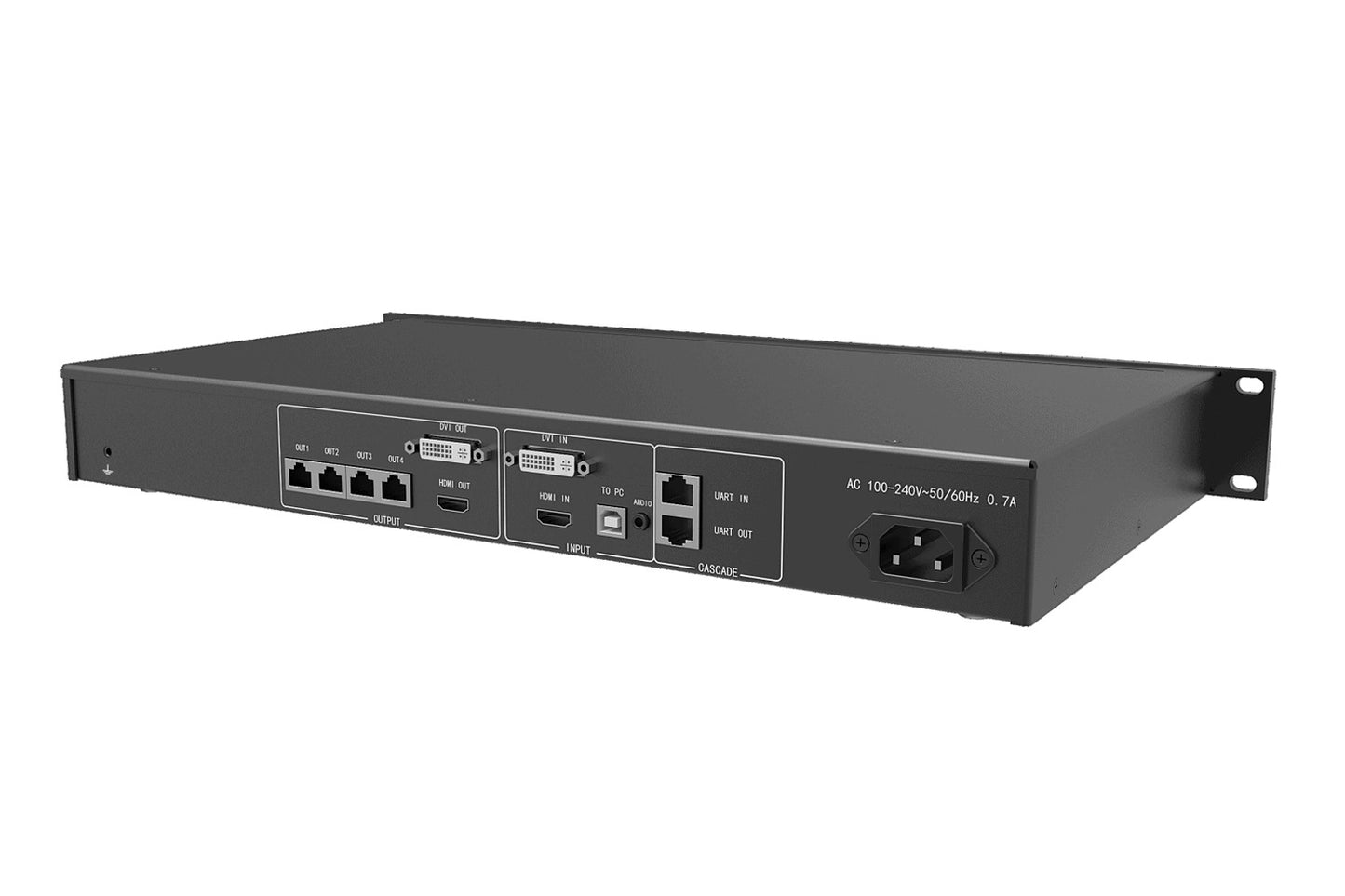

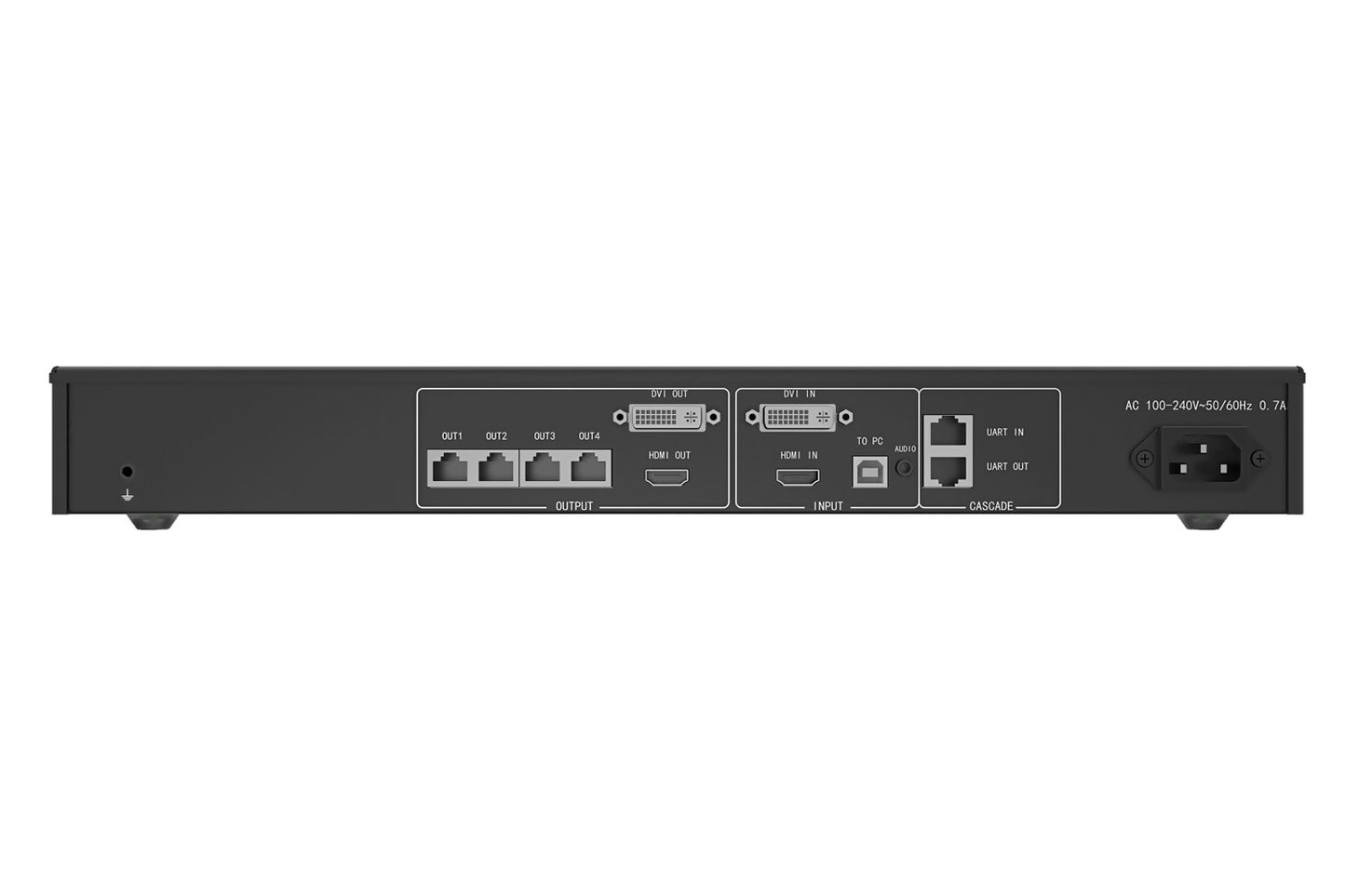

| Connector |
Connector Name |
Description |
| Input |
DVI IN |
Single-link DVI connector Resolution up to 1920×1200@60Hz and downward compatible Custom resolutions supported: Resolution with maximum width: 3840×600@60Hz Resolution with maximum height: 800×2560@60Hz |
| AUDIO |
Audio input connector |
| HDMI IN |
HDMI 1.3 compliant Resolution up to 1920×1080@60Hz and downward compatible Custom resolutions supported: Resolution with maximum width: 3840×600@60Hz Resolution with maximum height: 800×2560@60Hz l Support HDCP 1.4. |
| Output |
RJ45 × 4 |
4 Gigabit Ethernet outputs Maximum loading capacity of a single Ethernet port: 650,000 pixels Support redundancy between Ethernet ports. |
| Control |
TO PC |
Type-B USB port for connecting to PC |
| UART IN |
Input port for cascading devices |
| UART OUT |
Output port for cascading devices. Up to 20 controllers can be cascaded. |
| Power |
AC 100V~240V-50/60Hz |
