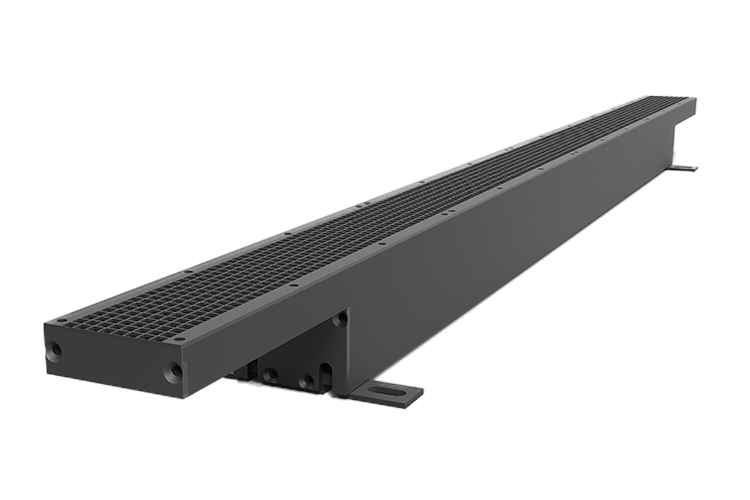

SKYLINEVS05 - Indoor Pixel Bar

Event Pixels


The SKYLINEVS05 Pixel Bar features bright SMD2727 LEDS and a frameless design, allowing for seamless splicing of images.

Module Information

  • LED Configuration: Full colour 3-in-1 SMD2727
  • Pixel Pitch (mm): 5
  • Pixel Density (dot/m2): 40,000
  • Module Size (mm)(W*H): 480*50
  • Module Resolution (pixels): 96*10
  • Driving Mode: Constant current, 1/8

Cabinet Information

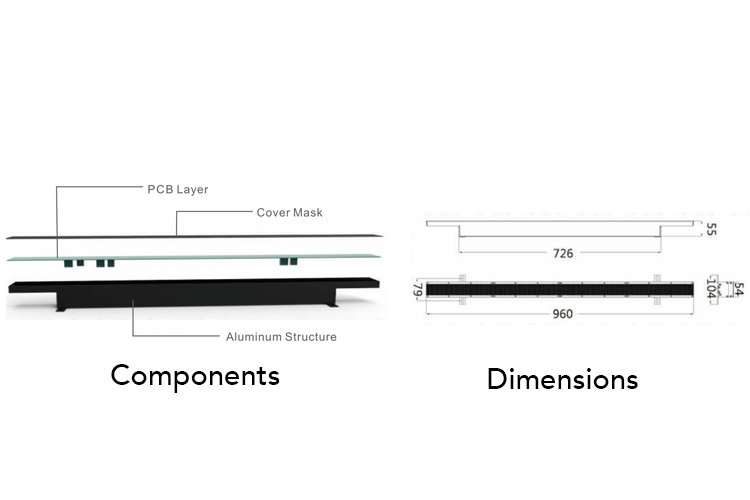

  • Cabinet Size (W*H*D)(mm): 960*55*55
  • Area (m2): 0.048
  • Cabinet Resolution: 192*10
  • Module Layout (W*H): 2*1
  • Cabinet Weight (kg): 2
  • Cabinet Material: Aluminium alloy
  • IP Rating: IP65/54
  • Signal Connection: Connector

Electrical Parameters

  • Power Input (V): AC100-240, 50/60Hz
  • Peak Power Consumption (W): 35
  • Average Power Consumption (W): 10

Image Processing

  • Grayscale (bit): 14
  • Frame Rate (Hz): 50/60
  • Refresh Rate (Hz): 1920
Optical Parameters
  • Colour Temperature (K): 3,000 - 10,000, adjustable
  • White Balance Brightness (nits): 5,000
  • Brightness Uniformity:  97%
  • Chromaticity Uniformity: within +/- 0.003 Cx, Cy
  • Contrast Ratio: 5000:1
  • Horizontal Viewing Angle: 140°
  • Vertical Viewing Angle: 140°
  • Calibration: Colour calibrated, brightness calibrated
  • Pixel Centre Offset: ≤ 3%

Operation and Storage Conditions

  • Operating Temperature (°C): -20 to 40
  • Storage Temperature (°C): -30 to 60
  • Operating Humidity (RH): 10% to 80%
  • Storage Humidity (RH): 10% to 85%
  • Lifespan (H): 80,000
